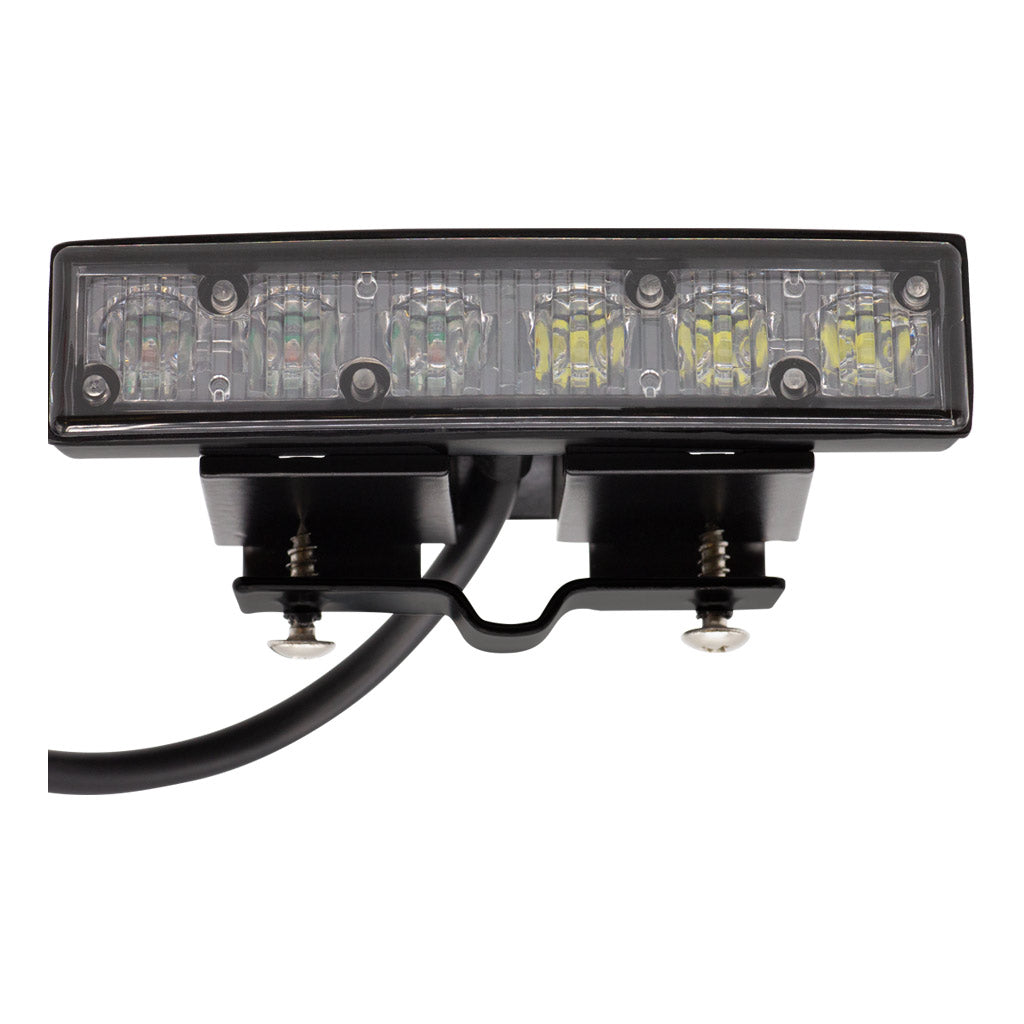

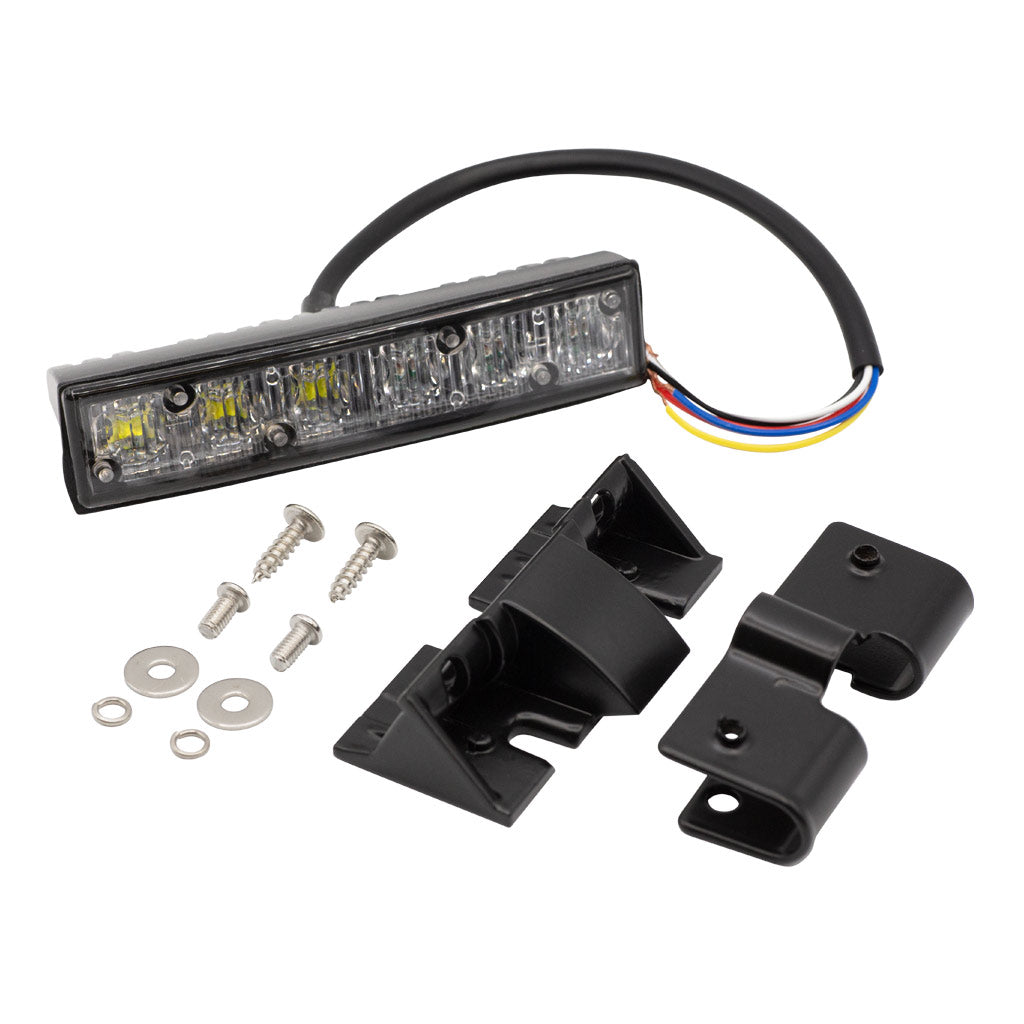

Grill mount LED strobe light. Does not require controller box; you can add / remove numbers of lights without having to worry about whether you have enough ports on a controller box. Will require on / off toggle switch (not included). Optional momentary switch may be used if it will be necessary to change flash patterns after install.
Available Colors:
Amber
White / Amber
Specifications:
Body Construction Material: Aluminum
Lens Material: Polycarbonate

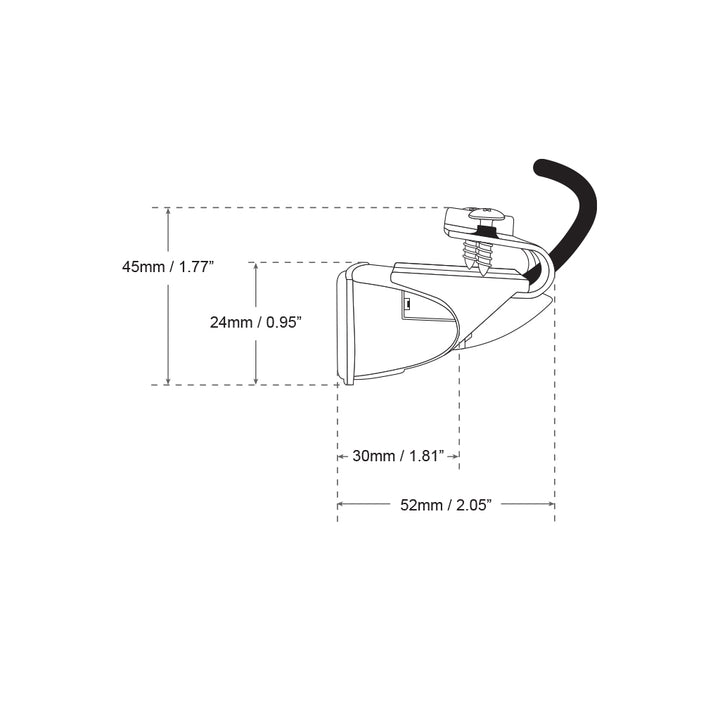

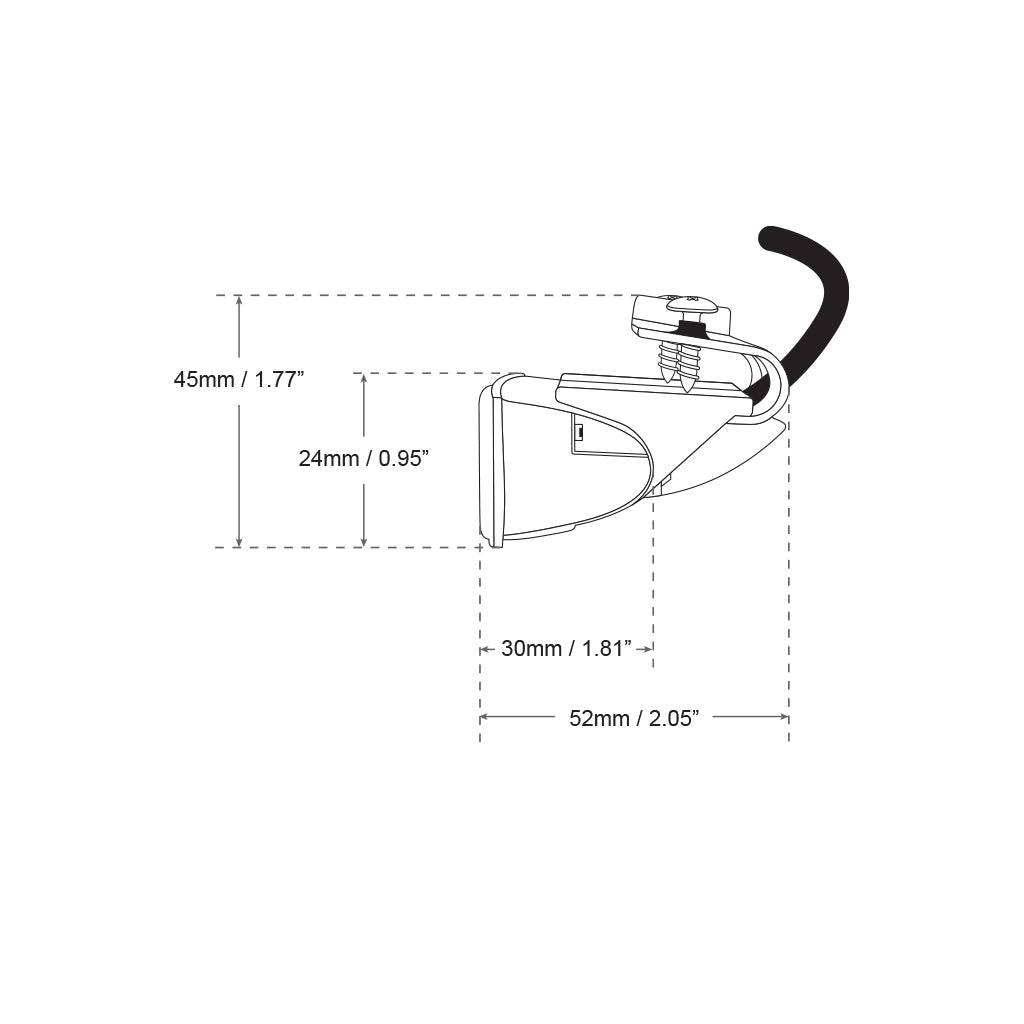

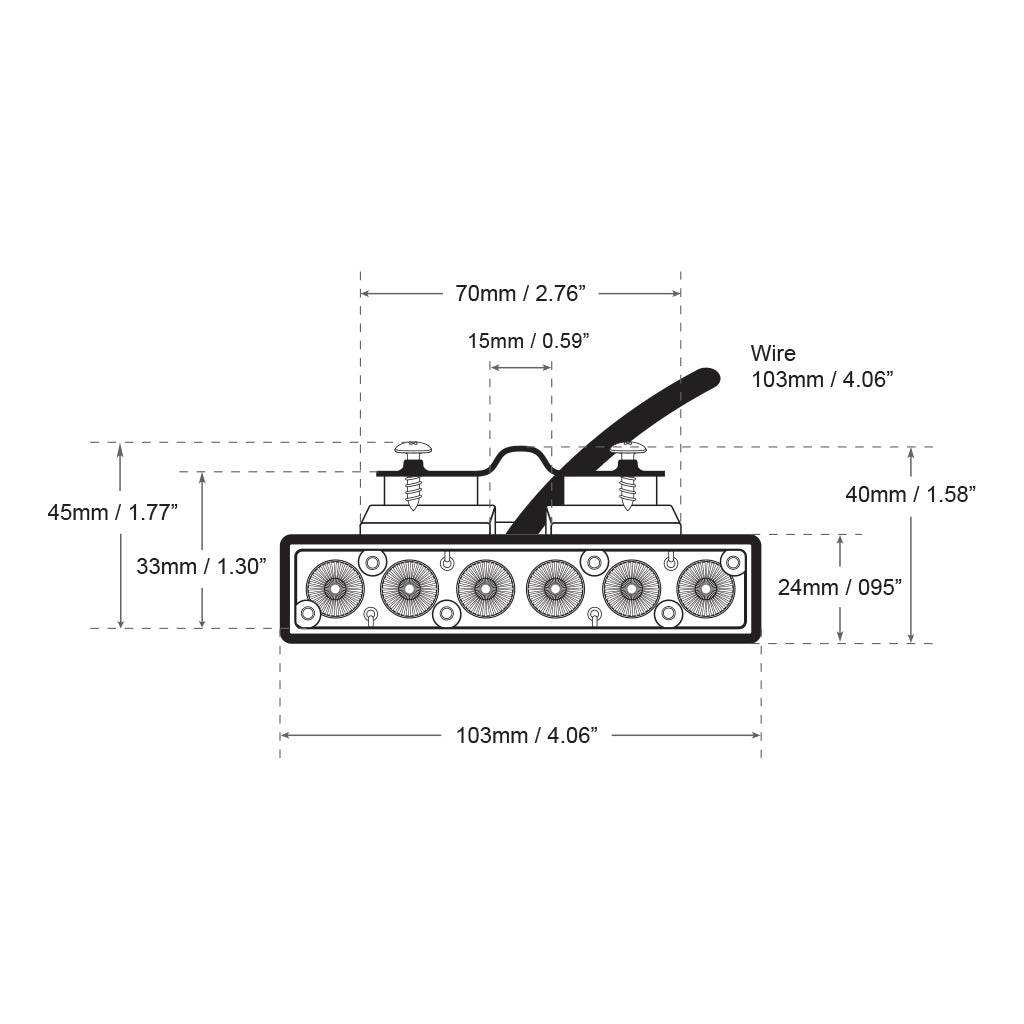

Depth: 30 mm / 1.19"
Height: 24 mm / 0.95"
Width: 103 mm / 4.06"
Input Draw (Normal): 0.5 A
Input Draw (Peak): 0.7 A
Input Voltage DC (Max): 24 V
Input Voltage DC (Min): 12 V
LED Chip Brand: Epistar
Individual LED Chip Power: 3 W
LED Chip Total: 6 Pc(s)
Flash Patterns: 16 Patterns
Total Power: 18 W
IP Rating: IP65
EMC (Reduction in radio noise): YES
Warranty: 1 Yrs
5 Wire System:
Red: Positive
Black: Negative
White: Ground signal for 1 sec to change flash pattern. Hold for 5 sec to change to steady burn (LEDs without flashing)
Blue: Wig Wag (when 2 separate light heads have this wire joined, they will alternate with the light is on and off)
