Sealed Beam Conversions

Jeep Sealed Beam Conversions

Great for Jeeps, classic cars, courier vans and vehicles with flip-up lights.

Sealed Beam Conversions

Replace OEM or aftermarket sealed beams. Convert your regular sealed beam to a LUMENS High Performance Lighting sealed beam halogen housing or LEDs.


DOT LED

LUMENS HPL DOT LED Sealed Beams

LED

LUMENS HPL LED Headlights

Halogen Housings

LUMENS HPL Headlight Halogen Housing


DOT LED Sealed Beam Replacements

LUMENS HPL DOT APPROVED LED sealed beam units provides maximum light output compared to traditional sealed beam units. The LED chips work with the projectors lenses in the unit that produces a light on the road that is unparalleled with any other type of sealed beam headlight. These units have passed DOT testing for quality and for light output and patterns. Most units advertised online are simply registered with DOT and not truly APPROVED.

LUMENS HPL DOT LED Sealed Beams
LUMENS HPL DOT LED 7

Item: SLD7PROJ

Size: 7" Round

Replaces: 6012, 6014, 6015, 6016, H6014, H6017, H6024

Item: SLD7PRBK

Size: 7" Round

Replaces: 6012, 6014, 6015, 6016, H6014, H6017, H6024

LUMENS HPL DOT LED 5

Item: SLD57PROJ

Size: 5 x 7"

Replaces: 6052, H4662, H6052, H6054, HP6054


LUMENS HPL Halogen sealed beam conversions-H4 bulb and ceramic connector

All halogen sealed beam conversions include an H4 bulb and ceramic connector. Ready for installation.

Sealed beam to Halogen Housing Conversions

Halogen converted sealed beam units will save money in the long run, as only the bulb inside the housing will be replaced (rather than the whole unit). Each housing includes a replacement H4 connector (in case the vehicle connector is corroded or worn down), and also an H4 halogen bulb. Light output is already improved with these units compared with traditional sealed beam units. These housings have clear lenses without any etching or lines that reduces the amount of light produced within the housing.

LUMENS HPL 7

Item: SL7P

Size: 7" Round

Replaces: 6012, 6014, 6015, 6016, H6014, H6017, H6024

LUMENS HPL 5

Item: SL5

Size: 5.75" Round

Replaces: 4000, 4001, 5001, H4001, H5001, H5006

LUMENS HPL 5

Item: SL57P

Size: 5 x 7"

Replaces: 6052, H4662, H6052, H6054, HP6054

LUMENS HPL 4

Item: SL46P

Size: 4 x 6"

Replaces: H4651, H4652, H4656, H6662, H4666, H4668, H6545


LED Sealed Beams (non DOT)

These LED sealed beam units provides substantially greater light output compared to traditional sealed beam units. Great for off-road industrial use. More economical than the DOT LED sealed beams. Not recommended for use on public roads.

LUMENS HPL LED Sealed Beams
LUMENS HPL 5.75

Item: SLD5

Size: 5.75" Round

Replaces: 4000, 4001, 5001, H4001, H5001, H5006

LUMENS HPL 5

Item: SLD57

Size: 5 x 7"

Replaces: 6052, H4662, H6052, H6054, HP6054

LUMENS HPL 4

Item: SLD46

Size: 4 x 6"

Replaces: H4651, H4652, H4656, H6662, H4666, H4668, H6545


LUMENS HPL Sealed Beam Conversion Accessories

Additional Accessories

Additional accessories may be required for the installation of these sealed beam housings. These accessories may be needed if these lights are daytime running lights, or if the vehicle is CANBUS, or if the vehicle has bulb out indicators. Additional mounting hardware may be required for some vehicles (Harley brackets).

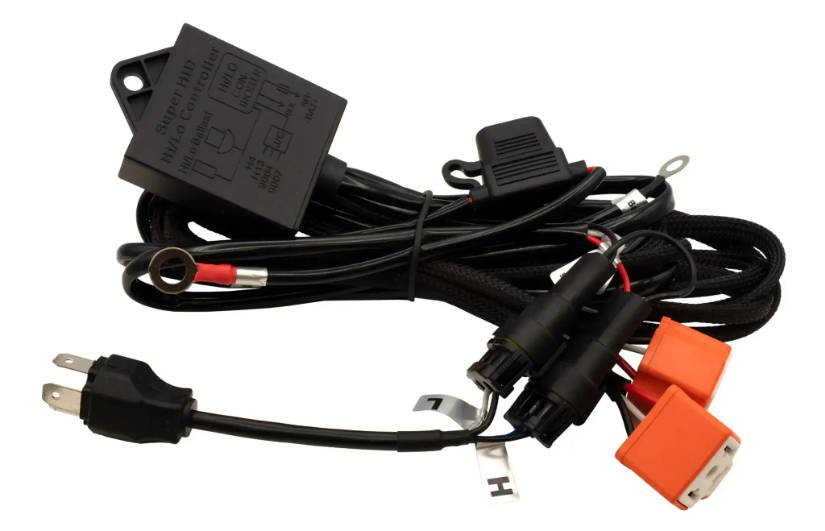

LUMENS HPL Sealed Beam Conversion Accessories - SLDHH4

Item: SLDHH4

Harness to overcome low voltage DRL issues

LUMENS HPL Sealed Beam Conversion Accessories - RES3

Item: RES3

Resistors to overcome bulb out indicators and CANBUS

LUMENS HPL Sealed Beam Conversion Accessories - CH4

Item: CH4

Adapter to use RES3 on open vehicle socket

LUMENS HPL Sealed Beam Conversion Accessories - SLD7BRAK

Item: SLD7BRAK

7" Round Mounting Bracket for Harley Davidson
