LUMENS HPL ULTRA LED Conversions

Next generation LED lights provide comparable light output to Xenon HID Conversions without the glare. More than twice the brightness of halogens. Recommended for reflector headlights.

Instantly on to full brightness without any warm up times.

Plug n' Play design minimizes the need for harnesses & larger resistors to be used during installs.

One piece unibody core alone provides optimal heat dissipation from LEDs.

Does not cause static in the radio.

Optional harnesses and resistors are available for extremely sensitive vehicles.


Advantages of the ULTRA Design

The alignment of LEDs replicate that of a halogen bulb to achieve optimal focal light pattern in a reflector housing.

Using an unibody to dissipate heat directly from the LEDs keeps LEDs cool for longer lifespan.

Bendable aluminum bands allow for easy installation in tight spaces. In a lot of vehicles, there is limited space behind the bulb for installation. Many larger heatsinks or fan based bulbs will not fit into the vehicle properly.

Solid aluminum bands will not corrode with time.

LED drivers produces heat. For this reason, we choose to keep our driver and bulb 2 separate pieces. Our mini external driver keeps heat away from LED chips.

Having the driver a separate component from the bulb also allows for the bulb to be as small as possible for installation purposes, as a lot of vehicles don't have much space behind the bulb for a large fan or heatsink.


Identifying Projector vs Reflector Headlights

A projector headlight has a glass dome lens in it that provides even light distribution. The bulb inside / behind the glass dome is not visible. For best results in projector headlights, we recommend using our Sportline LEDs.

A reflector housing has a mirrored backing that distributes the light from the light bulb. It may have a shroud inside that covers the tip of the bulb. The bulb inside should be visible. For best results in reflector headlights, we recommend using our ULTRA LEDs.


Direct comparison with halogen bulb size

1. Overall distance from base of bulb to outer edge of bulb is the similar to the halogen counterparts (particulary on 9005, 9006, H11 bulb types that may not have extra room behind them for installs)

2. Diameter of the bulb head is the same or smaller than it's halogen counterpart to ensure it will fit into the housing (particularly on H3, H1, and 800 bulb applications)

3. Length of bulb head is similar to the glass length on a halogen bulb to avoid situations where the bulb is too long to fit in the housing.


6000K Powered by Lumileds ZES Chips

• Up to 4000lm per Bulb

• Unparalled Color Consistency

• Improved Flux Density

• Micro footprint allows closer replication of halogen filament


3000K Yellow Chips Available

• Sharp JDM / Euro Yellow

• Functional color, providing best visibility in fog, snow, and rain

• Yellow is achieved without any covers that limits air flow around led chips, which in turn shortens the life of the leds. Light output is not reduced by additional covers / shrouds

LUMENS HPL Yellow ULTRA LED

Specifications

• LED Qty: 6 pc on single beam, 12 pc on dual beam bulbs
• LED Power: 35W per bulb
• Current: 2.8 ± 0.2A
• Voltage: 6 - 18V
• Raw Light Output: up to 4000lm / 5600lx
• Working Temp: -40°C ~ +80°C
• Body Material: 6063 Aluminum
• Colour Temperature: 6000K Pure White or 3000K Yellow

CONTENTS:

• 1 x LED Bulb with driver
• 1 x 2-Sided Tape
• 1 x Tie-strap


LUMENS HPL Smart Boxes_ULTRA LED Smart Box

Smartbox

This is a plug and play accessory that is sold separately. This device is used to:

• Turn off 'light out' warning indicators
• Complete a series wiring circuit
• Stop LEDs from flickering or turning on and off, due to the vehicle's computer thinking a light bulb is missing
• Other CANBUS related issues caused from converting halogens to ULTRA LEDs

*** Will not increase voltage or current for daytime running lights under 6V

V1 - Recommended For

• Ford / Lincoln
• Hyundai
• Kia

V2 - Recommended for:

• Audi
• BMW
• Chrysler
• Dodge

• Jeep
• Mercedes Benz
• Mini

• Porsche
• Volkswagon
• Volvo


Other Special Parts

Some vehicles may require special parts including:

• Bulb Holders (affects H7 & H1 bulbs)

• Harnesses (for daytime running light circuits under 6V)

• Resistors (for use with harnesses)

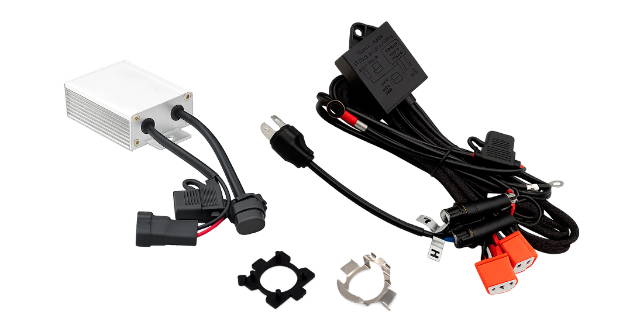

LUMENS HPL ULTRA LED Special Parts_Bulb holder, Harness, Resistor

Rubber Dust Cover Seal

Although our LED bulbs are designed to fit into headlight housings with dust covers, we still offer universal round rubber dust covers that adds extra depth beyond the factory dust cap.

Available in different diameters (100mm, 95mm, 83mm, 75mm)


Available Bulb Types and Cross References
