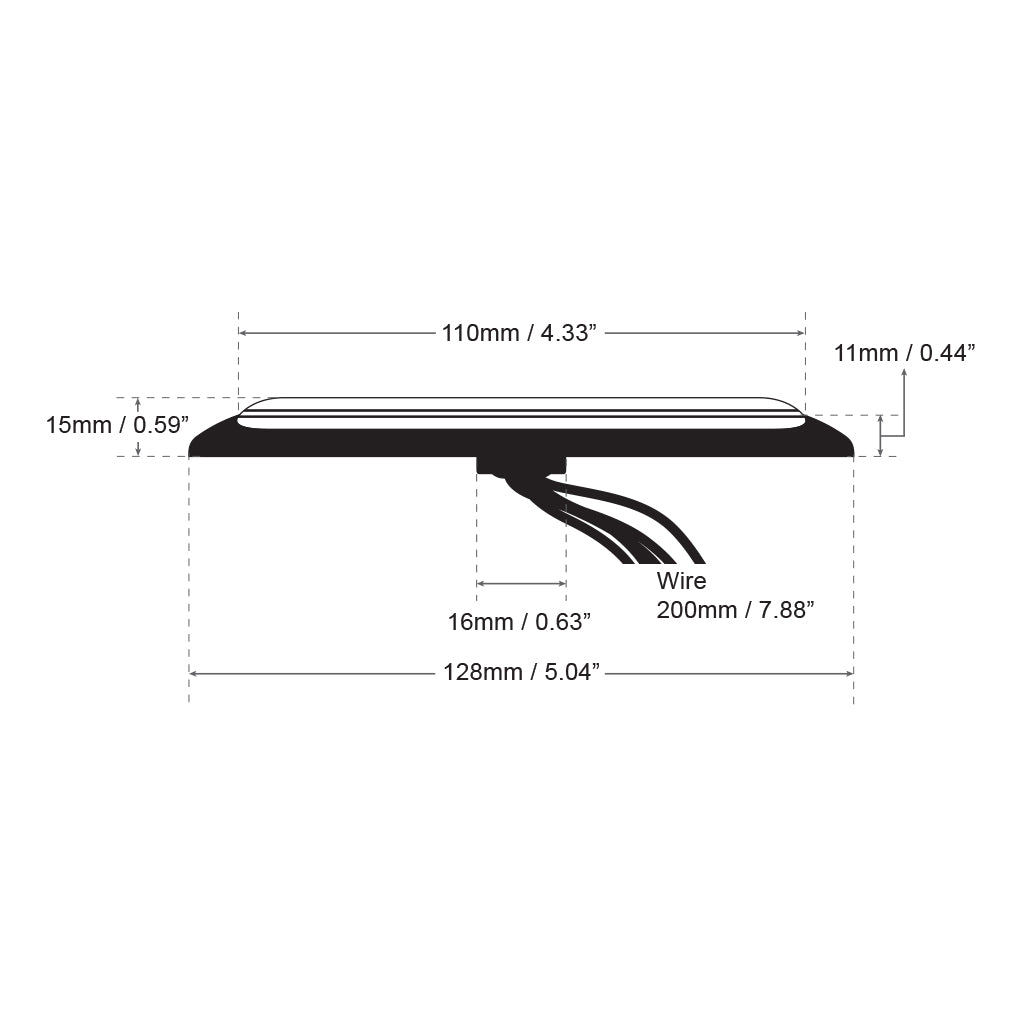

STRLD36WA - Measurement2 by LUMENS High Performance Lighting (HPL)
STRLD36WA - Measurement3 by LUMENS High Performance Lighting (HPL)

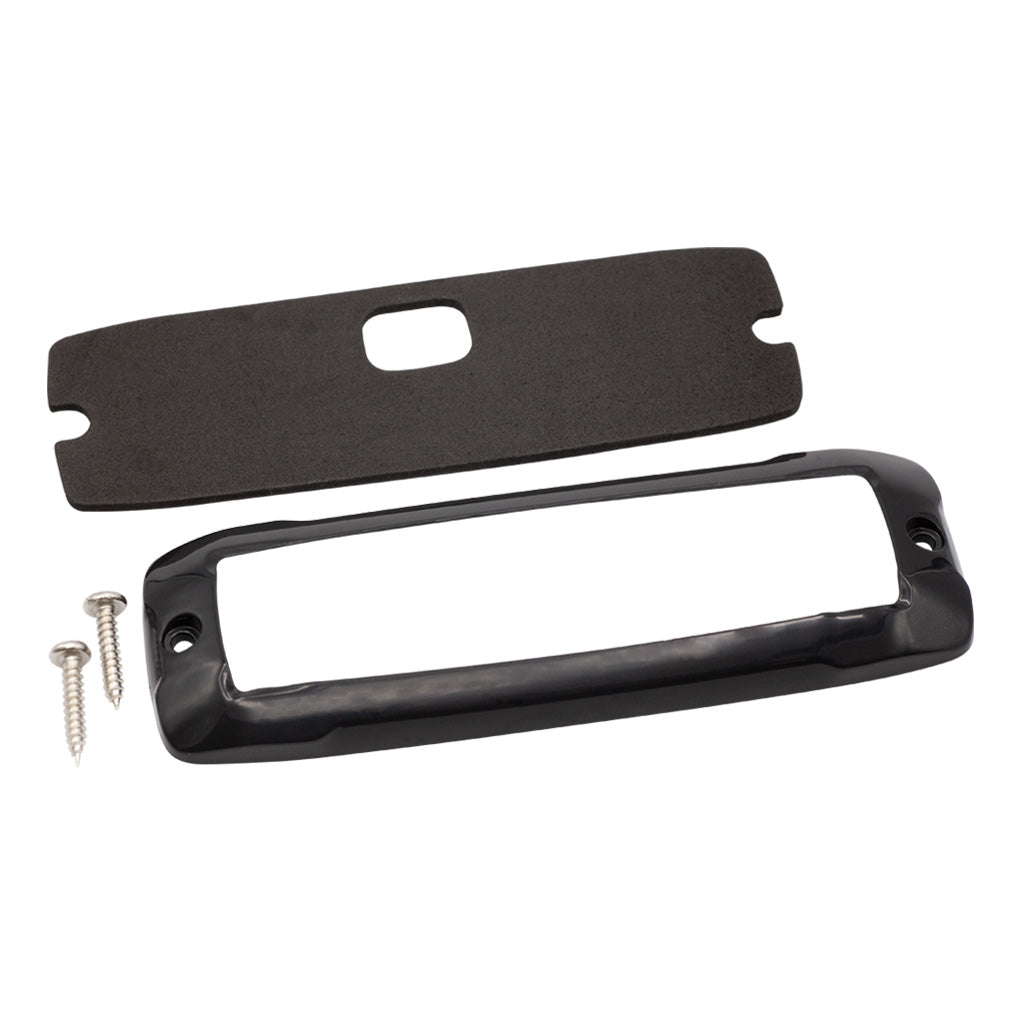

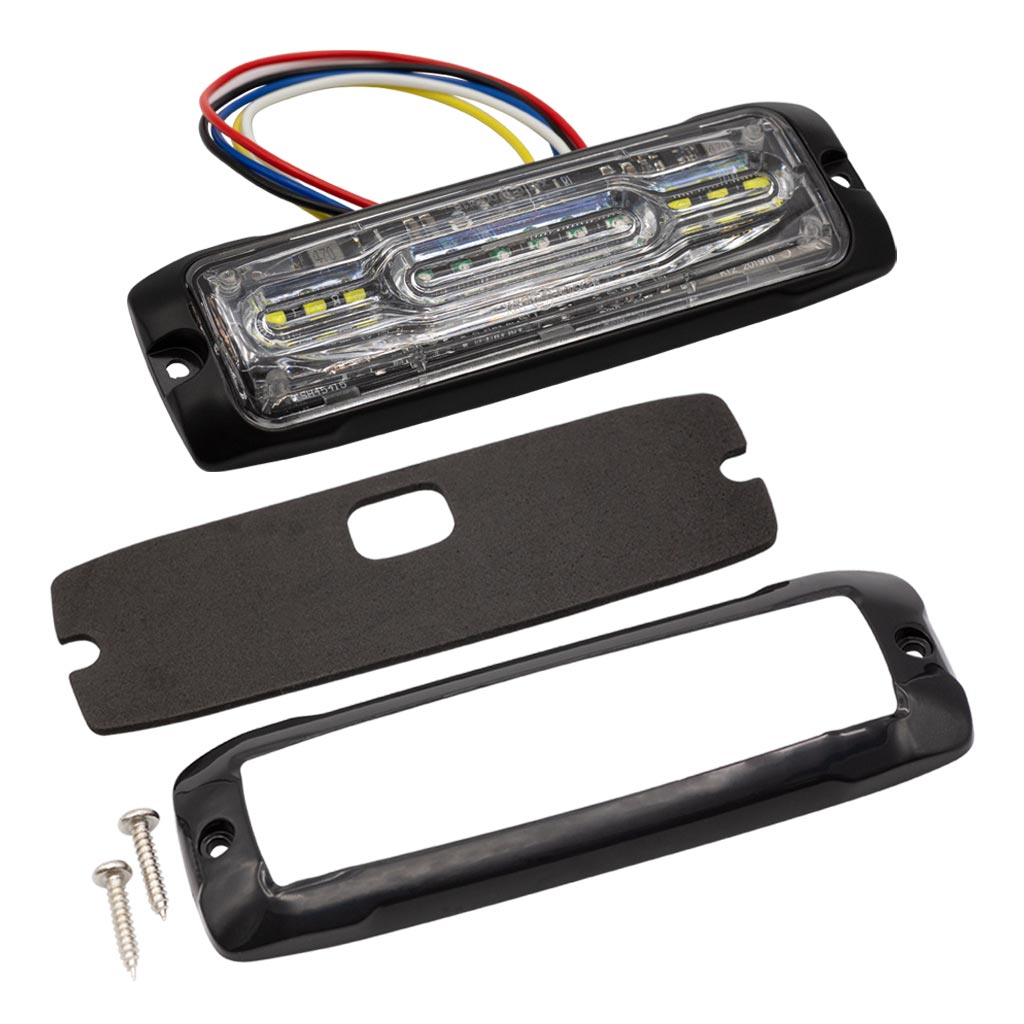

STRLD36WA - Parts_included by LUMENS High Performance Lighting (HPL)

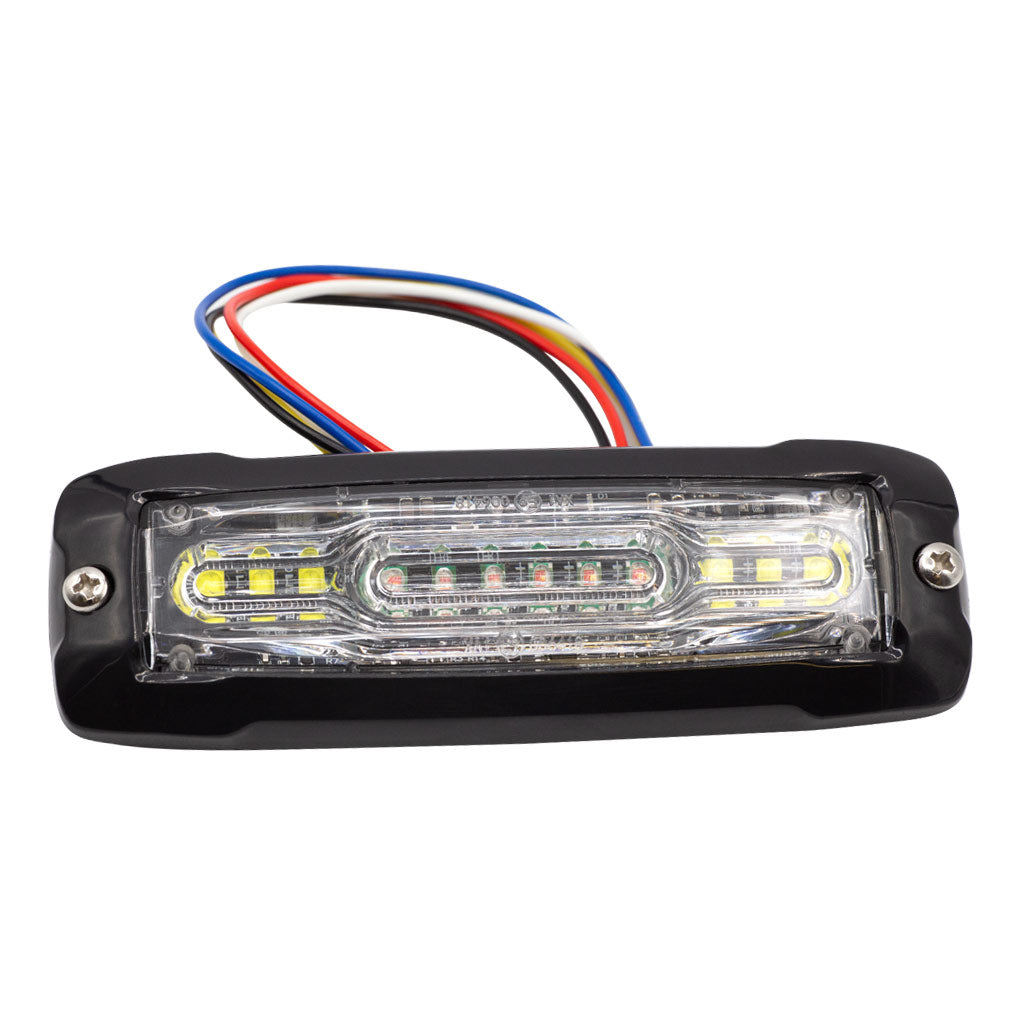

STRLD36WA - Unmounted1 by LUMENS High Performance Lighting (HPL)

36W Slim Surface Mount LED Strobe Light by LUMENS HPL

STRLD36WA

Regular price $79.99 CAD Save $-79.99
20 in stock

Slim / low profile LED strobe light. Does not require controller box; you can add / remove numbers of lights without having to worry about whether you have enough ports on a controller box. Will require on / off toggle switch (not included). Optional momentary switch may be used if it will be necessary to change flash patterns after install.

Available Colors:
  • Amber
  • White / Amber

Specifications:

  • Body Construction Material: Aluminum
  • Lens Material: Polycarbonate
  • Depth: 11 mm / 0.44"
  • Height: 42 mm / 1.66"
  • Width: 128 mm / 5.04"
  • Input Draw (Normal): 0.5 A
  • Input Draw (Peak): 0.7 A
  • Input Voltage DC (Max): 24 V
  • Input Voltage DC (Min): 12 V
  • LED Chip Brand: Epistar
  • Individual LED Chip Power: 3 W
  • LED Chip Total: 12 Pc(s)
  • Flash Patterns: 16 Patterns
  • Total Power: 36 W
  • IP Rating: IP68
  • EMC (Reduction in radio noise): YES
  • Warranty: 1 Yrs
  • Wire Length: 200 mm / 7.88"

5 Wire System:

  1. Red: Positive
  2. Black: Negative
  3. White: Ground signal for 1 sec to change flash pattern. Hold for 5 sec to change to steady burn (LEDs without flashing)
  4. Blue: Wig Wag (when 2 separate light heads have this wire joined, they will alternate with the light is on and off)
  5. Yellow: Synchronize
