4in x 6in DOT LED Projector Sealed Beam - Chrome (Each)

SLD46DOTCH

$199.99
/
Shipping calculated at checkout.
Important Note
  • If the vehicle's original headlamp circuit also functions as a daytime running light (DRL), the SLDHH4 harness is required for proper operation. In some applications, an RES3 resistor may also be required.

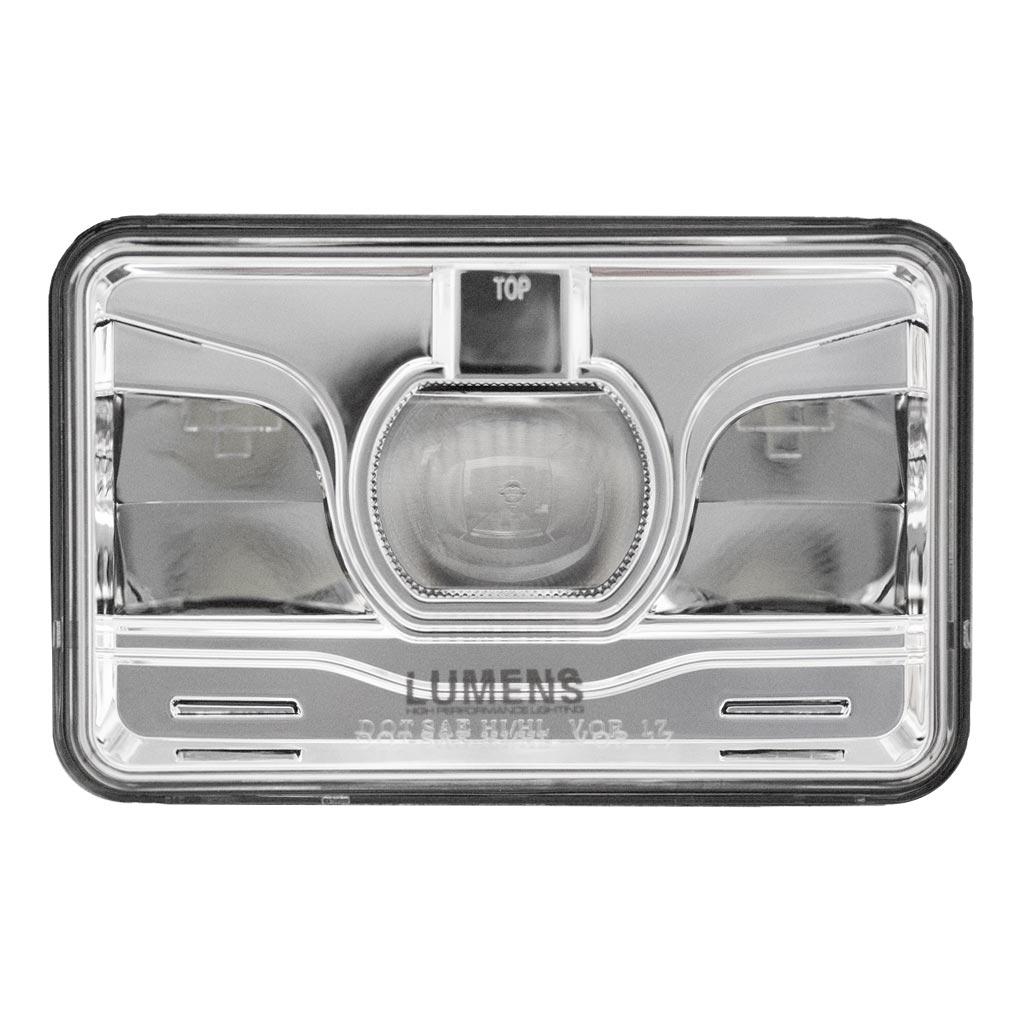

The LUMENS HPL SLD46DOT is a 4x6-inch DOT-compliant LED sealed beam headlight designed as a direct replacement for compatible traditional sealed beam units. Featuring integrated LED chips and projector optics, the assembly delivers a controlled beam pattern and effective light distribution for improved forward visibility. The complete LED assembly replaces the original sealed beam unit, providing instant full brightness, reduced power consumption, and a modern white light appearance. Designed and tested to meet applicable DOT requirements for light output and beam pattern, the SLD46DOT offers a straightforward LED lighting upgrade for compatible sealed beam headlight applications.

Features:

  • Replaces 4in x 6in Sealed Beam Headlamps
  • More than 3 times brighter than original sealed beam lights!
  • Projector Lens provides the perfect beam pattern and light distribution
  • Retains true low and high beam patterns
  • Hard Coated Poly Carbonate Lens for increased durability
  • Rugged Die-cast Aluminum Body
  • Reduced radio interference with EMC circuitry
  • DOT APPROVED: For vastly improved visibility at night, yet remaining street legal
  • Body Construction Material: Aluminum (Die Cast)
  • Lens Material: Polycarbonate
  • Reverse Polarity Capable: YES
  • Input Voltage (Max): 32 V
  • Input Voltage (Min): 9 V
  • LED Chip Brand: Cree
  • Individual LED Chip Power: 10 W
  • LED Chip Total: 6 Pc(s)
  • Color Temperature: 6000 K
  • Total Effective Light Output: 1300 lm
  • Total Raw Light Output: 4000 lm
  • High Beam Power: 40 W
  • Low Beam Power: 20 W
  • Total Power: 40 W
  • IP Rating: IP67
  • EMC (Reduction in radio noise): YES
  • RoHS Compliant: YES
  • DOT Approved: YES
  • SAE Approved: YES
  • 2E1
  • H4651
  • H4652
  • H4656
  • H4662
  • H4666
  • H4668
  • H4701
  • H4703
  • H6545

1 Year Limited Warranty
