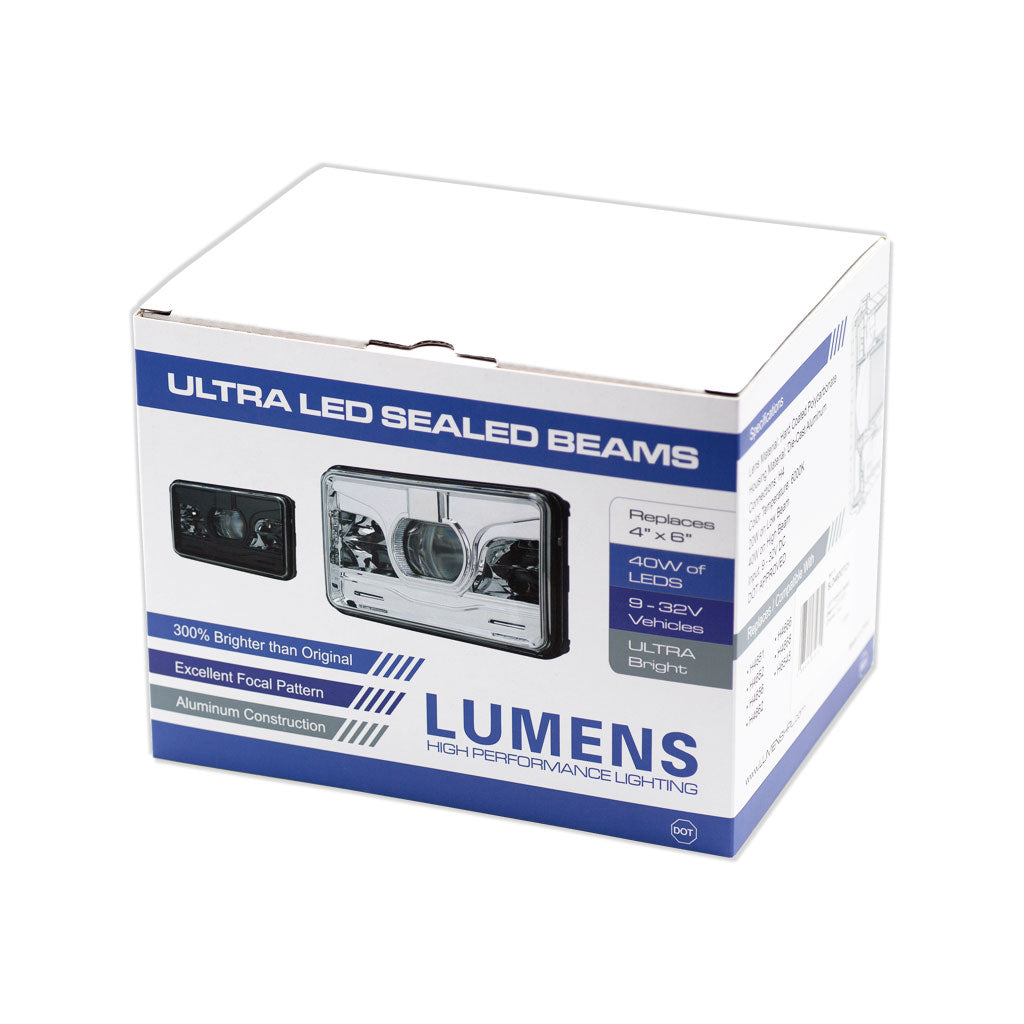

SLD46DOTCH - In_Package by LUMENS High Performance Lighting (HPL)

LED Projector Sealed Beam 4 x 6" DOT by LUMENS HPL

SLD46DOTCH

Regular price $199.99 CAD Save $-199.99
16 in stock

**Note: If sealed beam unit operates as a daytime running light (DRL), an additional harness will be required: SLDHH4

LUMENS HPL DOT APPROVED LED sealed beam units provides maximum light output when compared with traditional sealed beam units.  The LED chips work together with the projectors lenses, producing unparalleled light output on the road vs similar items.  These units have passed DOT testing for quality, light output and beam patterns.  Most units advertised online are simply registered with DOT and not truly APPROVED.

Features:

  • DOT APPROVED: For vastly improved visibility at night, yet remaining street legal
  • Replaces 4" x 6" Sealed Beam Headlamps
  • More than 3 times brighter than original sealed beam lights!
  • Projector Lens provides the perfect beam pattern and light distribution
  • Retains true low and high beam patterns
  • Hard Coated Poly Carbonate Lens for increased durability
  • Rugged Die-cast Aluminum Body
  • Reduced radio interference with EMC circuitry

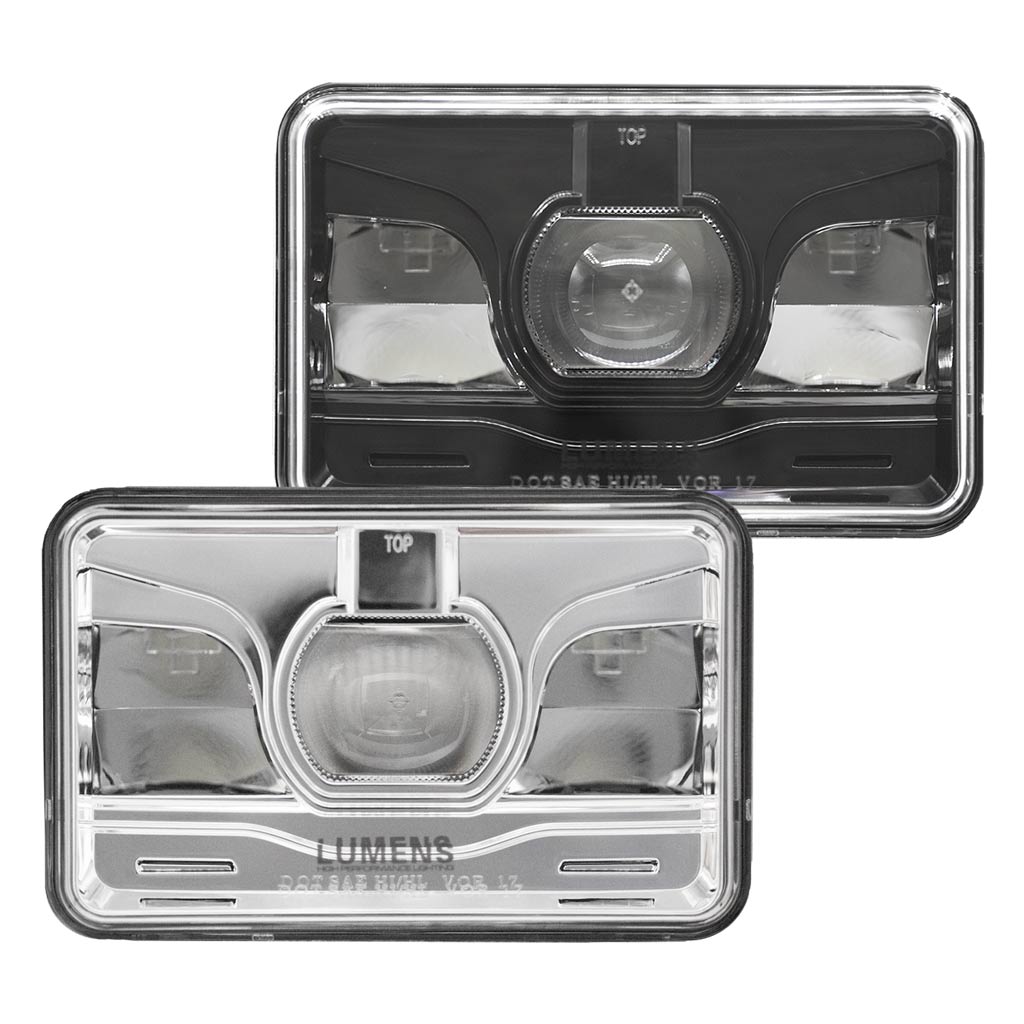

Available Colors:

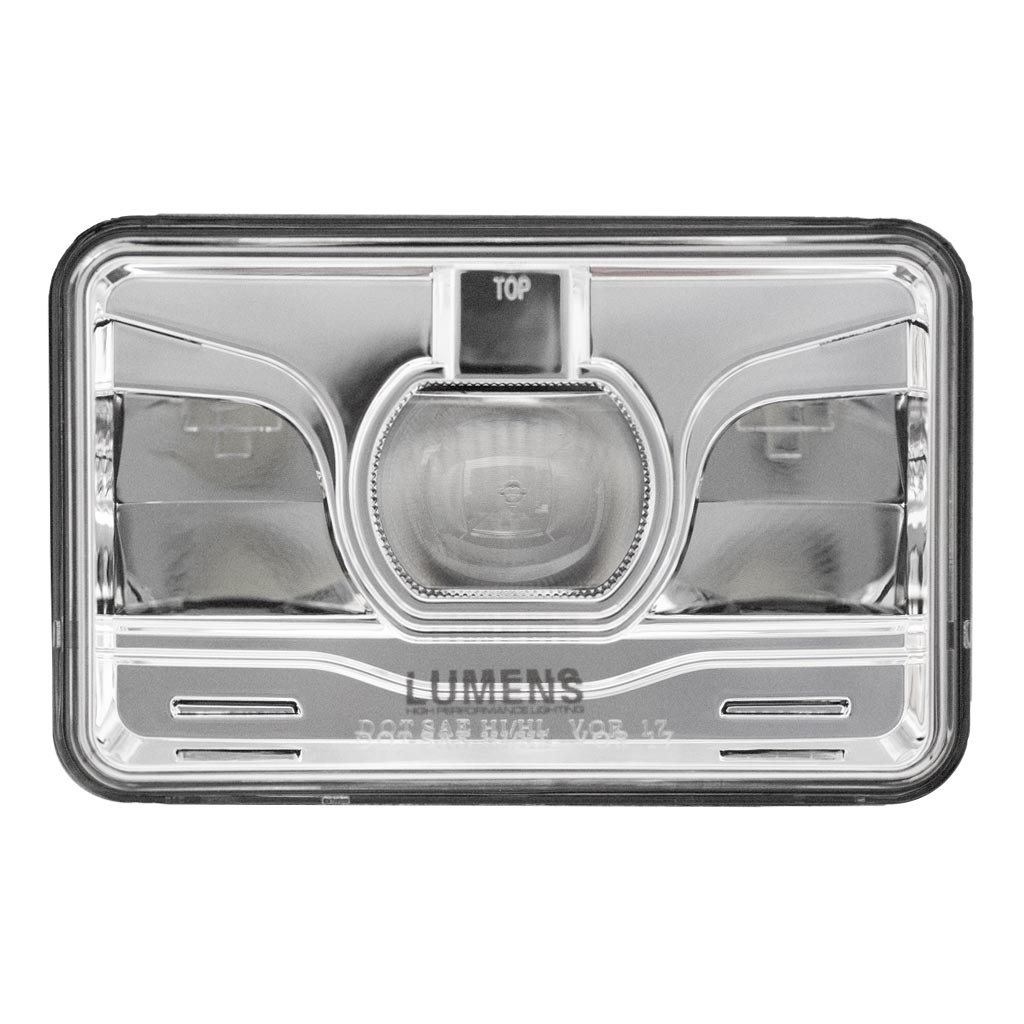

  • Chrome

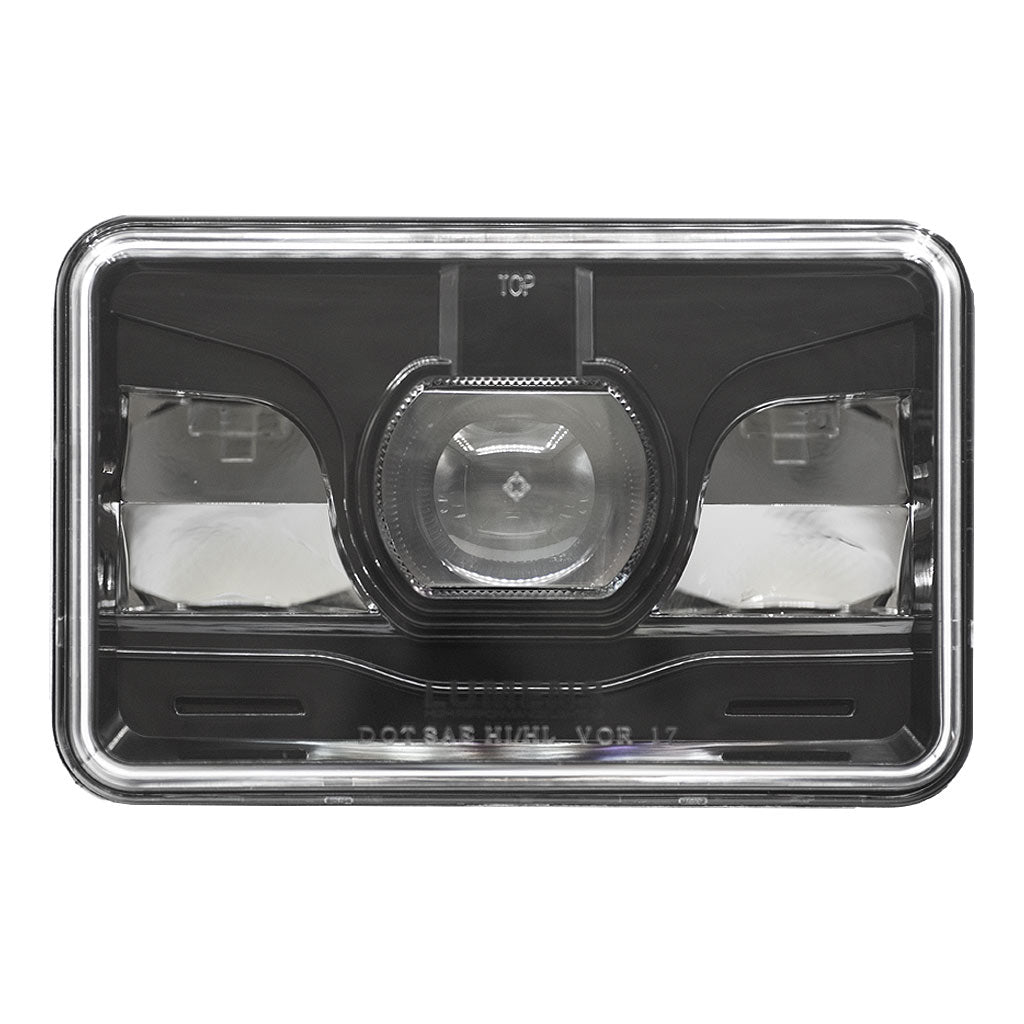

  • Black

Bulb Cross References:

  • H4651
  • H4652
  • H4656
  • H4662
  • H4666
  • H4668
  • H6545

Specifications:

  • DOT Approved: YES
  • SAE Approved: YES
  • Body Construction Material: Aluminum (Die Cast)
  • Lens Material: Polycarbonate
  • Reverse Polarity Capable: YES
  • Input Voltage (Max): 32 V
  • Input Voltage (Min): 9 V
  • LED Chip Brand: Cree
  • LED Chip Total: 6 Pc(s)
  • Color Temperature: 6000 K
  • Total Effective Light Output: 1300 lm
  • Total Raw Light Output: 4000 lm
  • High Beam Power: 40 W
  • Low Beam Power: 20 W
  • Total Power: 40 W
  • IP Rating: IP67
  • EMC (Reduction in radio noise): YES
  • Warranty: 1 Yrs
