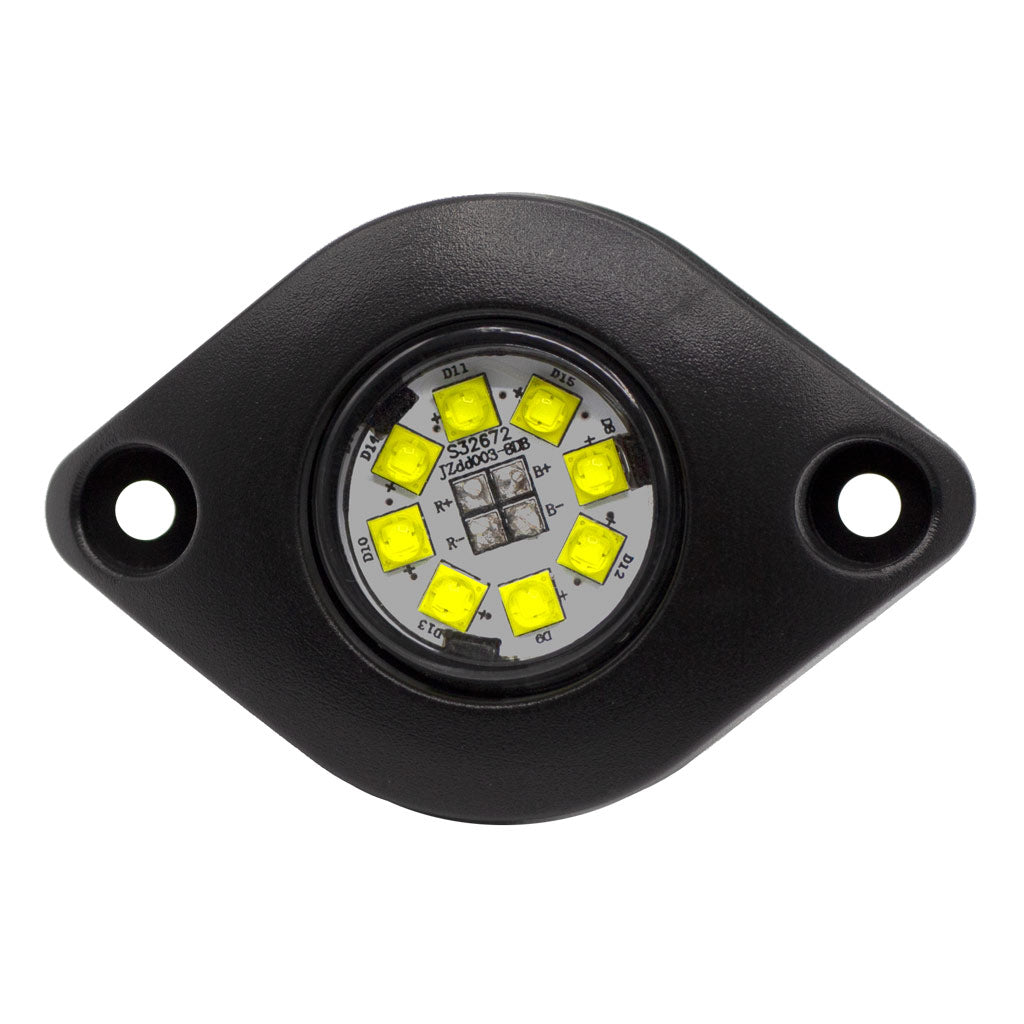

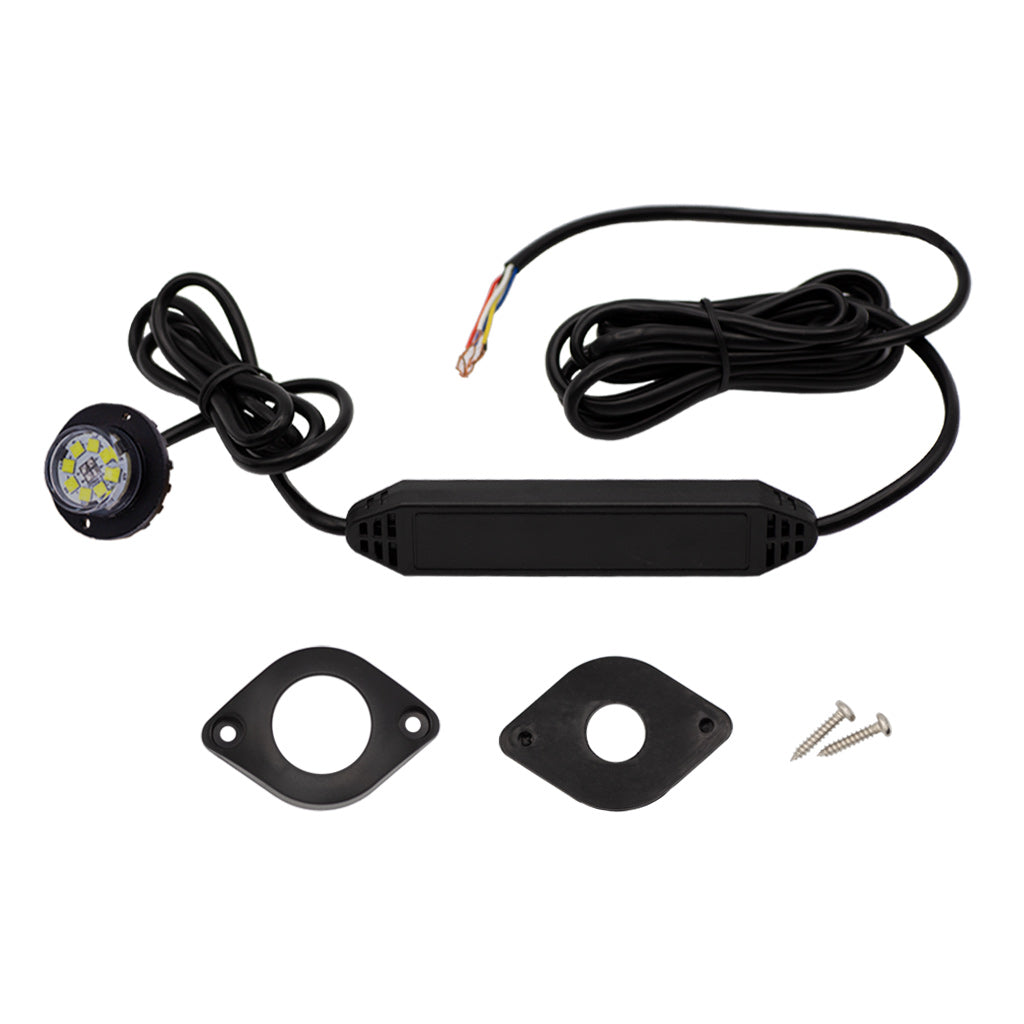

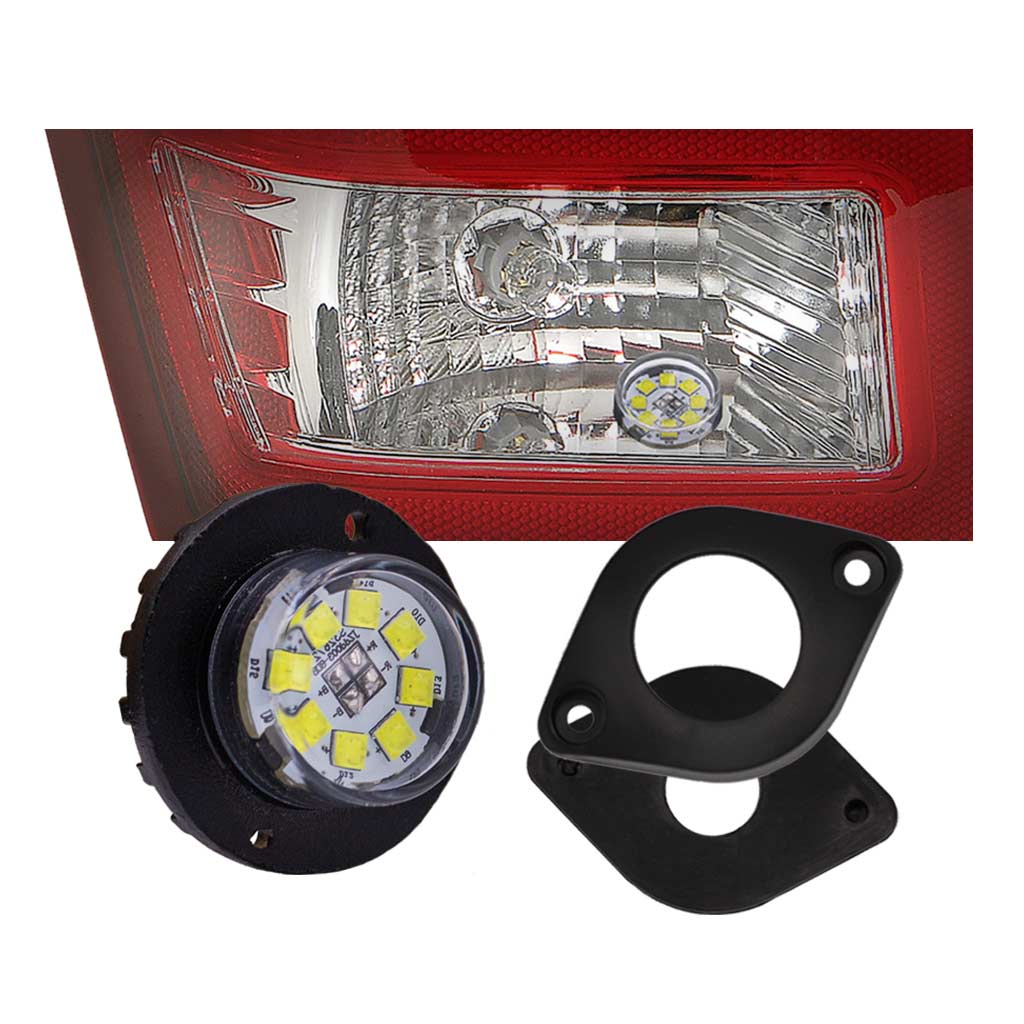

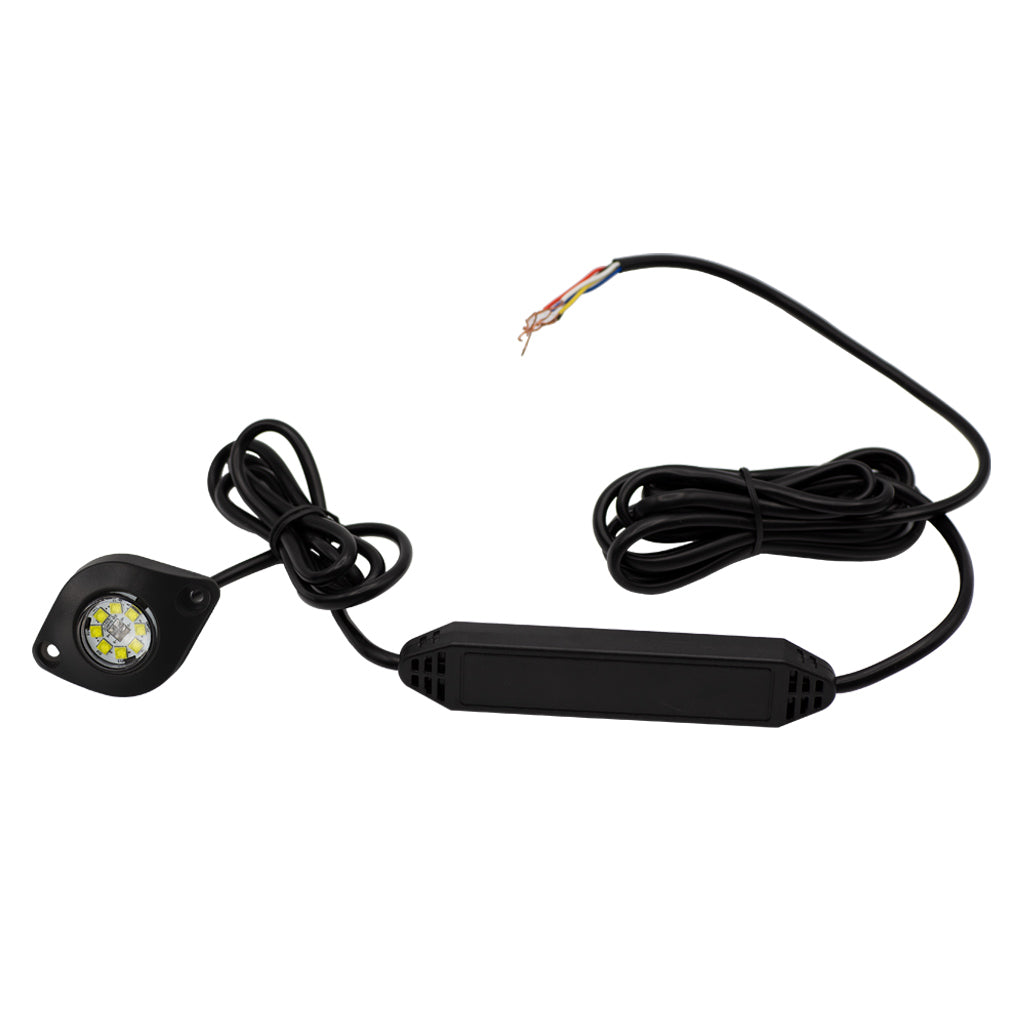

The LUMENS HPL POD Style Strobe Lighthead is a small and self contained LED light for surface mount or internal mount within composite head lamps, cornering lamps and taillights. Two screws mount the lamp securely in place vertically or horizontally. Includes a black bezel for attractive mounting on any flat surface. For mounting in head lamp or tail lamp, a 1” hole would be drilled into the housing. Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance. Simple installation with no separate lamp drivers, flashers, ballast or power supplies to install.
Available in amber, blue, green, white, white/amber, and blue/amber.
Specifications:

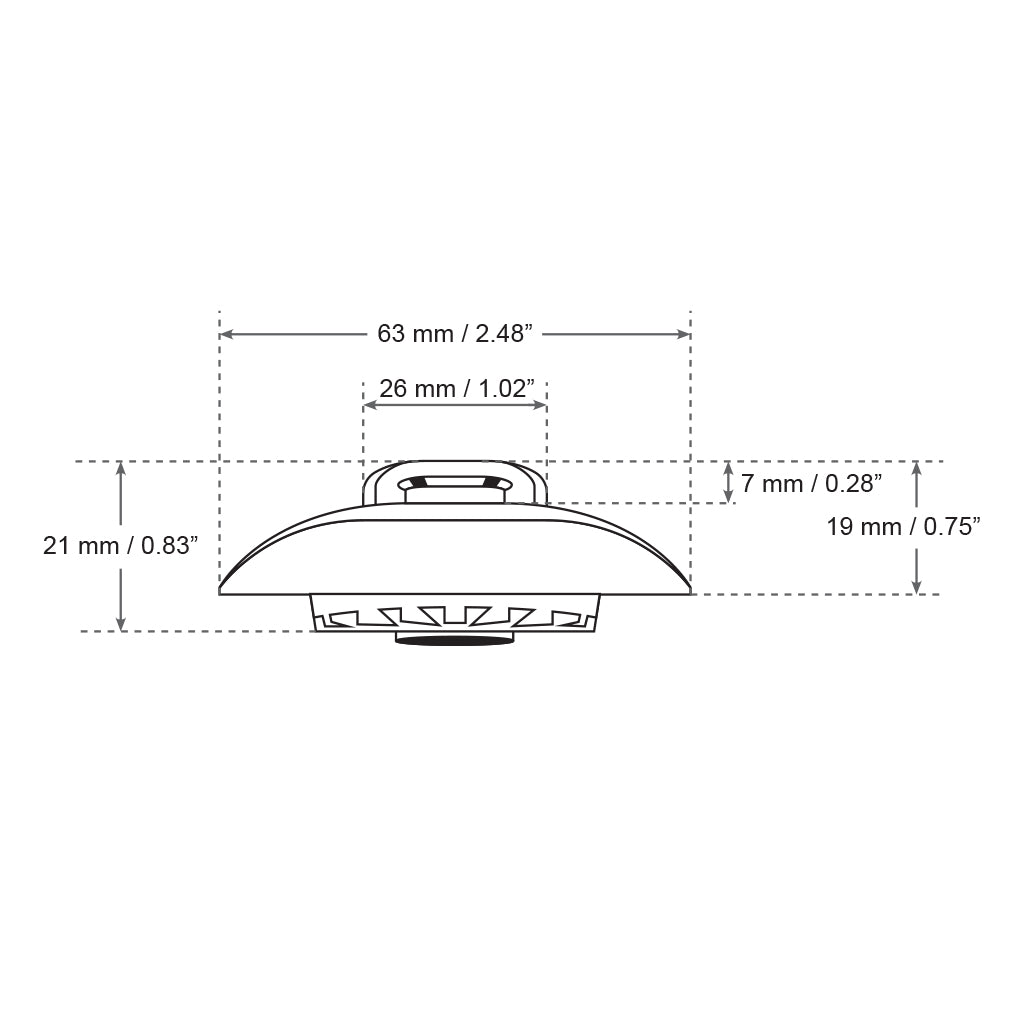

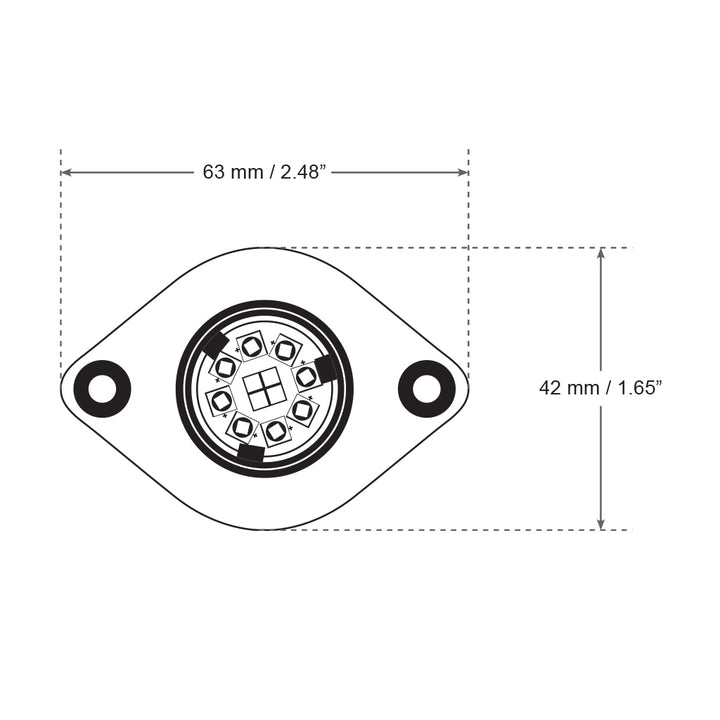

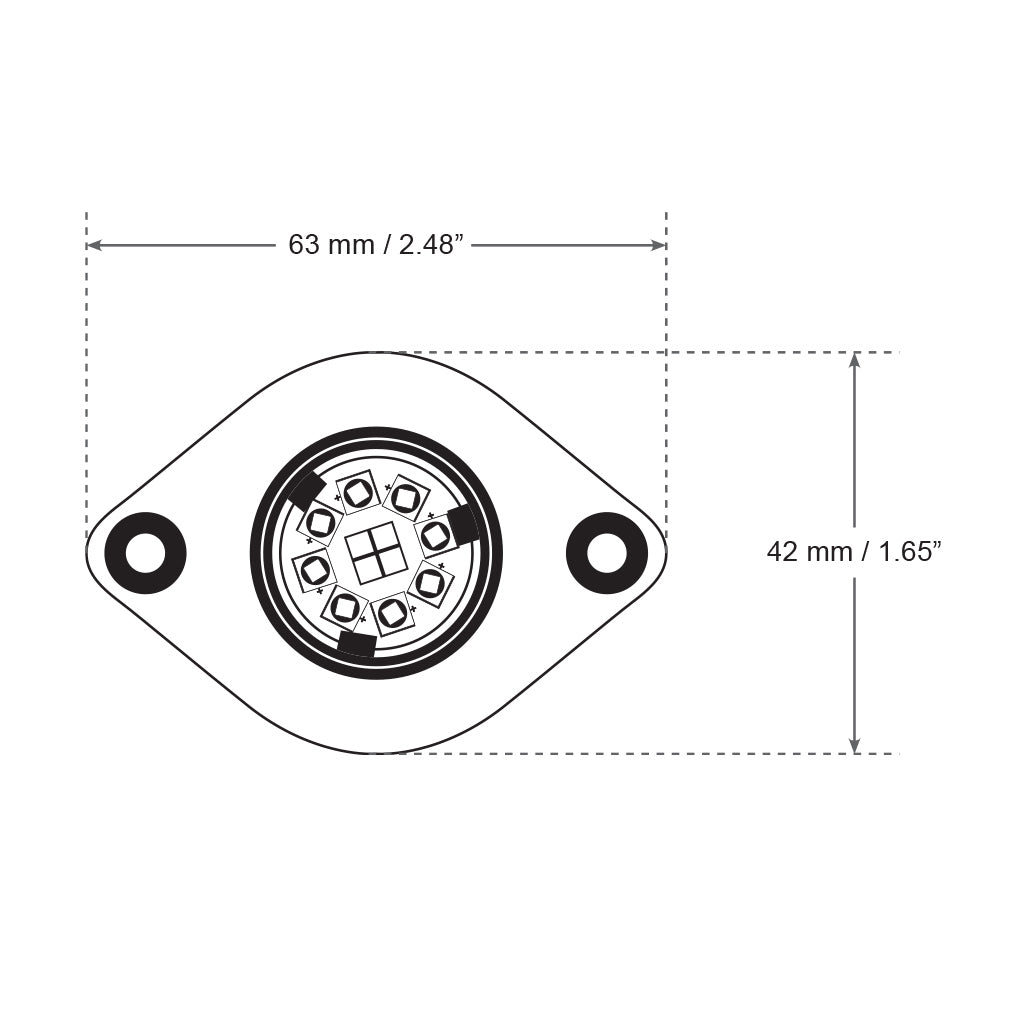

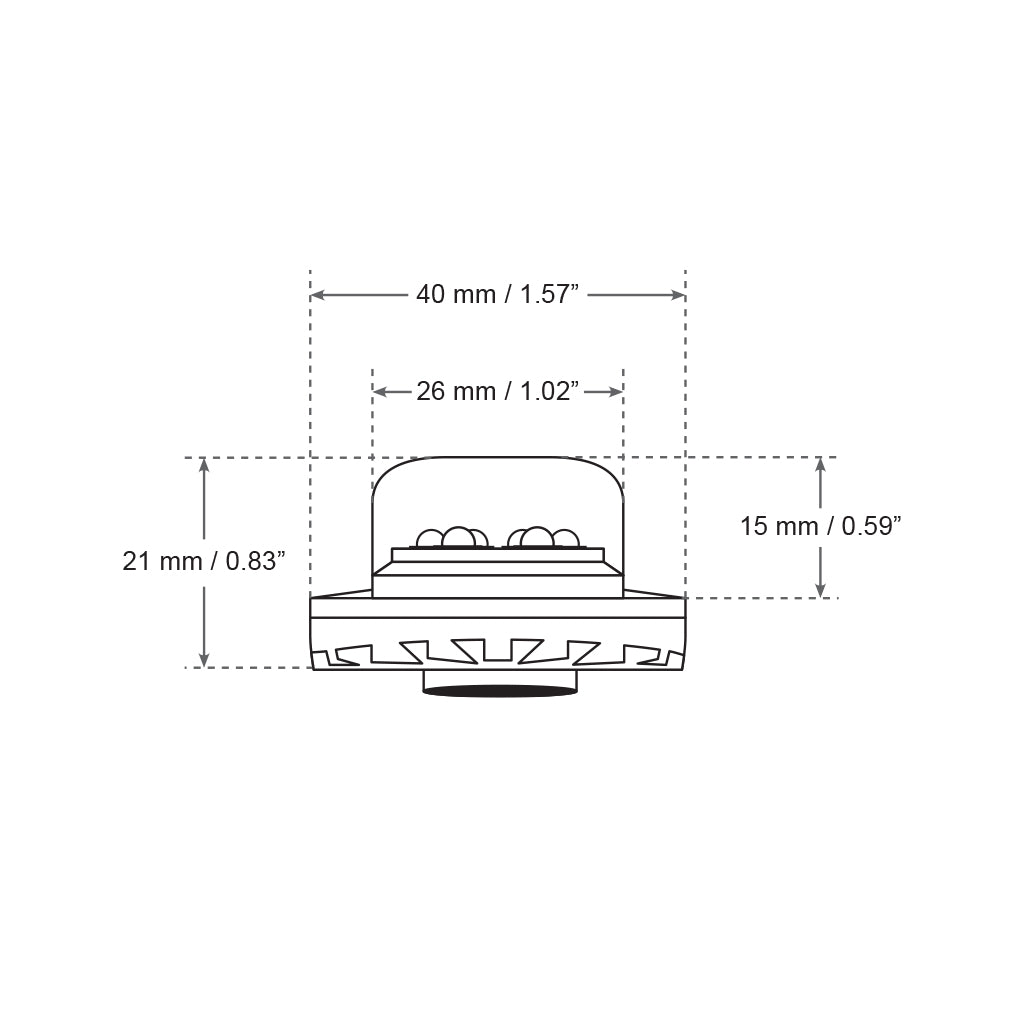

Amp draw: Average 1000 mA, Max 1400 mA Total Wattage Rating: 24 W Voltage: 12 V – 24 V Flash patterns: 16 Lamp Assembly: 40 mm x 22 mm (W x H) Lamb Driver/Flasher: 138 mm x 24 mm x 13 mm (L x W x H) Length of Wire: 3 m Lens Material: Polycarbonate Case Material: Aluminum IP Rating: 68
5 Wire System:
Red- Positive
Black – Ground
White: NegativeSignal for 1 sec to change flash pattern. Hold for 5 sec to change to steady burn (LEDs on without flashing)
Blue - Wig Wag (when 2 separate light heads have this wire joined, they will alternate when the light is on and off)
