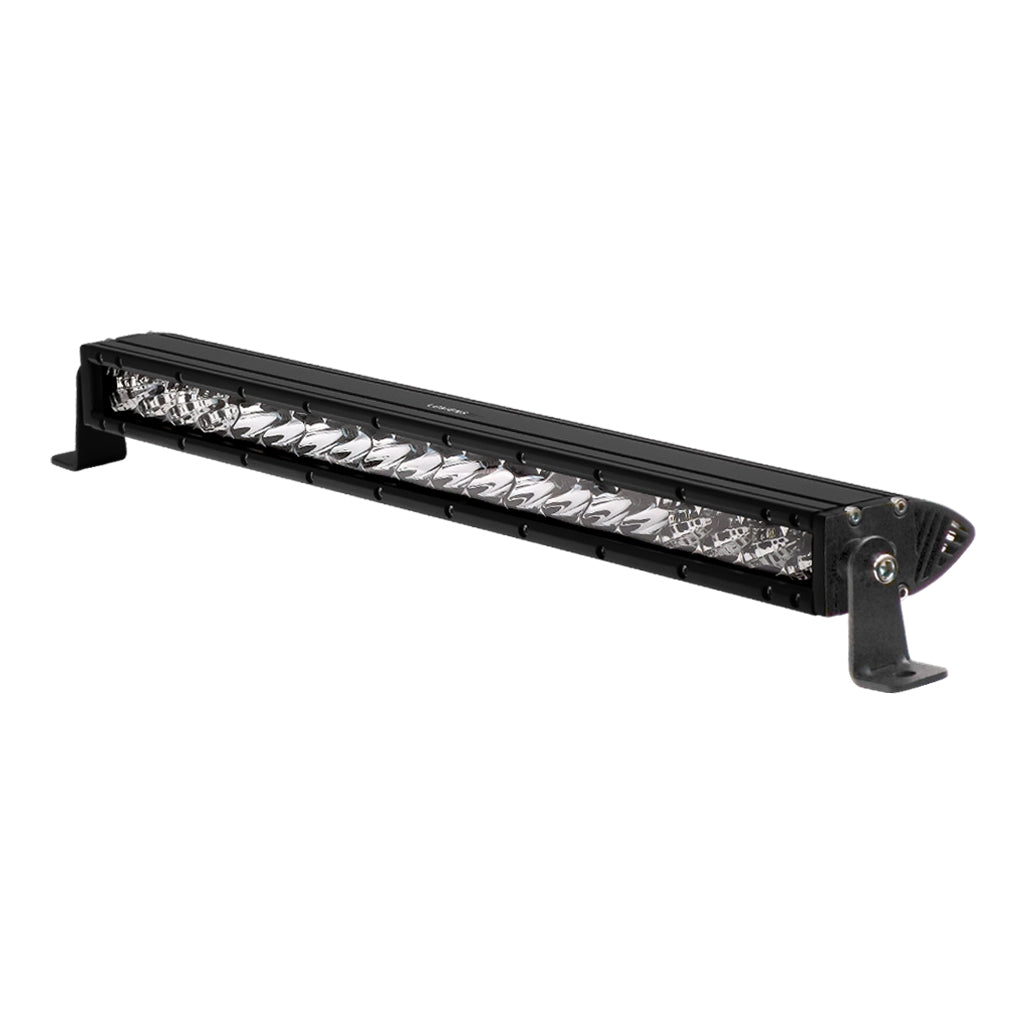

LED Light Bar - Single Row - COMP - 100W - 22" COMBO by LUMENS HPL

**Note: Wiring harness is not included. Item# HLEDDTS (1 Output) or HLEDDT2 (2 Outputs) are available for purchase individually. Alternatively, for custom switch and wiring, raw connectors are available (Item# CRDTMP)

**Warning: For Off-Road use only

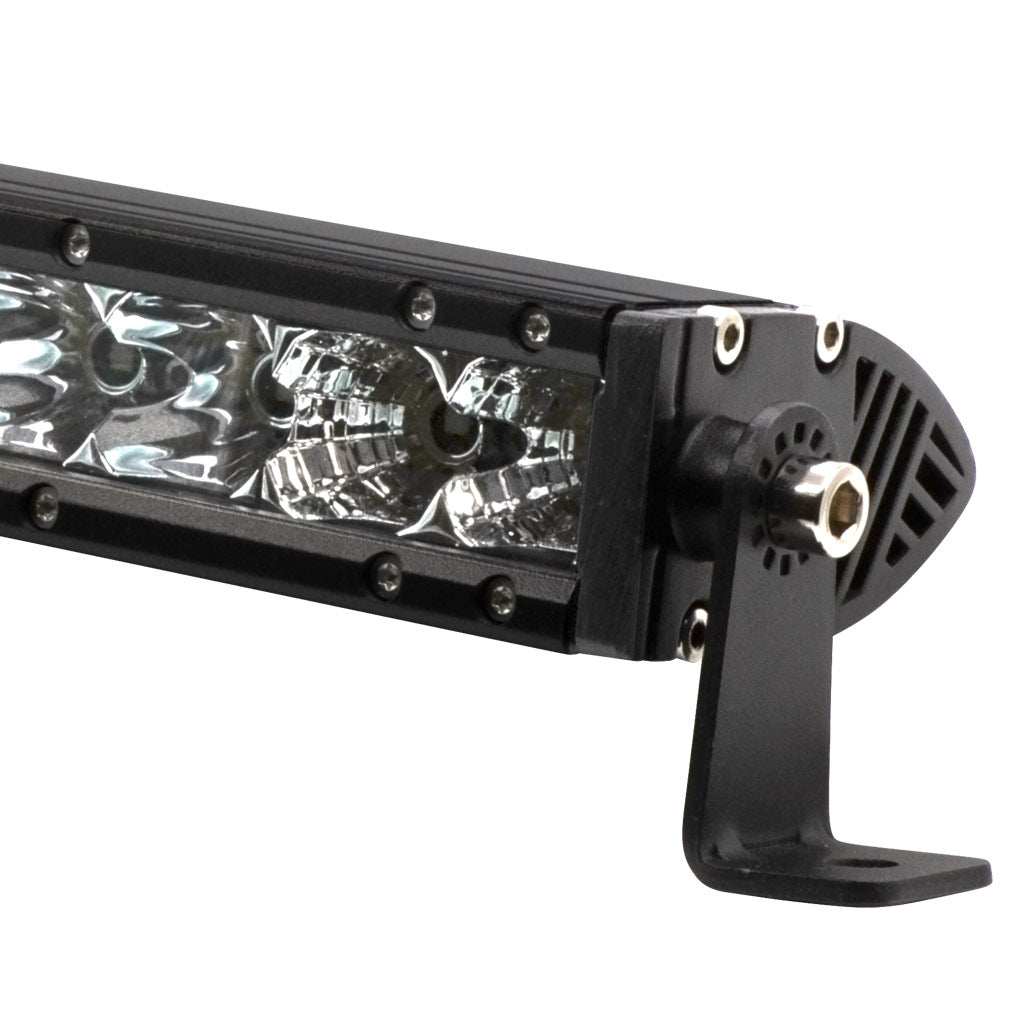

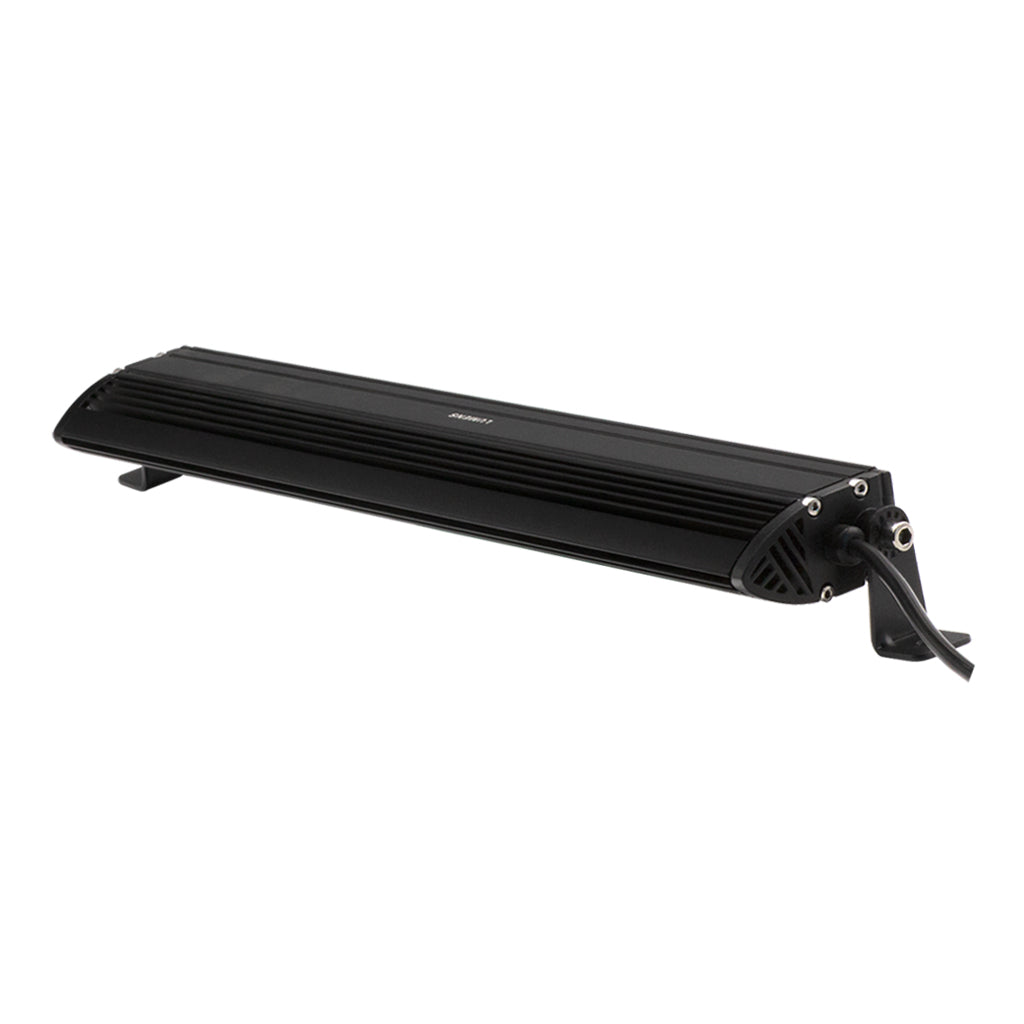

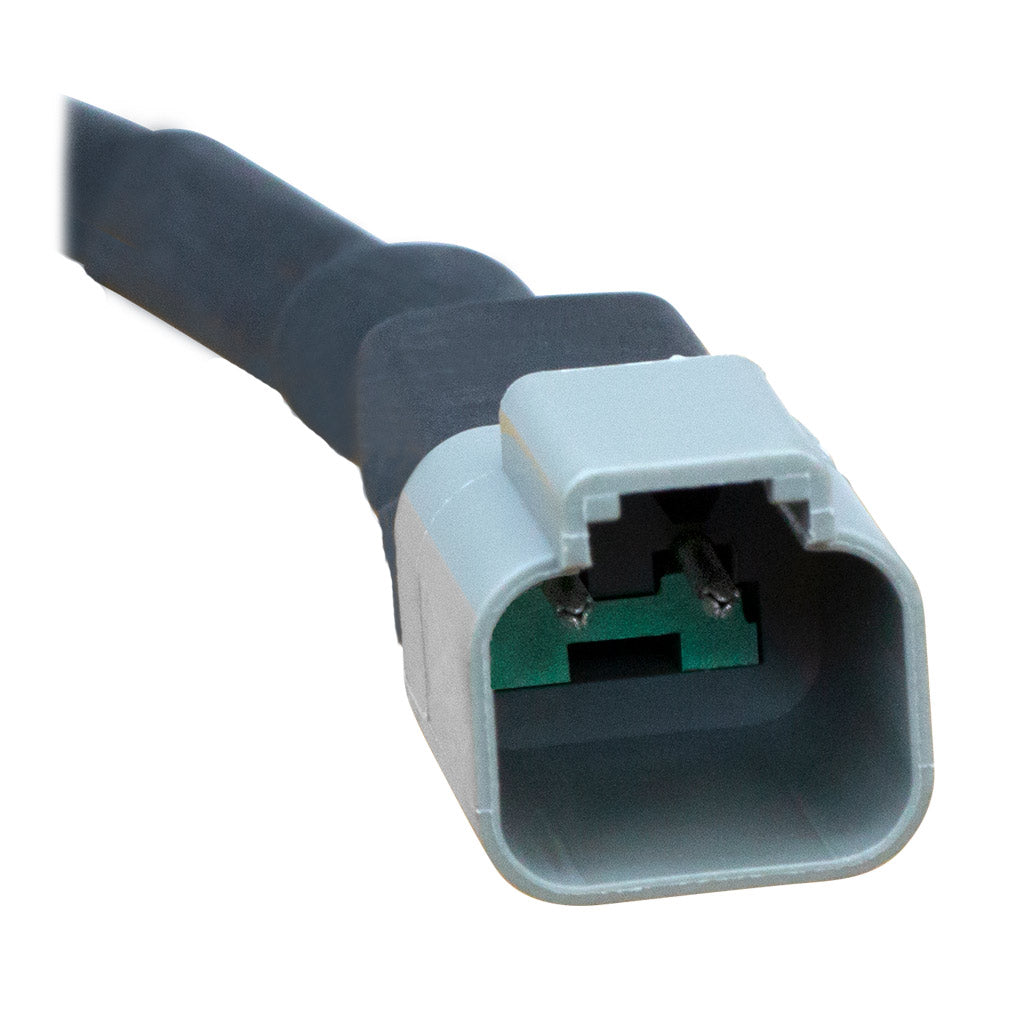

LUMENS HPL's COMP single row light bars offers great value and quality all in one product. At slightly less than 1.75" in height and 3.25" deep, they are perfect for tight spaces without compromising heat dissipation to prolong the life of the LED chips. The specifications used to build these units allow for great light output, durability, and quality, all for a competitive price. Hardened polycarbonate lens, aluminum body, and stainless steel mounts provides great durability. The light bar housing has passed waterproof tests, and includes a waterproof connector. 5W LEDs amplified by reflection lenses optimizes light output. No need to decide between a wide or long light beam patterns, as the COMP light bars provides both SPOT and FLOOD beam patterns in the same unit. EMC circuitry has been added to reduce radio interference. With it's operating voltage between 9 - 32V, they are commonly used on trucks, ATVs, snowmobiles, boats and industrial equipment.

Specifications:

• Body Construction Material: Aluminum Alloy
• Lens Material: Polycarbonate
• Height: 41 mm / 1.62"
• Depth: 82 mm / 3.23"
• Input Voltage (Max): 32 V
• Input Voltage (Min): 9 V
• Individual LED Chip Power: 5 W
• Color Temperature: 6000 K

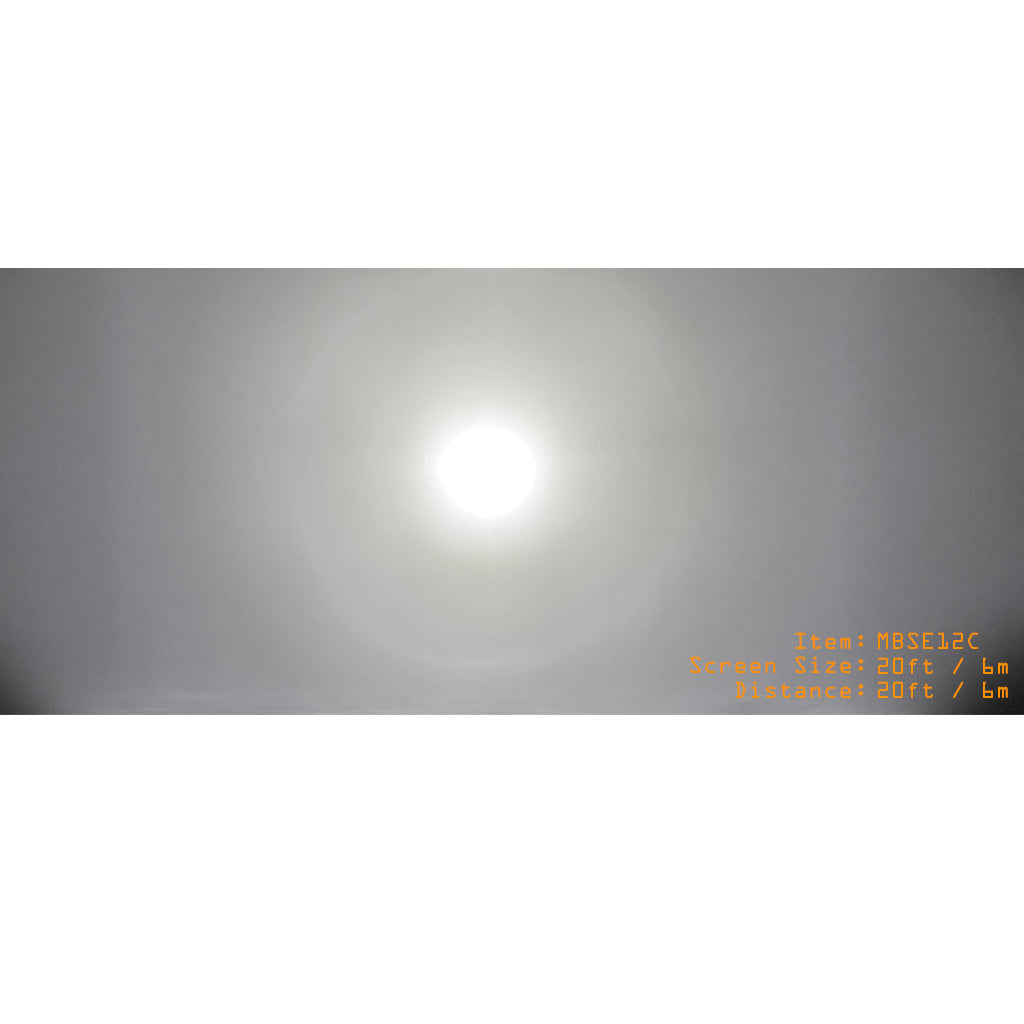

• Light Pattern: Combo
• IP Rating: IP68
• EMC (Reduction in radio noise): YES
• RoHS Compliant: YES
• Warranty: 1 Yrs
• Width: 534 mm / 21.03"
• Input Draw (Normal): 5.5 A
• LED Chip Total: 20 Pc(s)
• Total Raw Light Output: 7000 lm
• Total Power: 100 W
