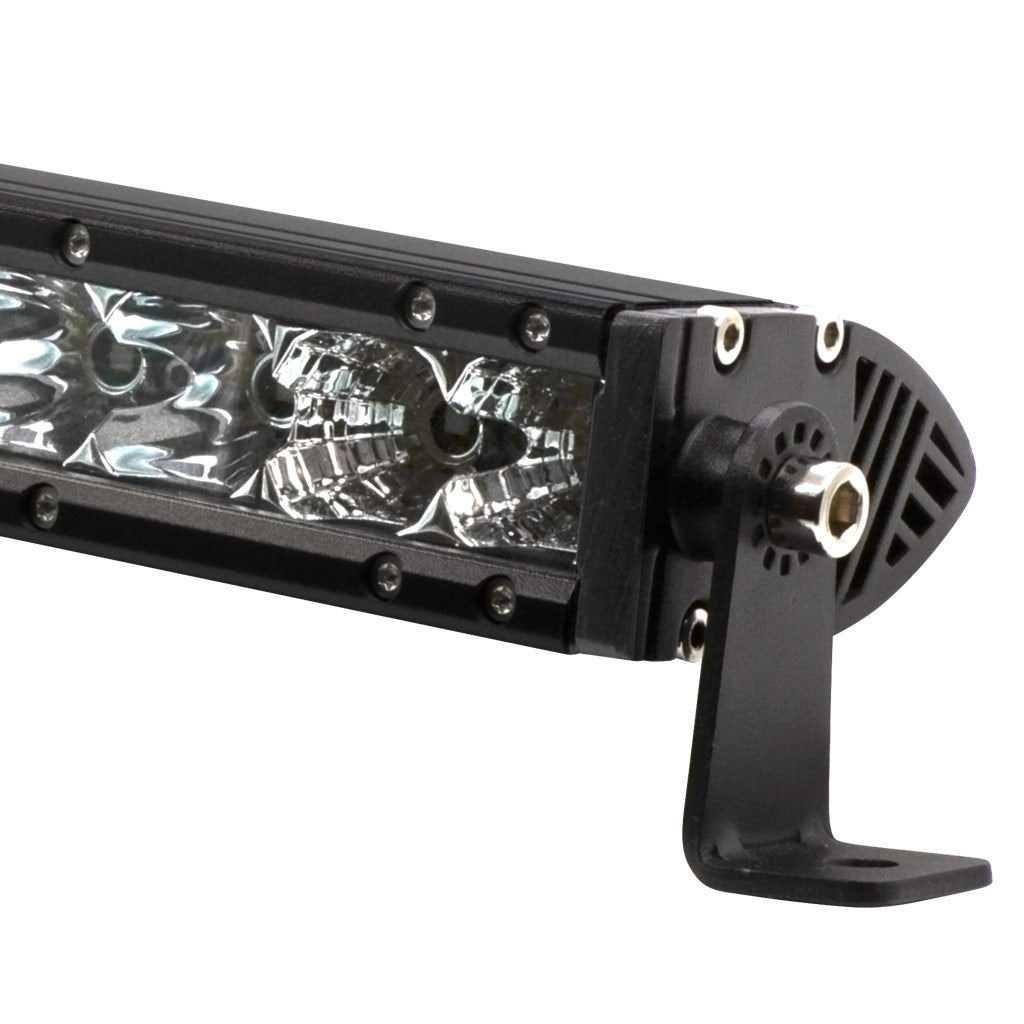

MBSE20C - Close_up by LUMENS High Performance Lighting (HPL)

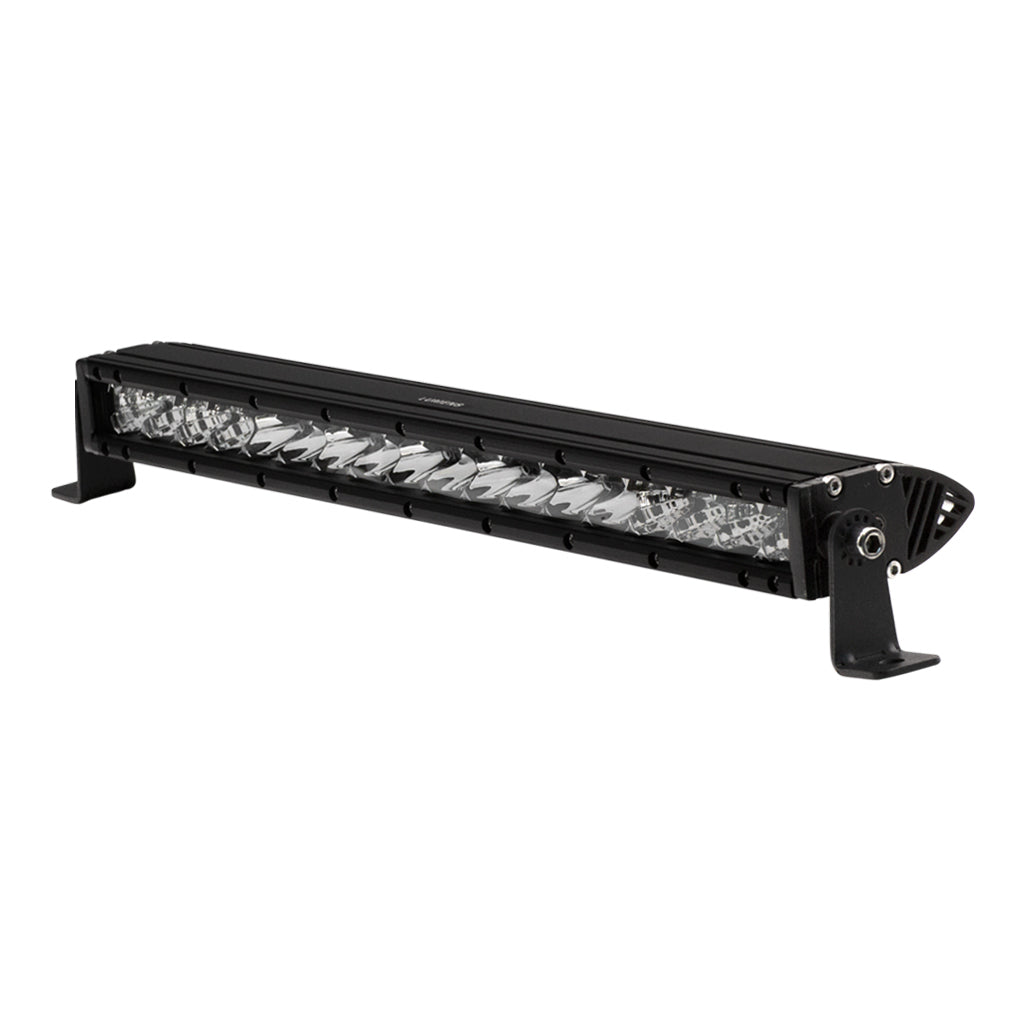

20in 90W COMP Single Row LED Light Bar (Each)
20in 90W COMP Single Row LED Light Bar (Each)

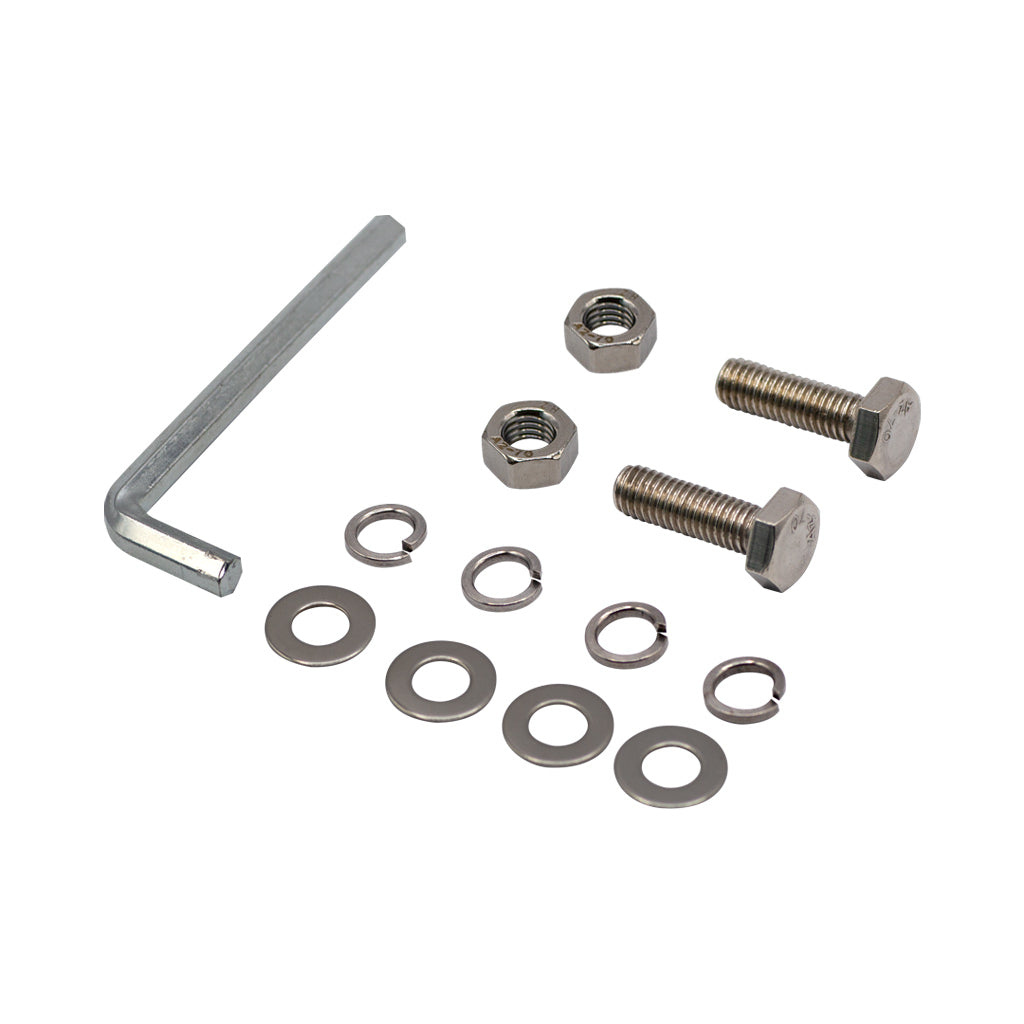

MBSE20C - Parts_included by LUMENS High Performance Lighting (HPL)

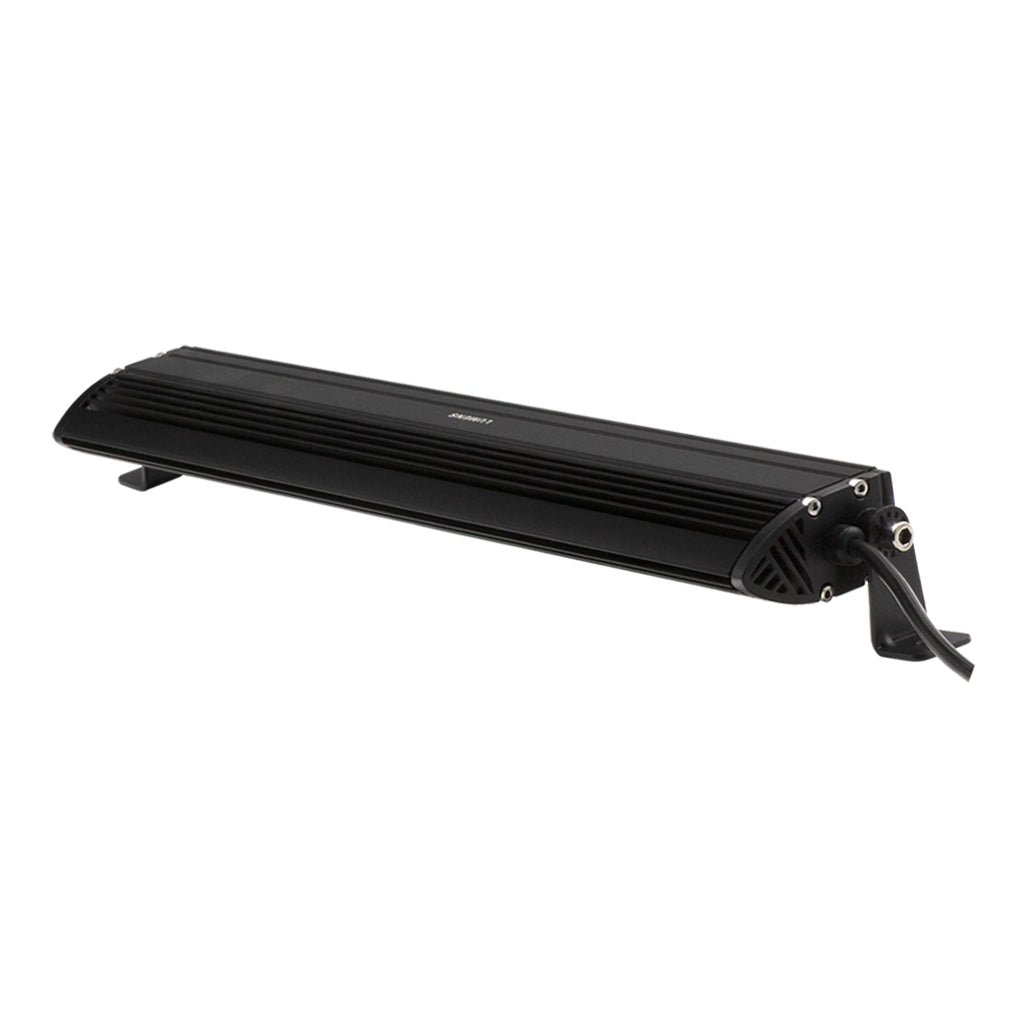

MBSE20C - Back by LUMENS High Performance Lighting (HPL)

20in 90W COMP Single Row LED Light Bar (Each)

MBSE20C

Regular price$139.99
/
Shipping calculated at checkout.

Important Note
  • Wiring and switch harnesses are not included with this light and must be purchased separately. Compatible wiring harnesses and connectors for custom installations are available separately.

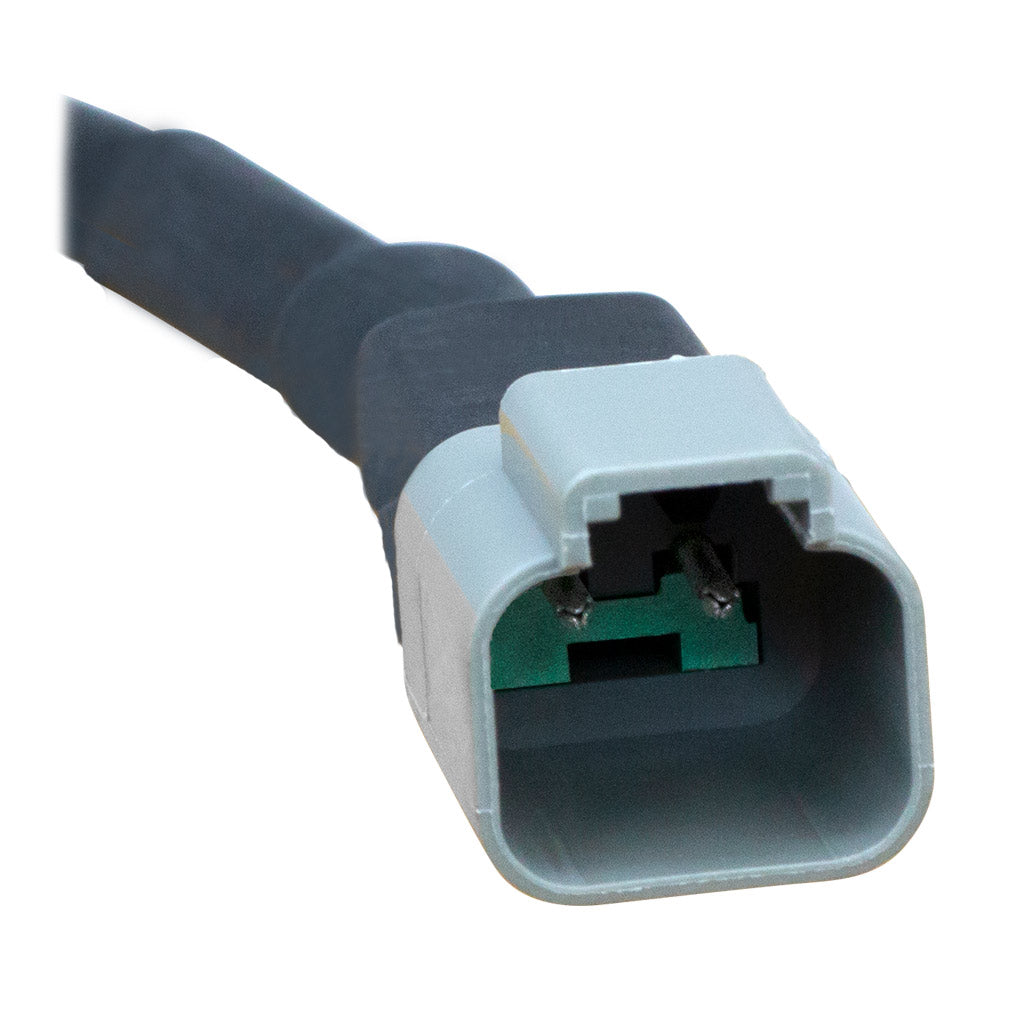

LUMENS HPL COMP single-row LED light bars combine a compact profile with a combination spot and flood beam for versatile auxiliary lighting. At less than 1.75in high and approximately 3.25in deep, the low-profile aluminum housing is well suited to installations where mounting space is limited while still providing effective heat dissipation for the LEDs. 5W LEDs and reflector optics produce both focused long-range illumination and wider coverage from the same light bar. A hardened polycarbonate lens, aluminum housing, stainless steel mounting hardware, waterproof construction, and waterproof electrical connector provide durability for demanding vehicle and equipment applications. Integrated EMC circuitry helps reduce radio interference, while the 9-32V operating range allows use on a wide variety of trucks, ATVs, snowmobiles, boats, industrial equipment, and other compatible vehicles.

  • Width: 484 mm / 19.06"
  • Input Draw (Normal): 5 A
  • LED Chip Total: 18 Pc(s)
  • Total Raw Light Output: 6300 lm
  • Total Power: 90 W
  • Body Construction Material: Aluminum Alloy
  • Lens Material: Polycarbonate
  • Depth: 82 mm / 3.23"
  • Height: 41 mm / 1.62"
  • Input Voltage (Max): 32 V
  • Input Voltage (Min): 9 V
  • Individual LED Chip Power: 5 W
  • Color Temperature: 6000 K

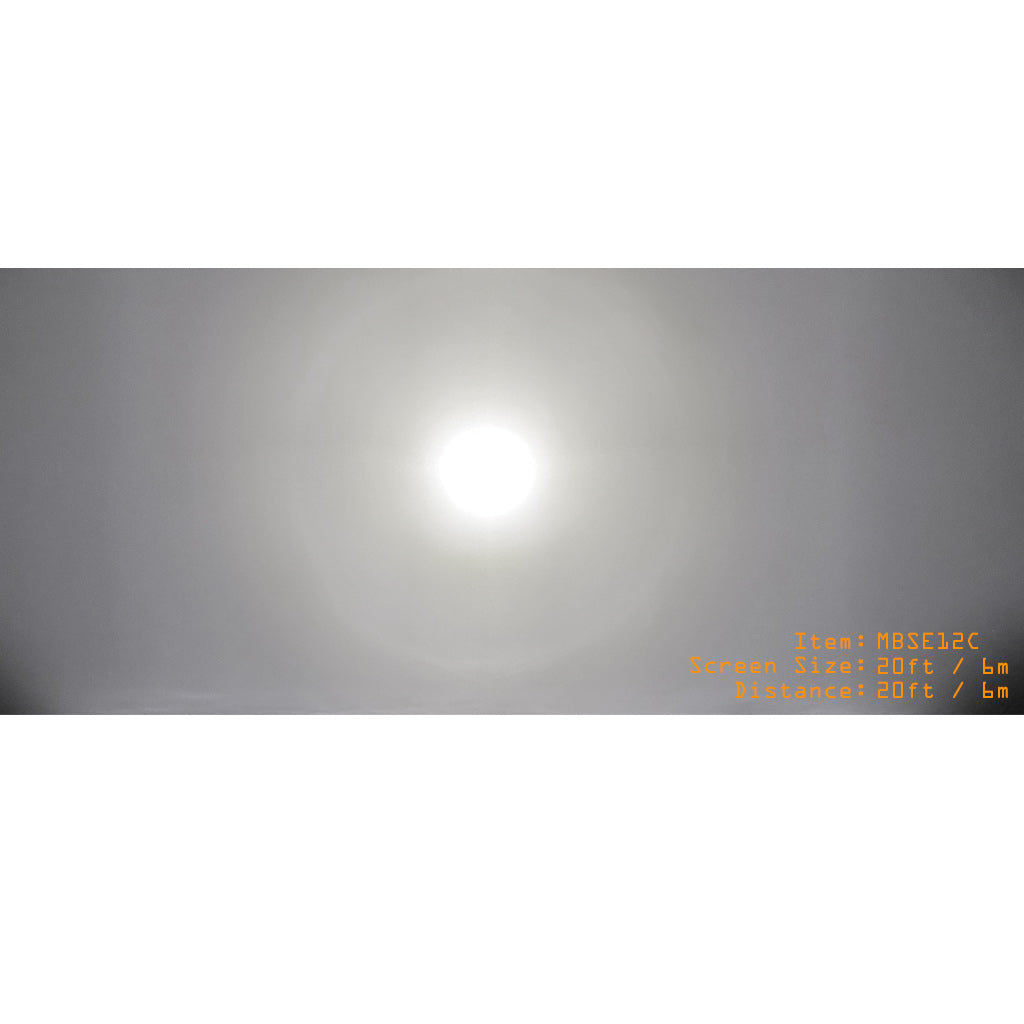

  • Light Pattern: Combo
  • IP Rating: IP68
  • EMC (Reduction in radio noise): YES
  • RoHS Compliant: YES

1 Year Limited Warranty
