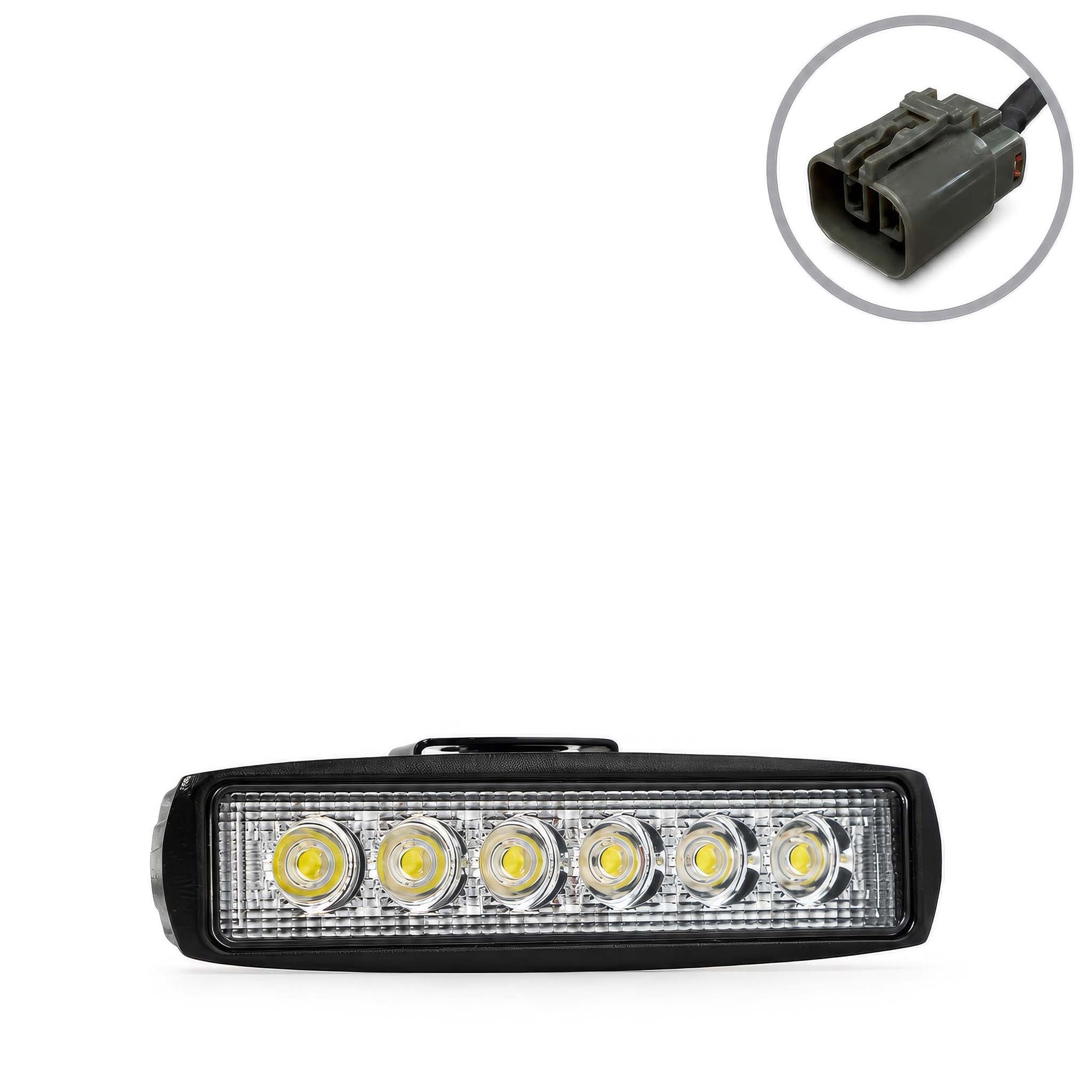

MWS6F - Primary by LUMENS High Performance Lighting (HPL)

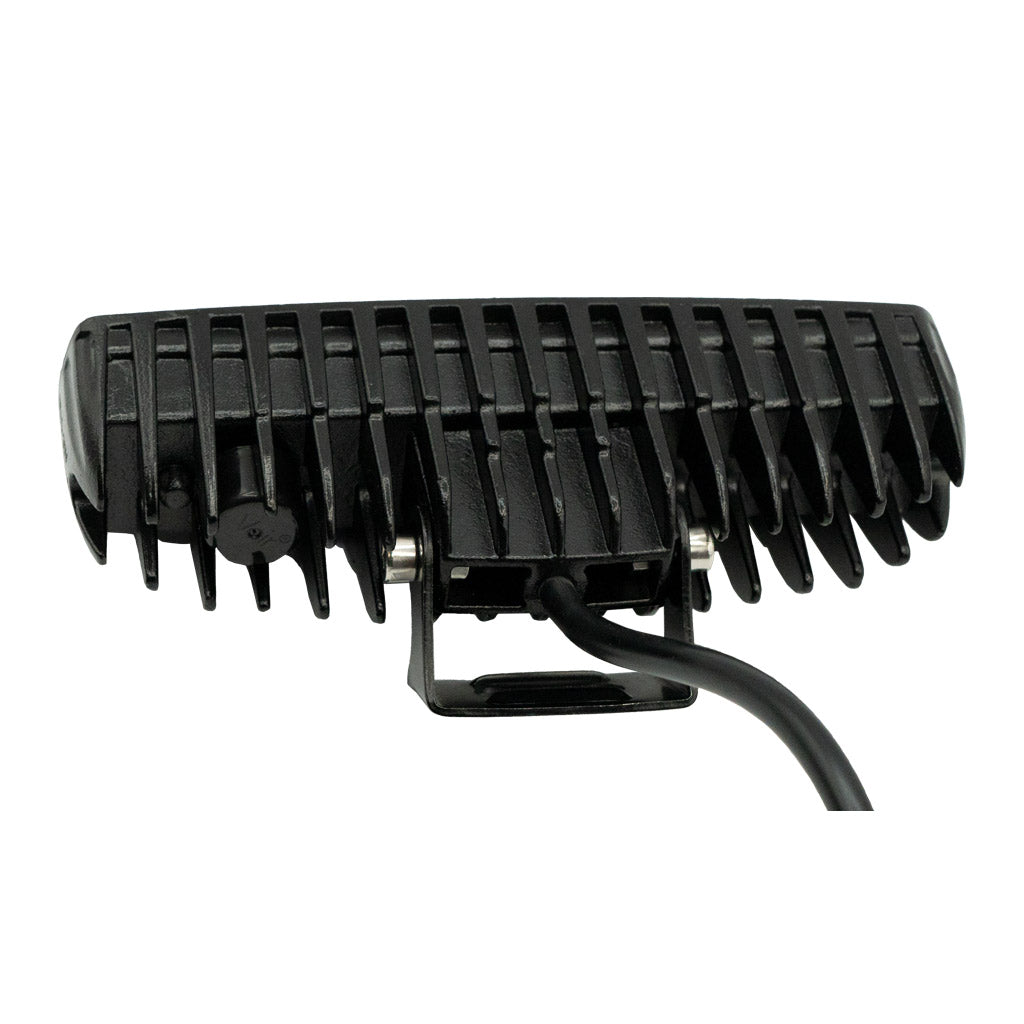

MWS6F - Back by LUMENS High Performance Lighting (HPL)

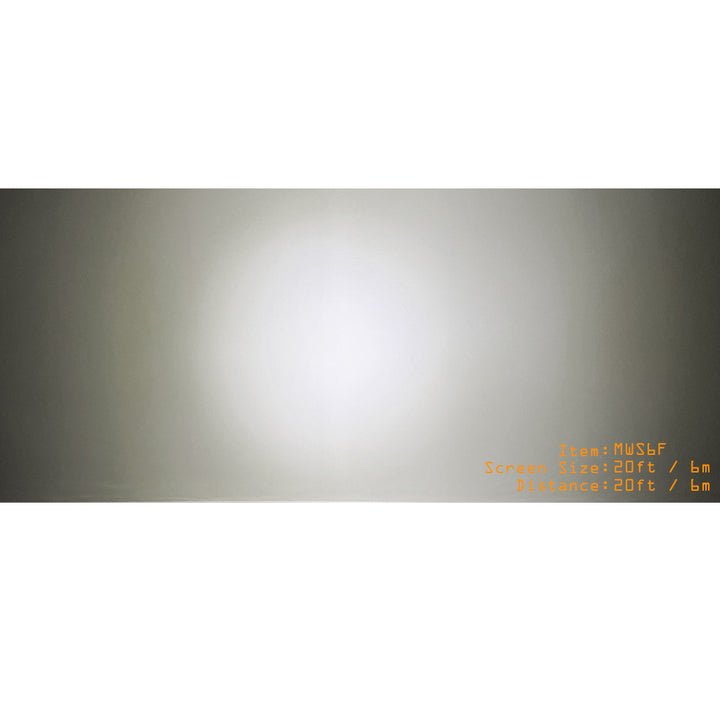

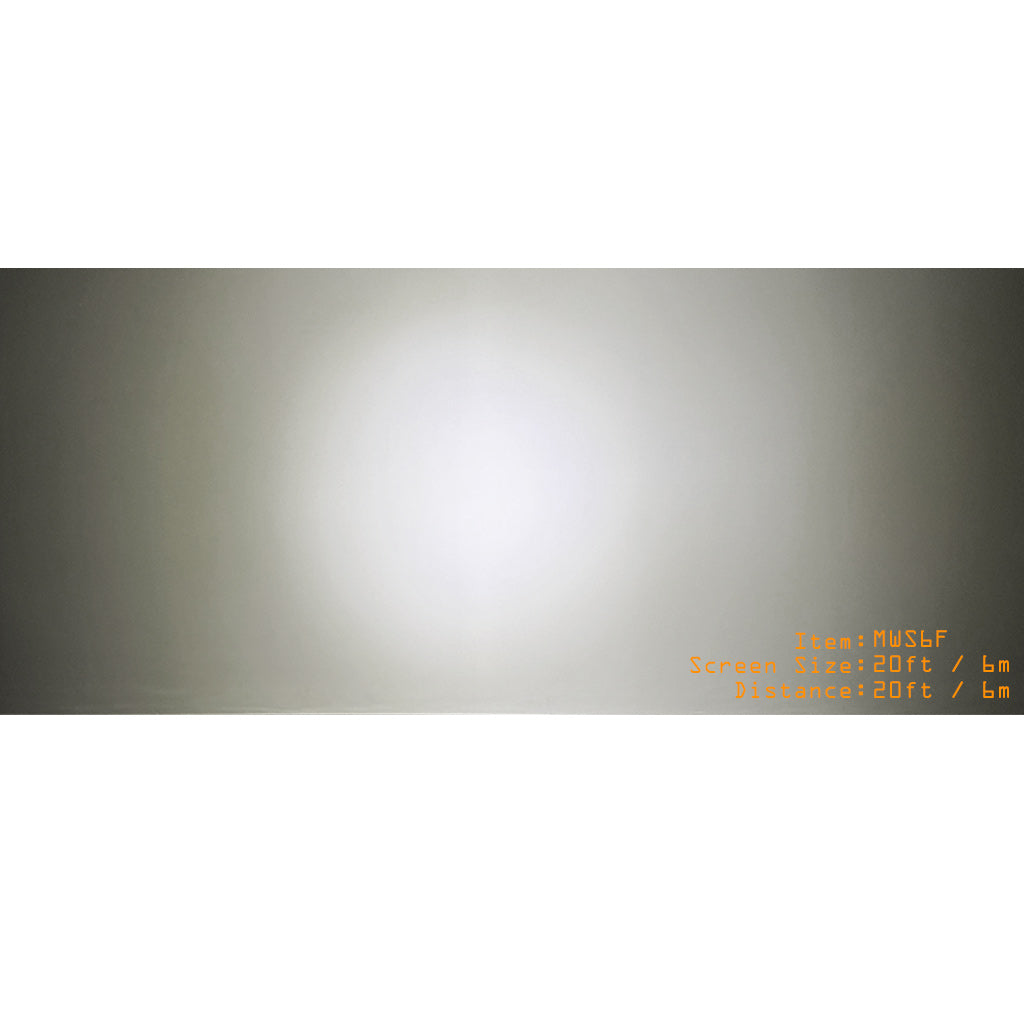

MWS6F - Beam_Pattern_1 by LUMENS High Performance Lighting (HPL)

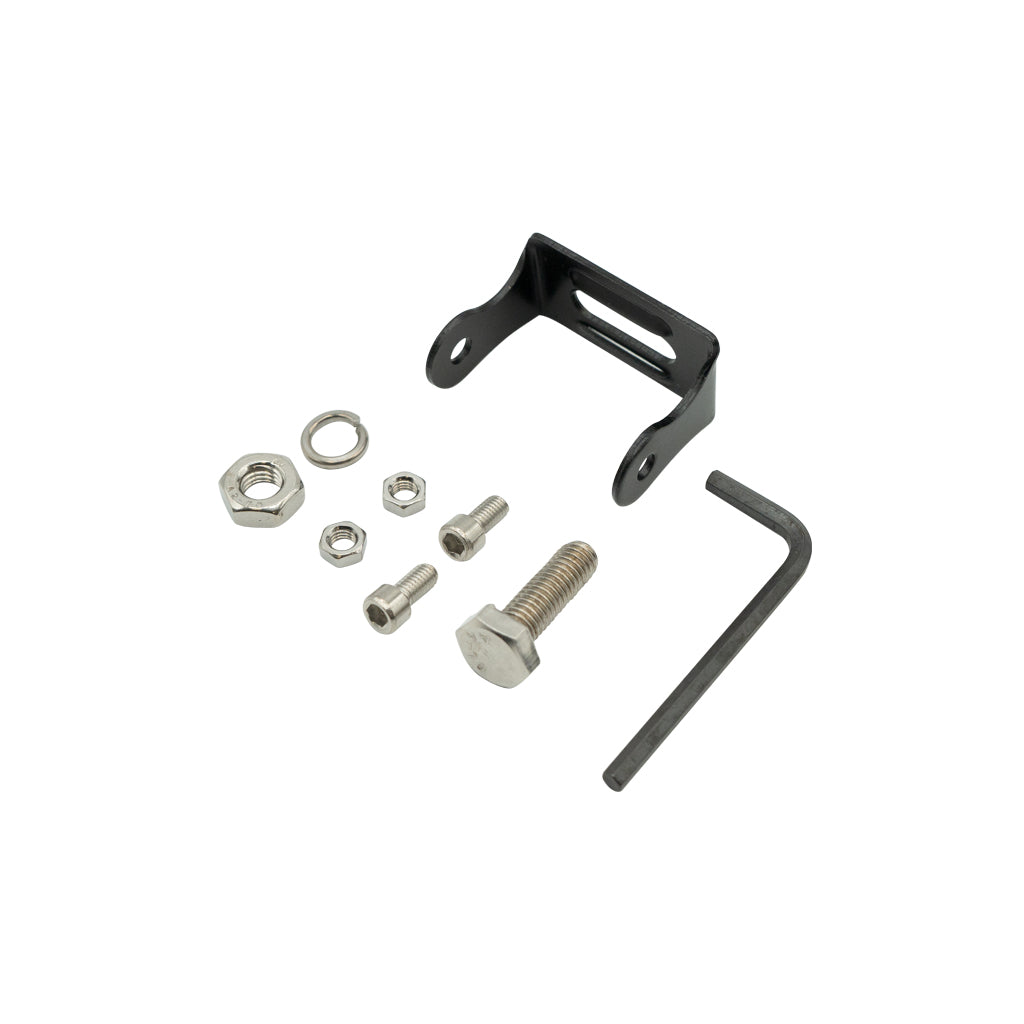

MWS6F - Parts_included by LUMENS High Performance Lighting (HPL)

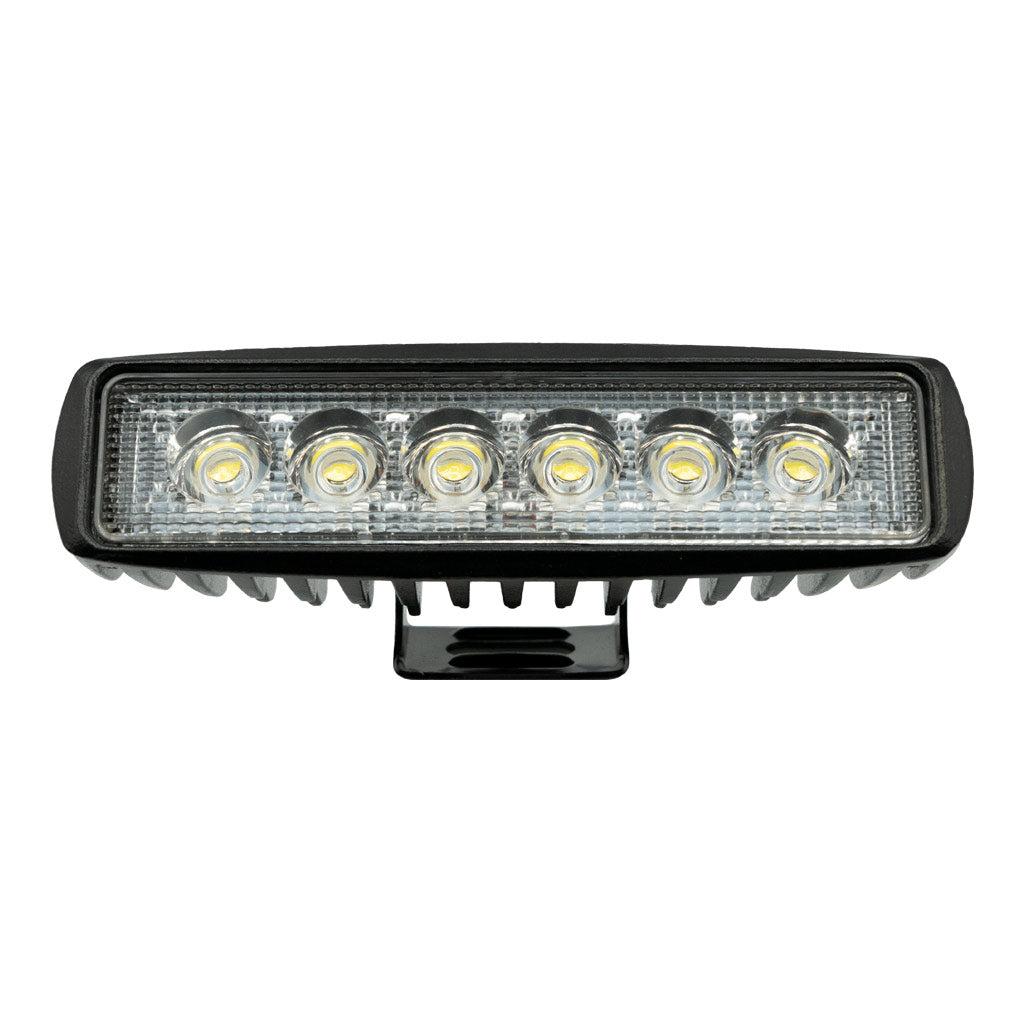

MWS6F - Unmounted1 by LUMENS High Performance Lighting (HPL)
MWS6F - Primary by LUMENS High Performance Lighting (HPL)
MWS6F - Back by LUMENS High Performance Lighting (HPL)
MWS6F - Beam_Pattern_1 by LUMENS High Performance Lighting (HPL)
MWS6F - Parts_included by LUMENS High Performance Lighting (HPL)
MWS6F - Unmounted1 by LUMENS High Performance Lighting (HPL)

6in Mini Bar 18W LED Worklight - Flood (Each)

MWS6F

$49.99
/
Shipping calculated at checkout.
Important Note
  • Wiring and switch harnesses are not included with this light and must be purchased separately. Compatible wiring harnesses and connectors for custom installations are available separately.

The LUMENS HPL MWS6F is a compact 18W mini bar LED worklight with a flood beam pattern designed to spread light across a broad working area. Its low-profile 6.2in x 1.7in housing provides a practical solution for installations where vertical mounting space is limited. A die-cast aluminum housing, polycarbonate lens, stainless steel mounting bracket, IP67 rating, and 10-30V operating range make it suitable for a wide range of work, equipment, and utility lighting applications.

  • Body Construction Material: Aluminum (Die Cast)
  • Depth: 2.3 in
  • Height: 1.7 in
  • Width: 6.2 in
  • Input Draw (Normal): 2.0 A
  • Input Voltage DC (Max): 30 V
  • Input Voltage DC (Min): 10 V
  • Individual LED Chip Power: 3 W
  • LED Chip Total: 6 Pc(s)
  • Light Pattern: Flood
  • Total Power: 18 W
  • IP Rating: IP67
  • Lens Material: Polycarbonate
  • Color: Pure White
  • EMC (Reduction in radio noise): YES

1 Year Limited Warranty
