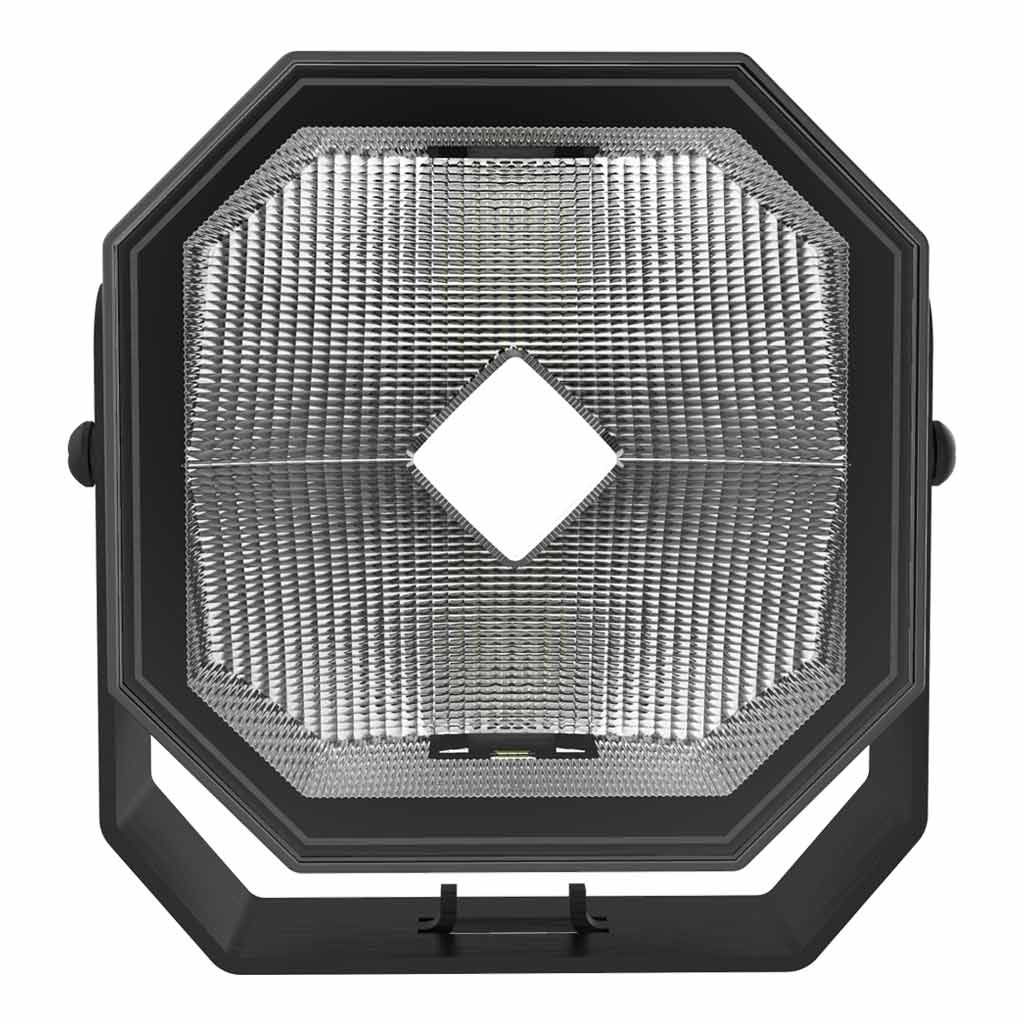

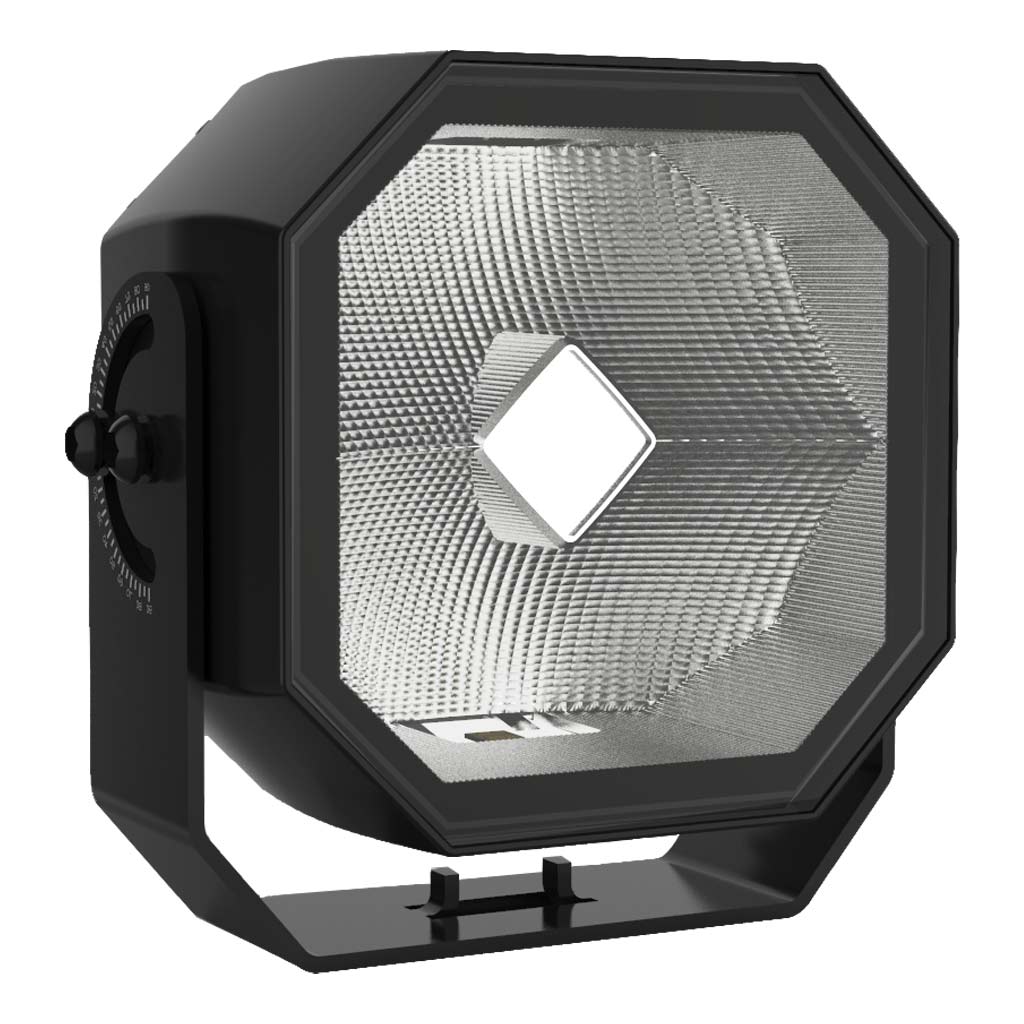

5" Square 60W Reflex LED Worklight

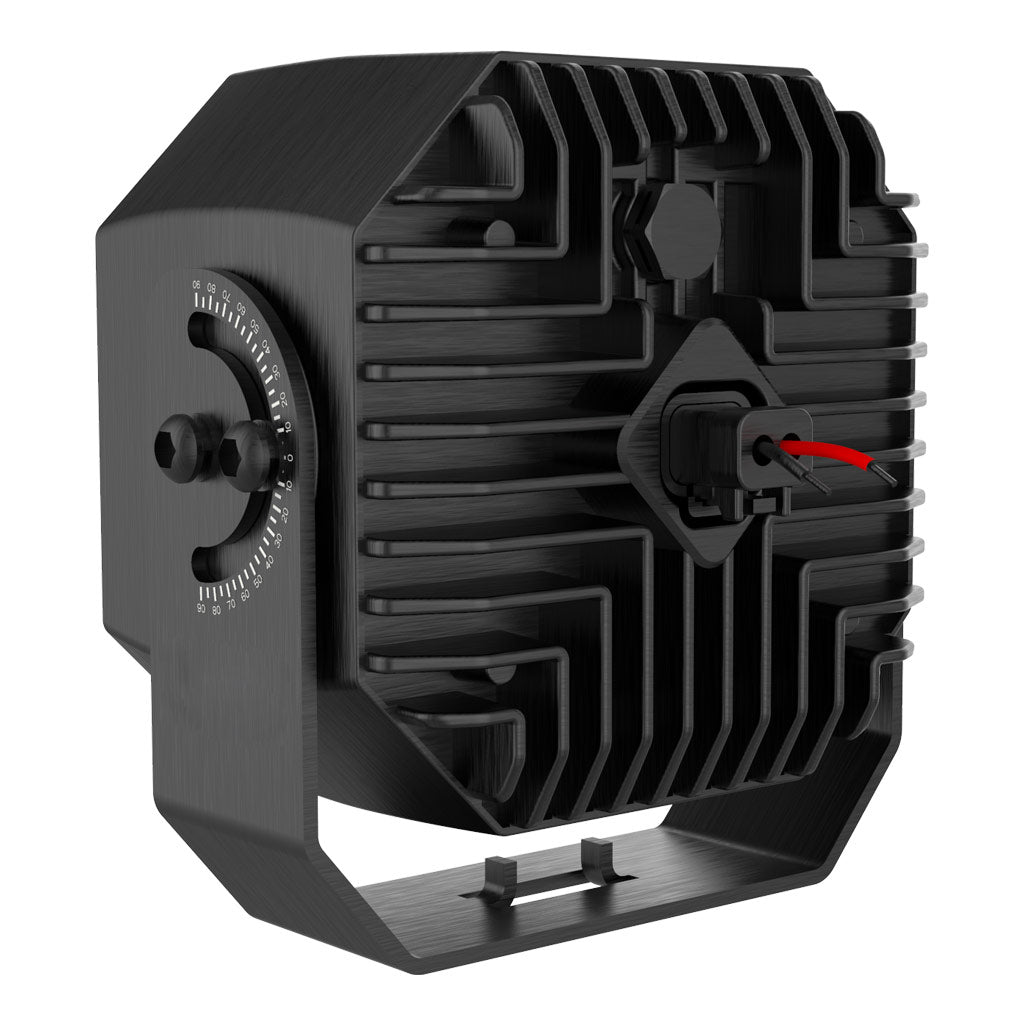

The LUMENS HPL MWS20 is a 5" square, 60W LED worklight featuring the Reflex series optical system. Unlike conventional worklights that project light directly forward from the LEDs, the MWS20 directs its LED output into a specially designed faceted reflector. This reflector redirects and disperses the light across the working area, producing a broad, even and usable beam pattern. Designed for demanding vehicle and equipment applications, the MWS20 features a powder-coated aluminum housing for resistance to corrosion and chemical exposure. Its streamlined housing helps reduce dirt and snow buildup, while the adjustable mount allows the light to be positioned for the application. A DT input connector provides a straightforward electrical connection, while an integrated breather helps manage internal pressure and moisture. Built-in temperature control helps regulate operation as conditions change.

Specifications:

• Body Construction Material: Aluminum
• Lens Material: Polycarbonate
• Depth: 94 mm / 3.71"
• Height: 134 mm / 5.28"
• Width: 122 mm / 4.81"
• Input Draw (Normal): 5.9 A
• Input Voltage DC (Max): 30 V
• Input Voltage DC (Min): 10 V
• LED Chip Model: 3570 CSP
• Individual LED Chip Power: 15 W
• LED Chip Total: 4 Pc(s)
• Color Temperature: 6000 K
• Light Pattern: Flood
• Total Power: 60 W
• IP Rating: IP69K
• EMC (Reduction in radio noise): YES
