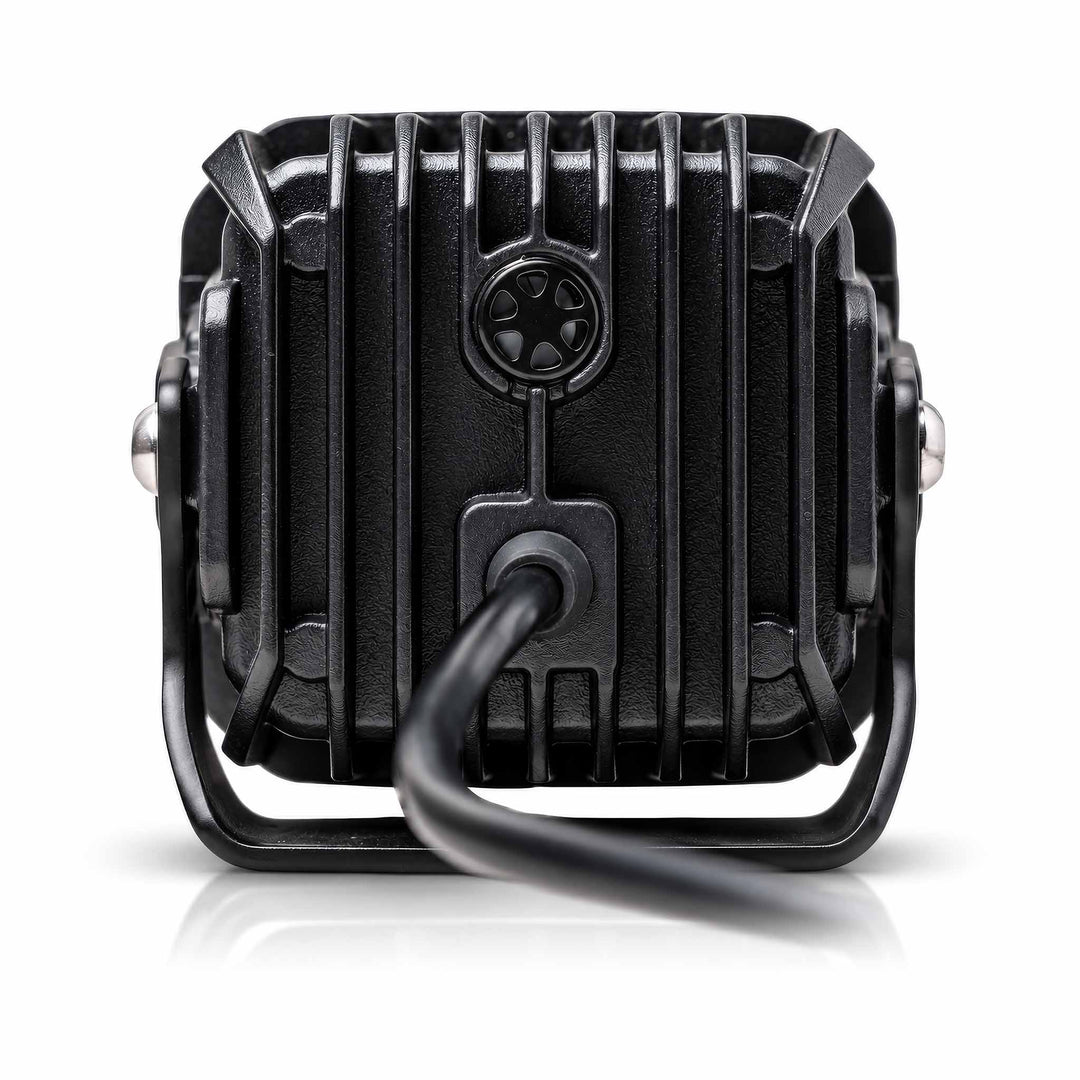

MWS15F - Back by LUMENS High Performance Lighting (HPL)
MWS15F - Side_right by LUMENS High Performance Lighting (HPL)
MWS15F - Mounted1 by LUMENS High Performance Lighting (HPL)
MWS15F - Unmounted2 by LUMENS High Performance Lighting (HPL)

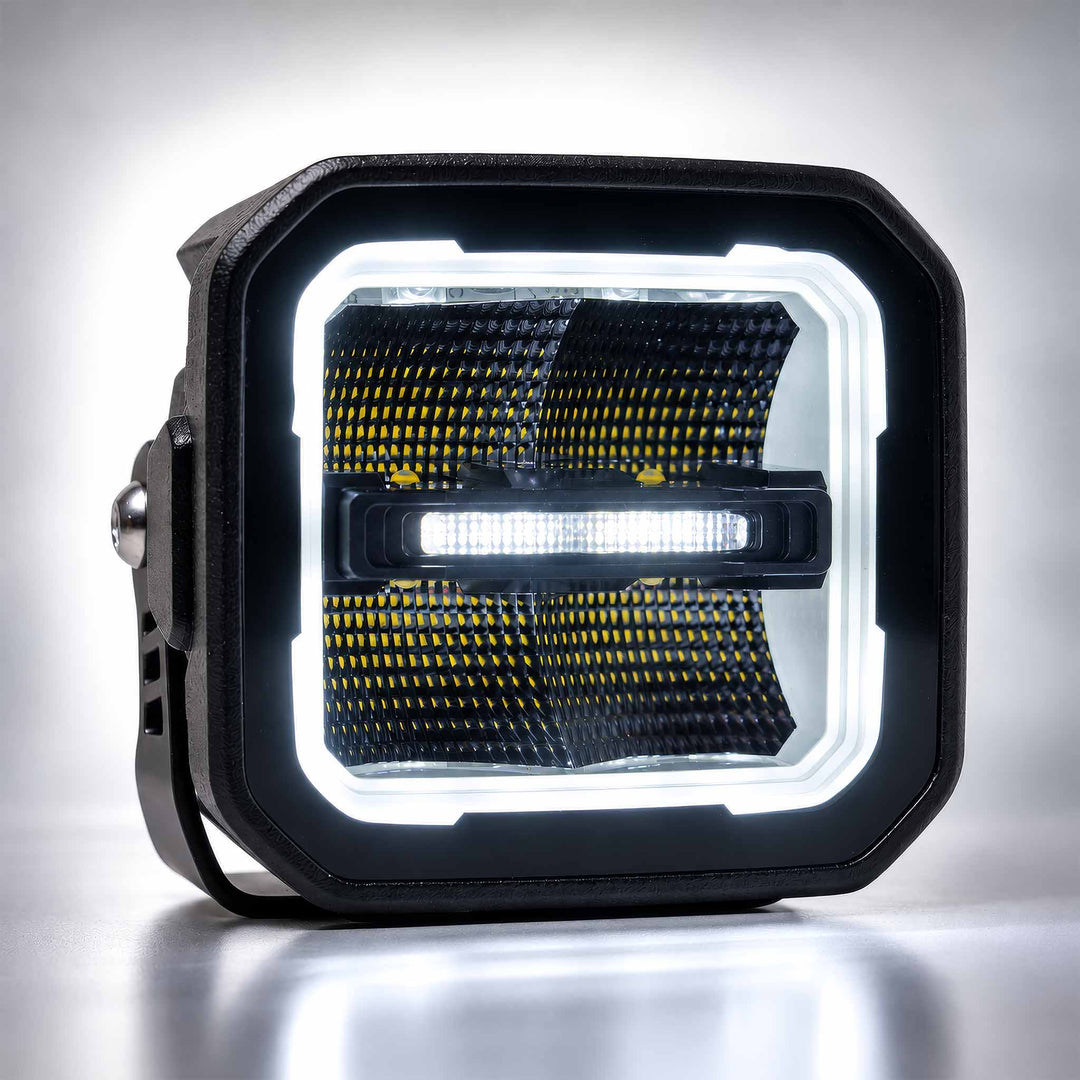

MWS15F - Unmounted1 by LUMENS High Performance Lighting (HPL)
MWS15F - Front by LUMENS High Performance Lighting (HPL)

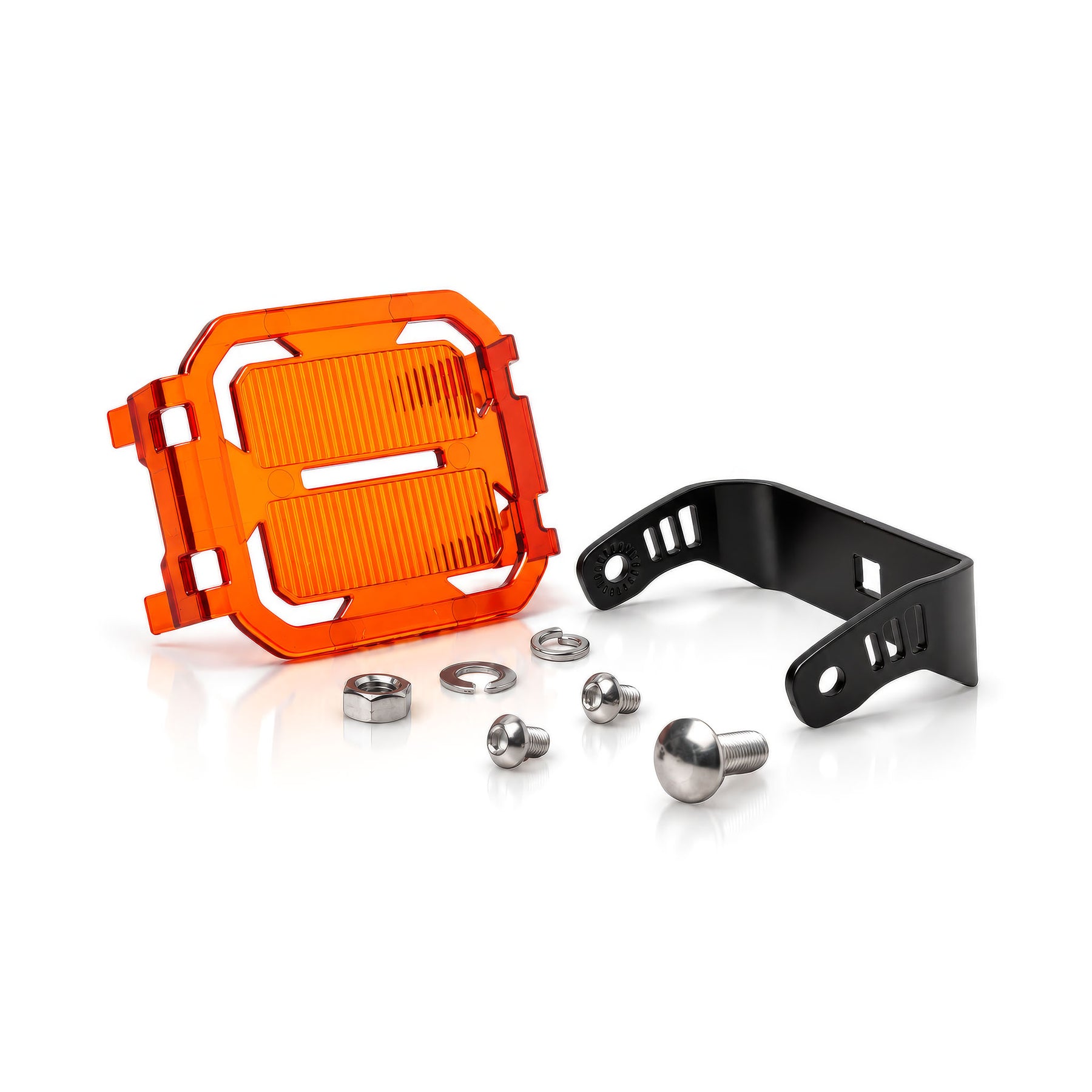

MWS15F - Parts_included by LUMENS High Performance Lighting (HPL)

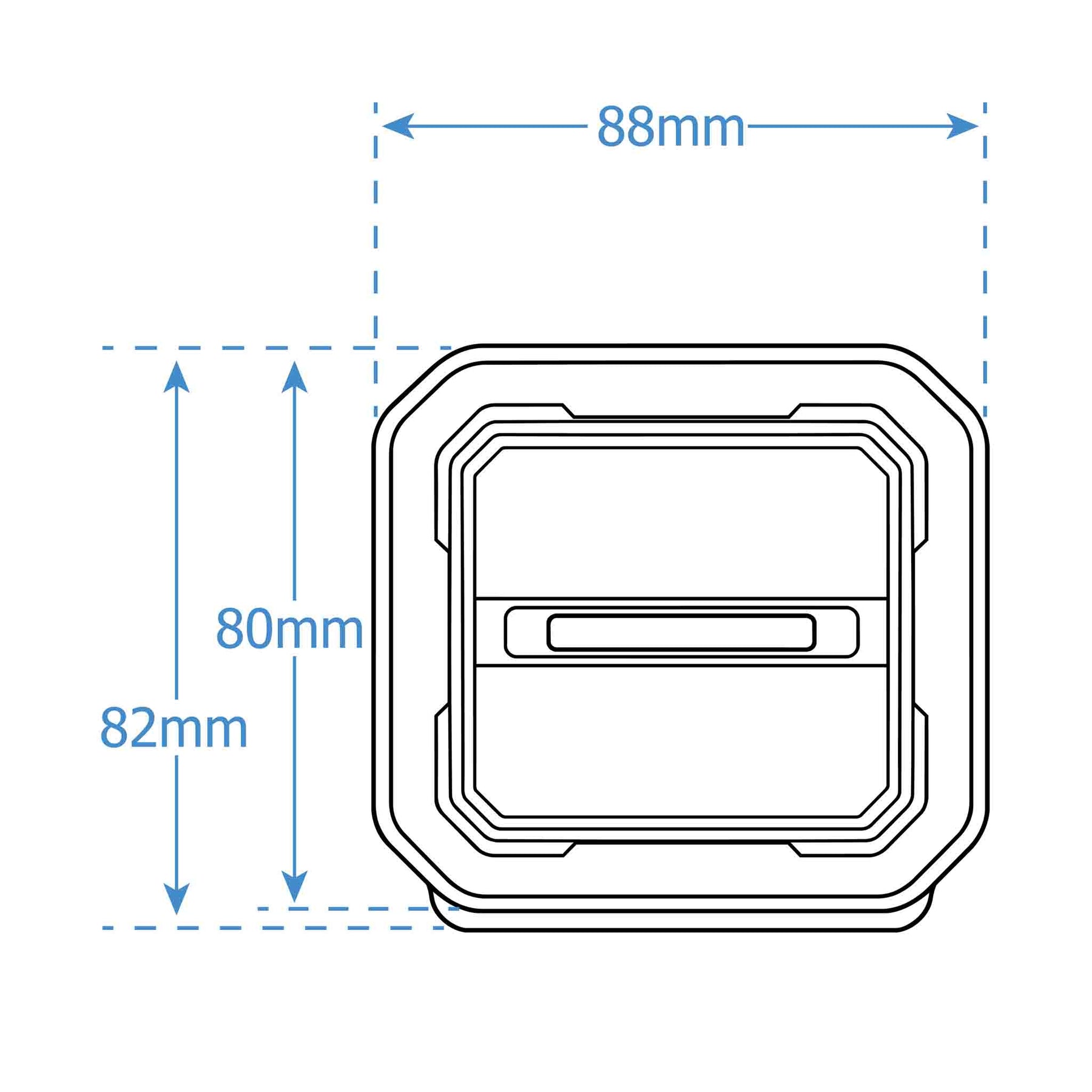

MWS15F - Measurement1 by LUMENS High Performance Lighting (HPL)
MWS15F - Measurement2 by LUMENS High Performance Lighting (HPL)
MWS15F - Technical by LUMENS High Performance Lighting (HPL)

3in Cube 40W Reflex LED Worklight - Flood (Each)

MWS15F

Regular price$89.99
/
Shipping calculated at checkout.

Important Note
  • Wiring and switch harnesses are not included with this light and must be purchased separately. Compatible wiring harnesses and connectors for custom installations are available separately.

The LUMENS HPL MWS15F is a compact 3in LED worklight featuring the Reflex optical system, a dual-color signature light, and a removable amber lens cover for added versatility in a wide range of vehicle and equipment applications. Rather than projecting light directly forward from the LEDs, the Reflex optical system directs the LED output through a specially designed reflector to distribute a broad, even flood pattern across the working area. When amber illumination is preferred, the included snap-on amber lens cover converts the main white output to amber without changing the light itself. An integrated dual-color signature light can be operated in white or amber independently of the main worklight, providing additional flexibility for accent or auxiliary lighting. The compact die-cast aluminum housing, adjustable mounting bracket, and IP67 rating make the MWS15F well suited to demanding installations where space, versatility, and effective working light are important.

Features:

  • Reflex optical system with broad flood beam
  • 40W main white worklight
  • Included snap-on amber lens cover
  • Dual-color white and amber signature light
  • Signature light operates independently from the main worklight
  • Body Construction Material: Aluminum (Die Cast)
  • Lens Material: Polycarbonate
  • Depth: 54 mm / 2.13"
  • Height: 80 mm / 3.15"
  • Width: 88 mm / 3.47"
  • Input Draw (Normal): 4.9 A
  • Input Voltage DC (Max): 30 V
  • Input Voltage DC (Min): 10 V
  • LED Chip Brand: Osram
  • LED Chip Model: P9
  • Individual LED Chip Power: 10 W
  • LED Chip Total: 4 Pc(s)
  • Light Pattern: Flood
  • Total Power: 40 W
  • IP Rating: IP67
  • Lens Material: Polycarbonate
  • Color: Pure White
  • EMC (Reduction in radio noise): YES

1 Year Limited Warranty
