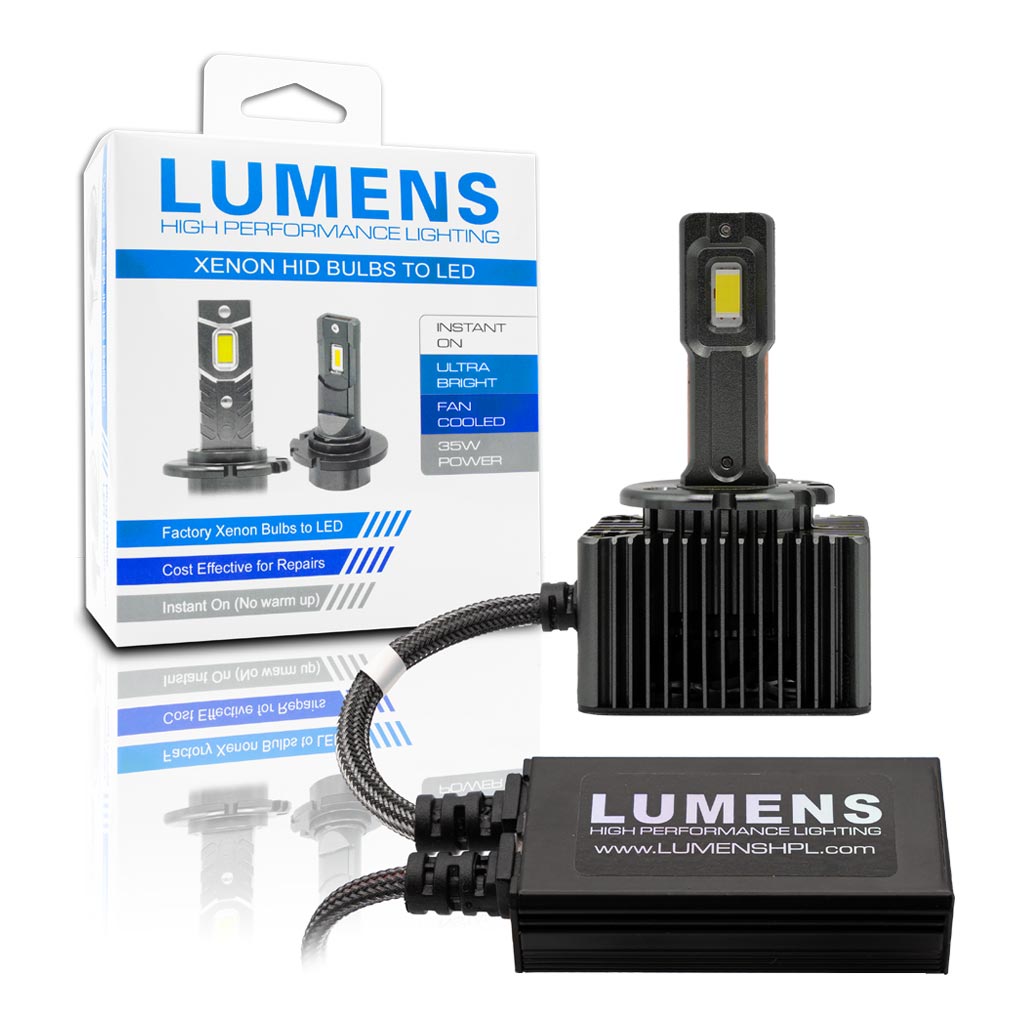

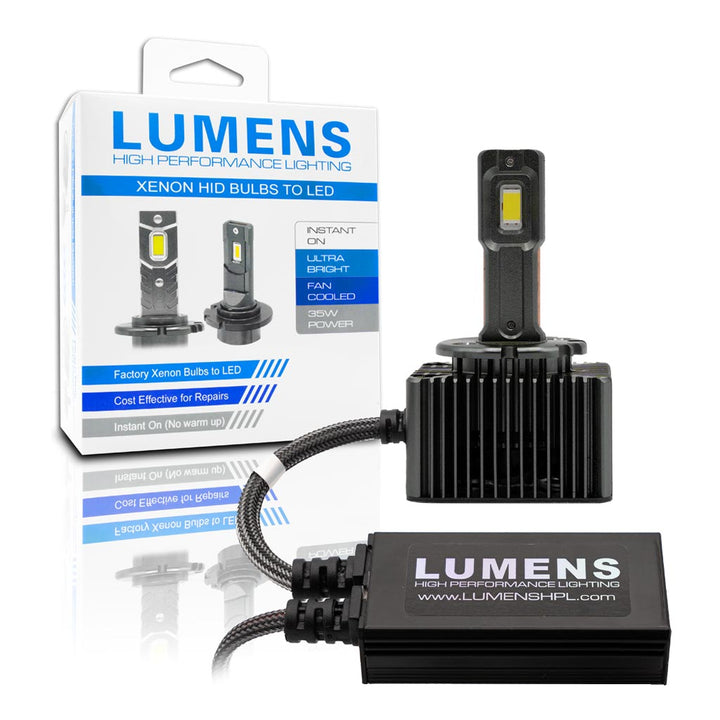

F06D1V2 - Primary by LUMENS High Performance Lighting (HPL)
D1 / D3 / D8 12V LED Bulb - Type 1 - Bypass Ballast - 6000K (each) by LUMENS HPL

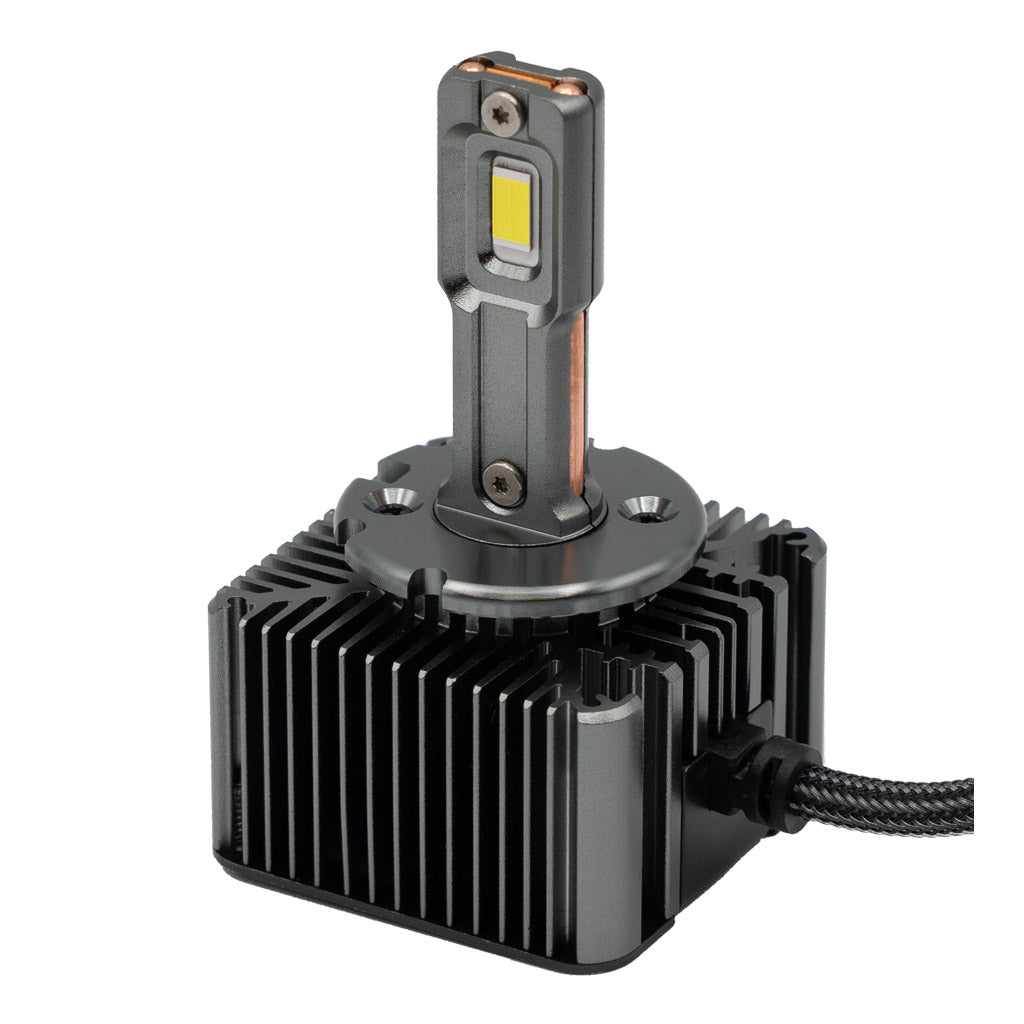

F06D1V2 - Close_up by LUMENS High Performance Lighting (HPL)

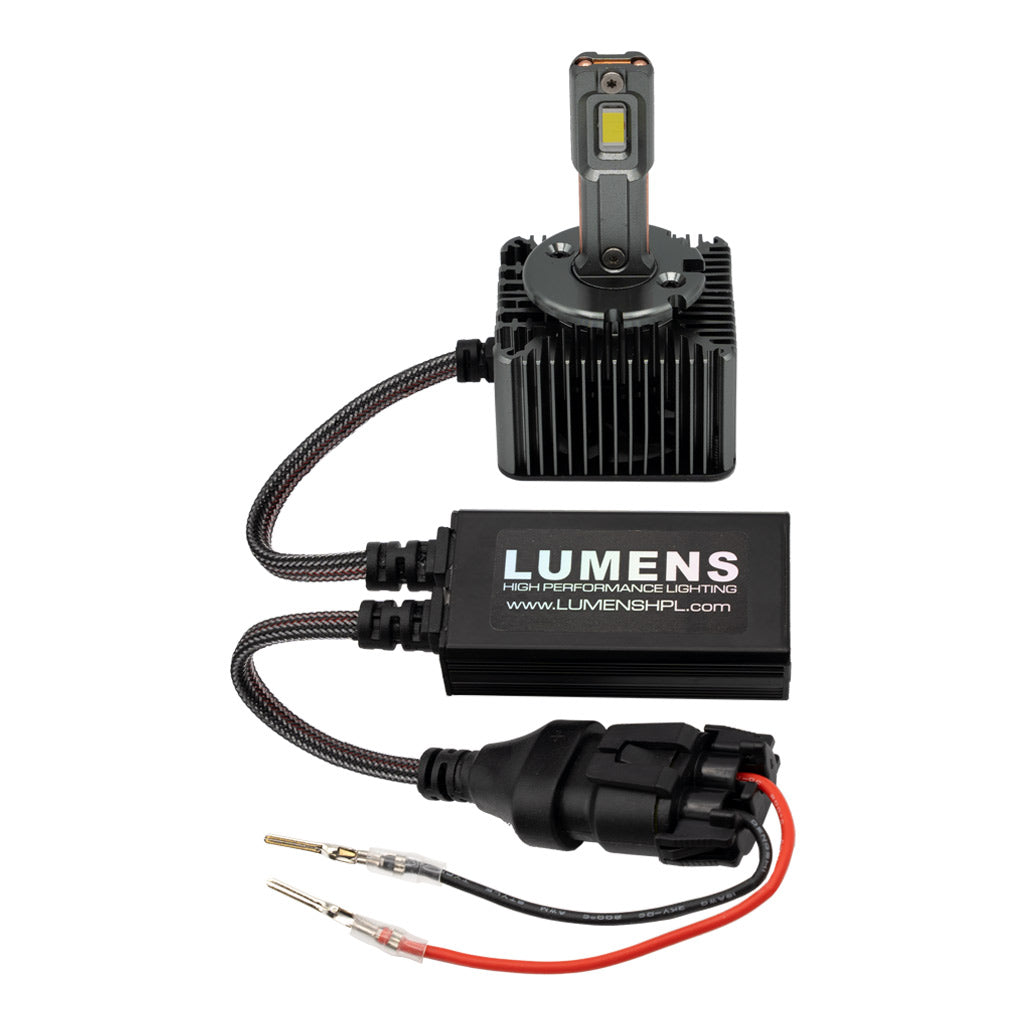

F06D1V2 - Out_of_package by LUMENS High Performance Lighting (HPL)

D1 / D3 / D8 12V LED Bulb - Type 1 - Bypass Ballast - 6000K (each) by LUMENS HPL

F06D1V2

Regular price $119.99 CAD Save $-119.99
24 in stock

**Note: This item is sold individually (each) for vehicles that only require 1 piece (motorcycles, snowmobiles, ATVs, etc). Should you need a pair, be sure to change the QTY at checkout to 2.

Features:

  • Converts D1S / D1R / D3S / D3R / D8S Factory HID Xenon systems to LED technology.
  • The main advantage of switching to LEDs from OE Xenon would be the cost savings of not having to purchase new ballasts, bulbs, and possibly igniters.
  • One unit will replace ballast, igniter and bulb.
  • Simply tap in the positive and negative wire leads on the LED unit to the factory wires that feed the OE Factory ballast.
  • Leave the factory xenon ballast in the housing, as it may seal a hole in the headlight housing.
  • Because of the frequency difference in LEDs vs HIDs, HID lighting provides maximum distance output, but LEDs may be brighter.

Bulb Cross References:

  • D1R, D1S, D3R, D3S, D8S,

Specifications:

  • Body Construction Material: Aluminum 6030
  • Input Voltage (Max): 16 V
  • Input Voltage (Min): 9 V
  • LED Chip Model: TX-3570
  • Color Temperature: 6000 K
  • Total Raw Light Output: 7000 lm
  • Total Power: 65 W
  • IP Rating: IPX6
  • EMC (Reduction in radio noise): YES

Warranty:

  • 1 Year Limited Warranty
