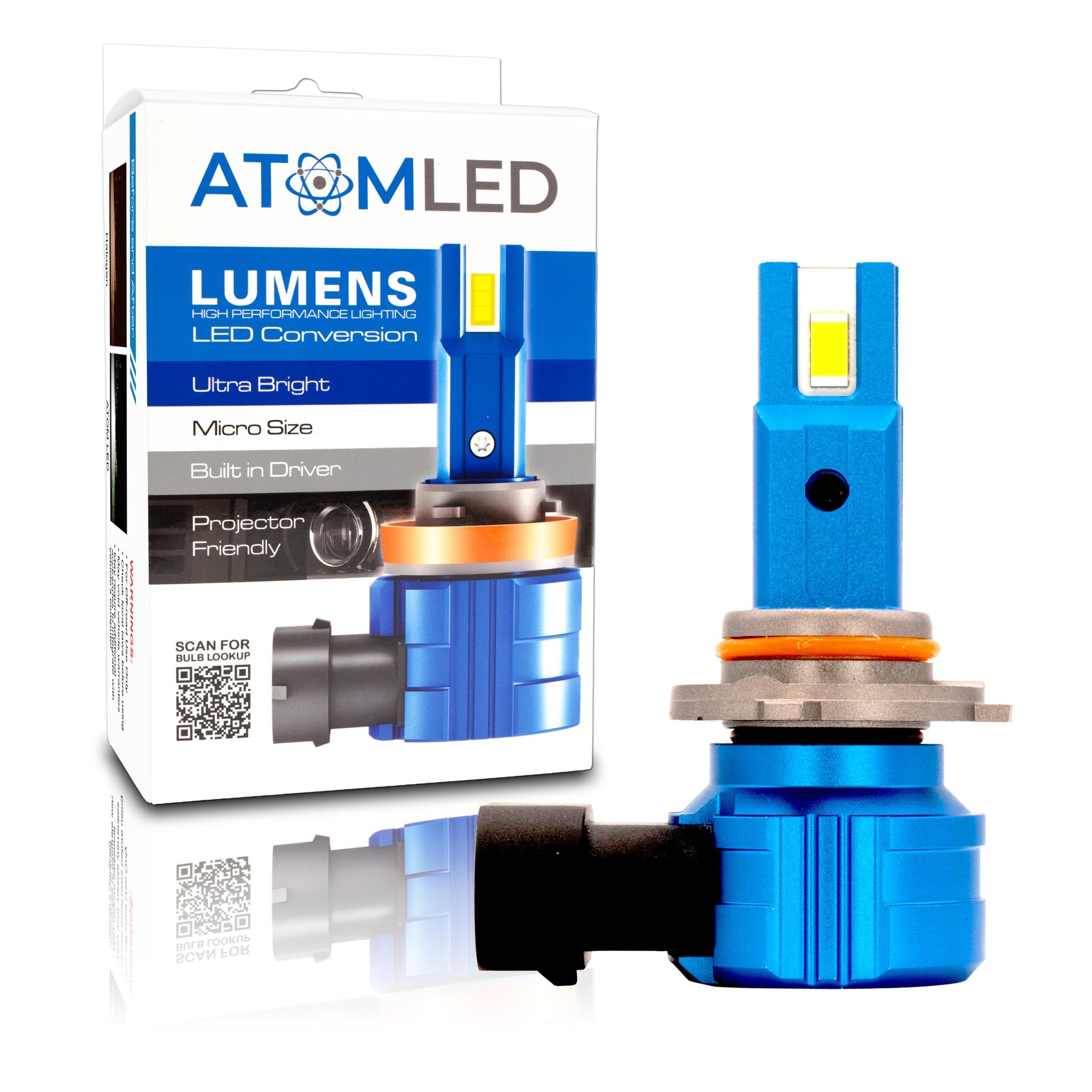

AB9005CW - Primary by LUMENS High Performance Lighting (HPL)
AB9005CW - Measurement1 by LUMENS High Performance Lighting (HPL)

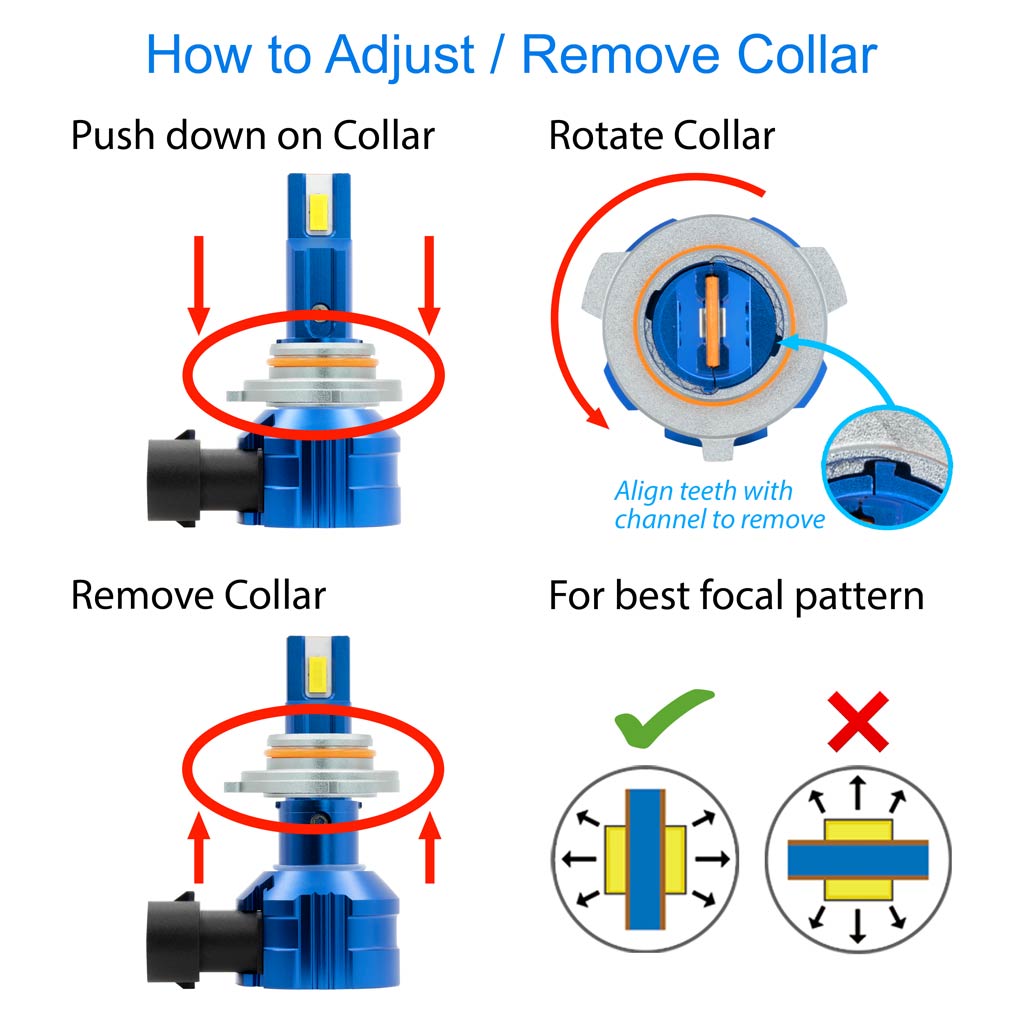

AB9005CW - Technical by LUMENS High Performance Lighting (HPL)

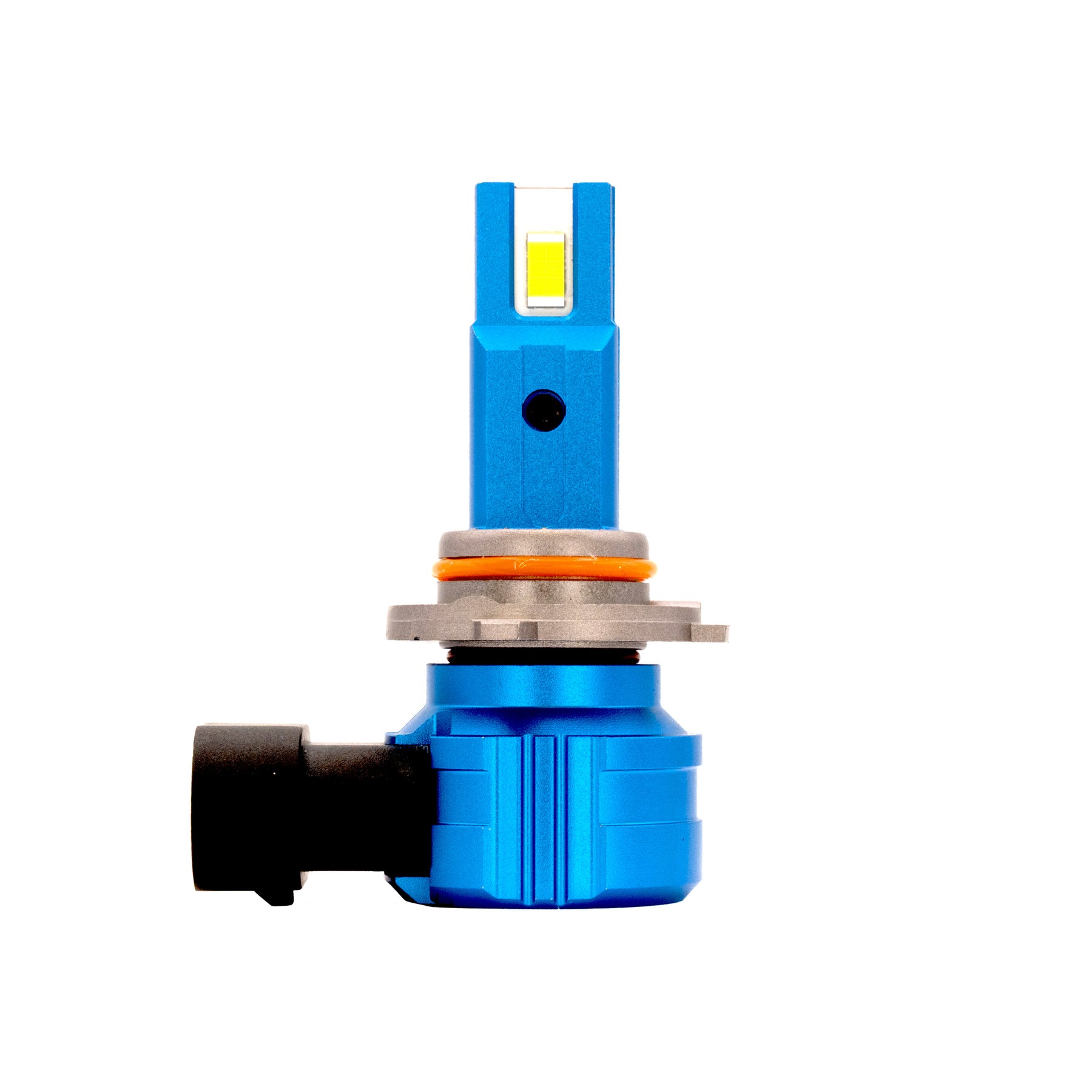

AB9005CW - Front by LUMENS High Performance Lighting (HPL)

9005 / H10 ATOM LED Bulb - White (Each)

AB9005CW

Regular price$49.99
/
Shipping calculated at checkout.

Important Note
  • Additional parts may be required. Please use our vehicle lookup tool to see if any additional parts will be required for your application. If your vehicle isn't listed, you can reach out to us via our contact form .
  • This item is sold individually (each) for applications requiring only one unit, such as motorcycles, snowmobiles, and ATVs. If a pair is required, please order a quantity of 2.

LUMENS HPL ATOM LED bulbs provide more than twice the brightness of standard halogen bulbs in a compact design that closely matches the size of the original bulb. With the LED driver integrated into the bulb, there are no external driver boxes to mount, helping simplify installation and reduce fitment issues in tight headlamp assemblies. A fanless aluminum body provides passive cooling with no fans or moving parts, while integrated thermal protection helps protect the LEDs from excessive heat. EMC circuitry helps minimize radio interference, and dual-polarity circuitry simplifies installation by allowing either polarity at the bulb connection. ATOM LEDs are designed for use in both projector and reflector headlamp assemblies and can be clocked to fine-tune the LED orientation and beam pattern.

  • Input Voltage DC (Max): 18 V
  • Input Voltage DC (Min): 6.5 V
  • LED Chip Model: 7035
  • Color Temperature: 6000 K
  • Total Raw Light Output: 3000 lm
  • Total Power: 17 W
  • Body Construction Material: Aluminum
  • Reverse Polarity Capable: YES
  • Constant Current: YES
  • EMC (Reduction in radio noise): YES
  • 9005
  • 9040
  • 9045
  • 9055
  • 9140
  • 9145
  • 9155
  • H10
  • HB3
  • HIR1

1 Year Limited Warranty
