Does not require controller box. Will require on / off toggle switch (not included). Optional momentary switch may be used if it will be necessary to change flash patterns after install.
Available Colors: Amber, Blue, Green, White, White/Amber, and Blue/Amber
Specifications:

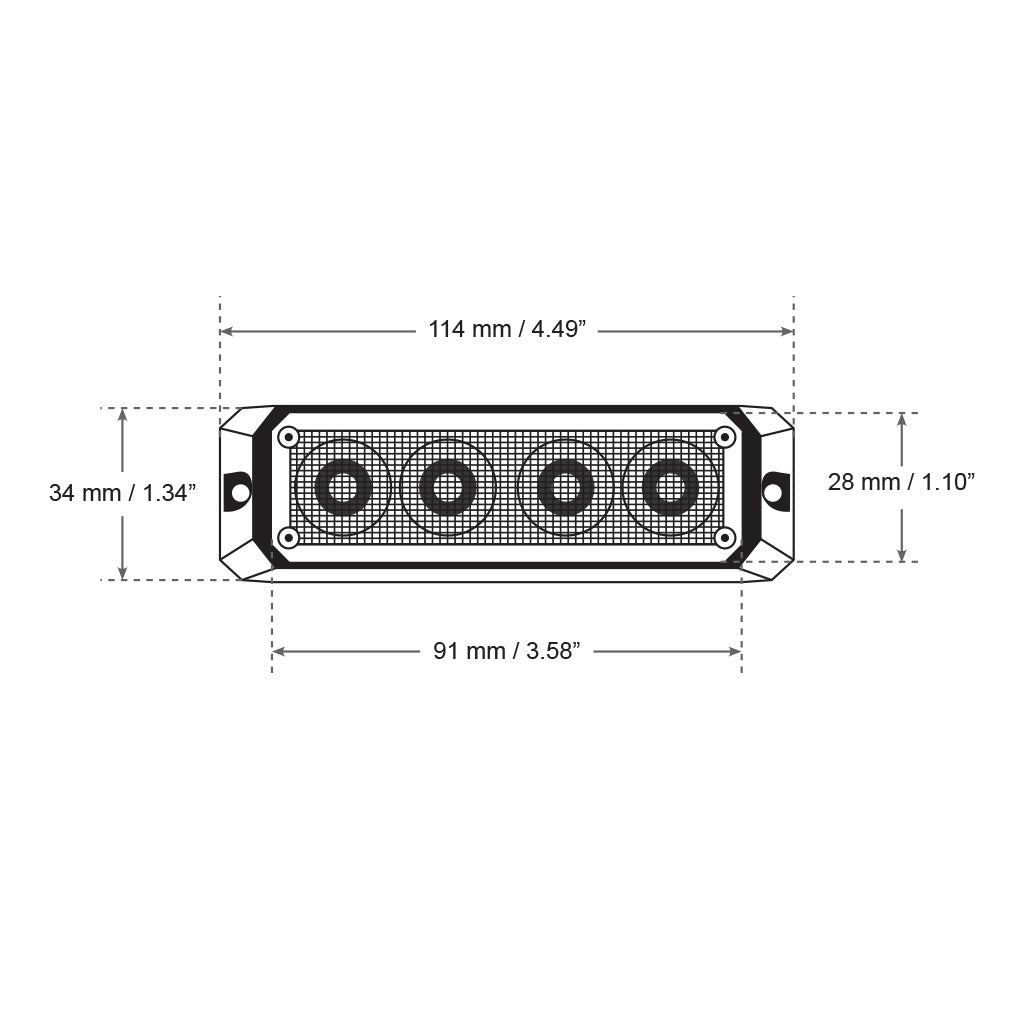

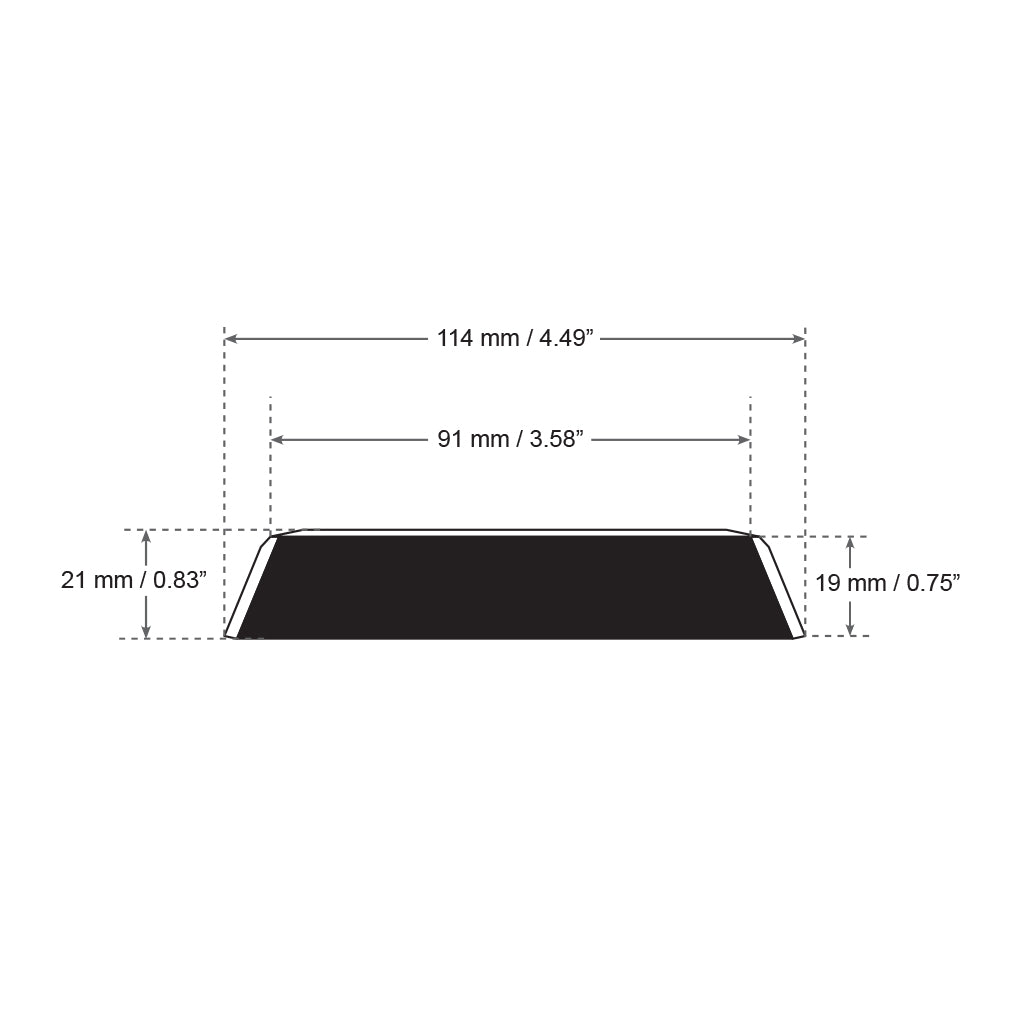

Casing Dimensions: 114mm x 34mm x 21mm (length x height x depth) Case Material: Poly Carb with Aluminum Base Length of Wire: 20cm Lens Material: Polycarbonate IP Rating: 65 Voltage: 12V-24V Power: 12W Average Current Draw: 500mA Max Current Draw: 700mA Flash Patterns: 16
5 Wire System:
Red: Positive
Black: Ground
White: Negative Signal for 1 sec to change flash pattern. Hold for 5 sec to change to steady burn (LEDs on without flashing)
Blue: Wig Wag (when 2 separate light heads have this wire joined, they will alternate when the light is on and off)
Yellow: Synchronize
