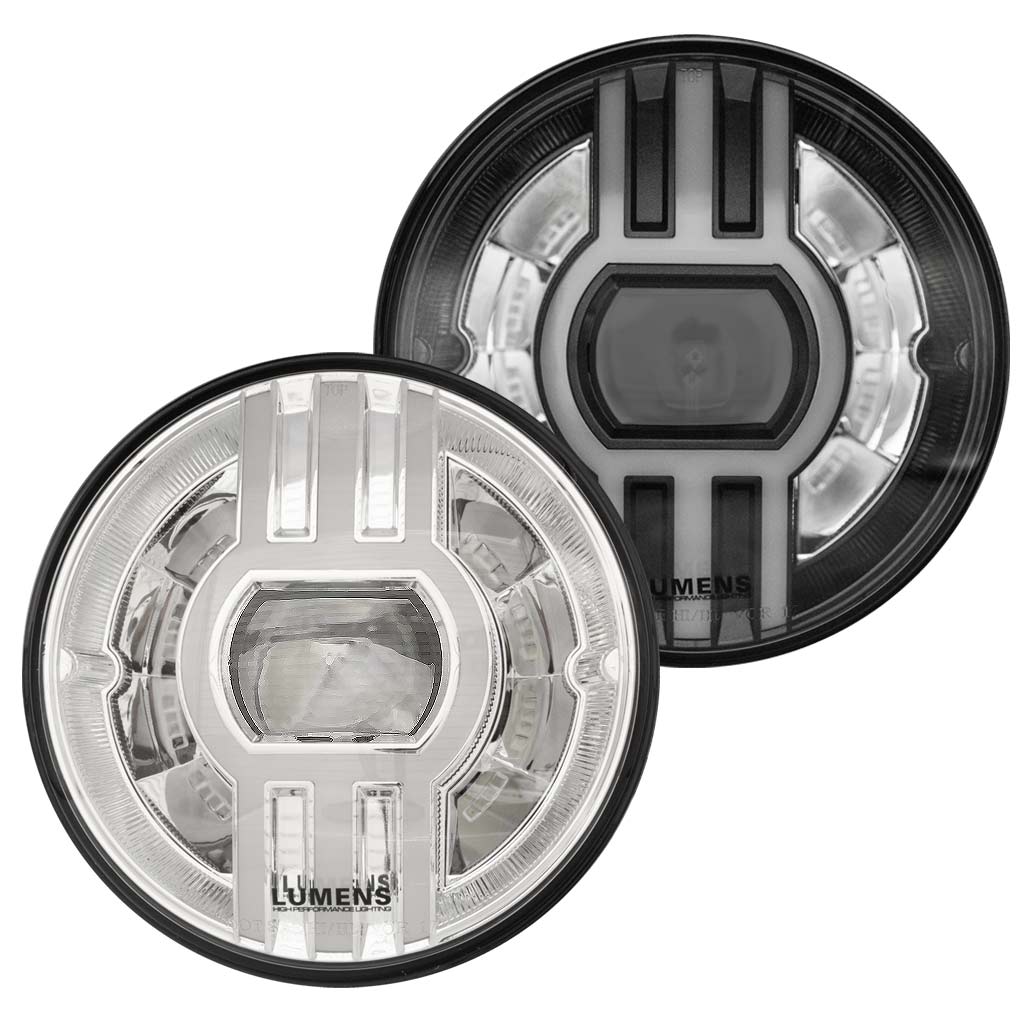

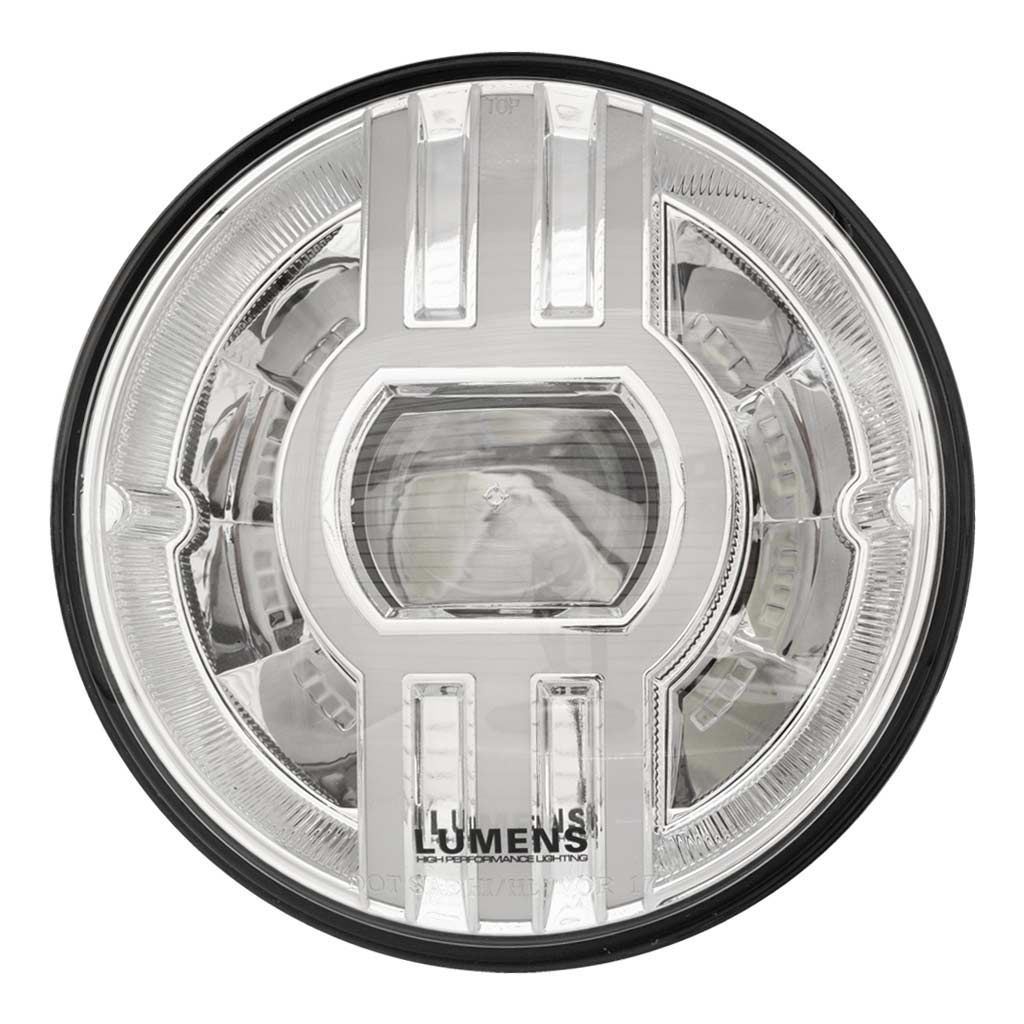

7in DOT LED Projector Sealed Beam - Chrome (Each)
SLD7DOTCH
Important Note
- If the vehicle's original headlamp circuit also functions as a daytime running light (DRL), the SLDHH4 harness is required for proper operation. In some applications, an RES3 resistor may also be required.
- Some Harley-Davidson motorcycle applications require the SLD7BRAK adapter for proper installation.
LUMENS HPL DOT approved LED sealed beam headlights provide a direct LED replacement for compatible traditional sealed beam units. Integrated LED chips and projector optics work together to provide effective light distribution and a controlled beam pattern for improved forward illumination. The complete LED assembly replaces the original sealed beam unit, providing instant full brightness, lower power consumption, and a modern white light appearance. Designed and tested to meet applicable DOT requirements for light output and beam pattern, these sealed beam headlights provide a straightforward LED upgrade for compatible vehicle applications.
Features:
- Replaces 7" Round Sealed Beams and Headlight Housings
- More than 3 times brighter than original sealed beam lights!
- Projector Lens provides the perfect beam pattern and light distribution
- Retains true low and high beam patterns
- Hard Coated Poly Carbonate Lens for increased durability
- Rugged Die-cast Aluminum Body
- Reduced radio interference with EMC circuitry

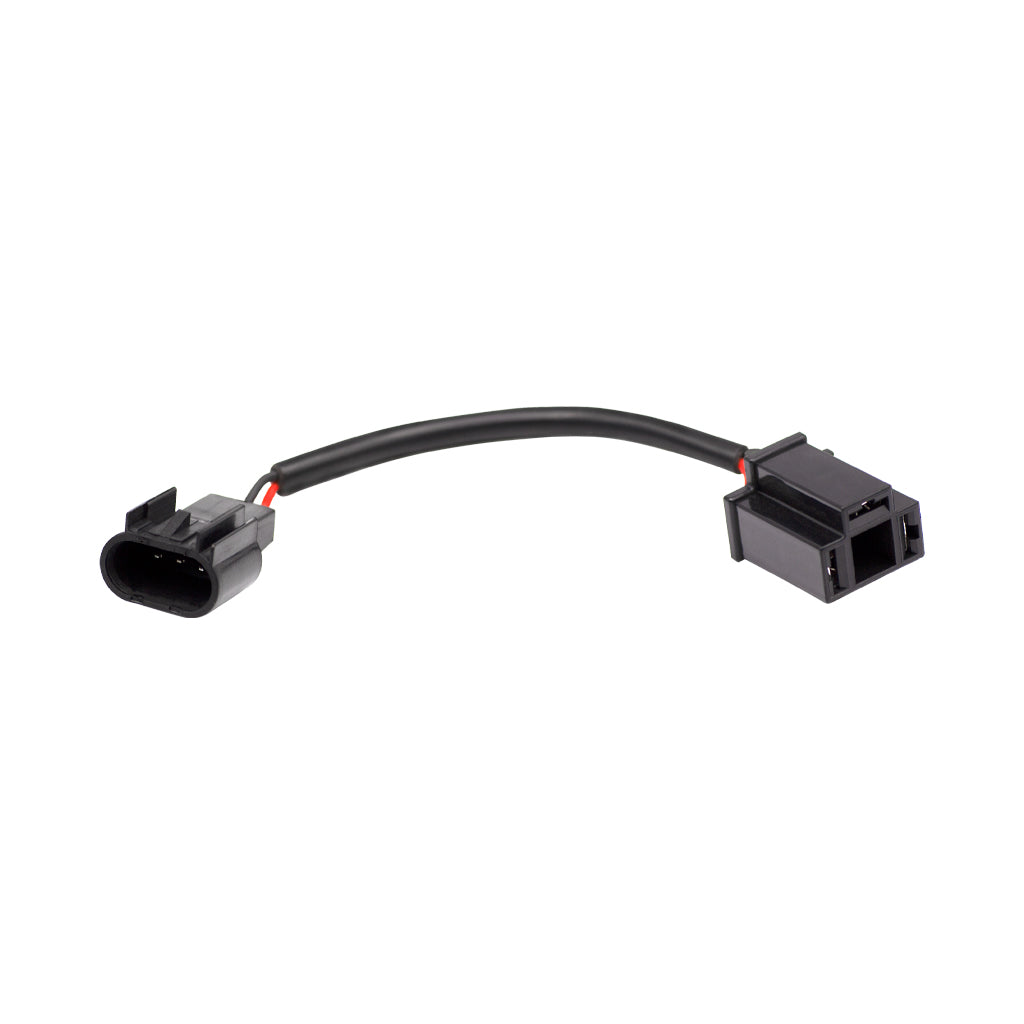

- Package includes H4 to H13 vehicle plug adapter
- DOT APPROVED: For vastly improved visibility at night, yet remaining street legal
- Body Construction Material: Aluminum (Die Cast)
- Lens Material: Polycarbonate
- Input Voltage (Max): 32 V
- Input Voltage (Min): 9 V
- Color Temperature: 6000 K
- Total Raw Light Output: 6000 lm
- High Beam Power: 60 W
- Low Beam Power: 30 W
- Total Power: 60 W
- IP Rating: IP67
- EMC (Reduction in radio noise): YES
- RoHS Compliant: YES
- DOT Approved: YES
- SAE Approved: YES
- 6012
- 6014
- 6015
- 6016
- H6014
- H6017
- H6024
1 Year Limited Warranty
