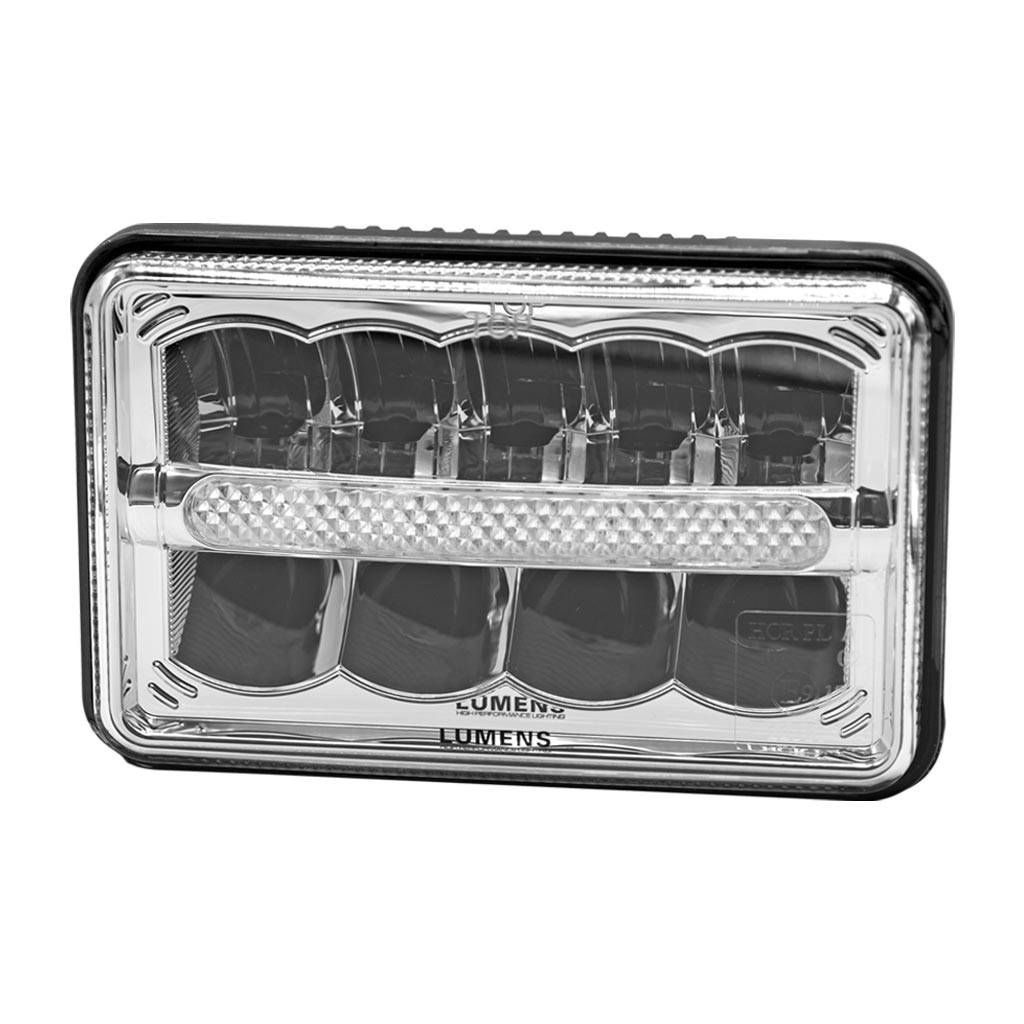

LED Sealed Beam 4 x 6" by LUMENS HPL

**Note: If sealed beam unit operates as a daytime running light (DRL), an additional harness will be required: SLDHH4

These LED sealed beam units provides substantially greater light output compared to traditional sealed beam units. Great for off-road industrial use. More economical than the DOT LED sealed beams, yet still offers a great driving beam pattern for low and high beams.

Features:

• Replaces 4" x 6" Sealed Beam Headlamps
• More than 3 times brighter than original sealed beam lights!
• Retains true low and high beam patterns
• Reflector Lens designed to work with LED chips to increase light output, and maintain proper focal patterns, without overly altering the conventional sealed beam look
• Hard Coated Poly Carbonate Lens for increased durability
• Rugged Die-cast Aluminum Body
• Reduced radio interference with EMC circuitry

Bulb Cross References:

• H4651
• H4652
• H4656
• H4662
• H4666
• H4668
• H4701
• H4703
• H6545

Specifications:

• Body Construction Material: Aluminum Alloy
• Lens Material: Polycarbonate
• Input Voltage (Max): 32 V
• Input Voltage (Min): 9 V
• Color Temperature: 6000 K
• High Beam Raw Light Output: 2400 lm
• Low Beam Raw Light Output: 2000 lm
• High Beam Power: 24 W
• Low Beam Power: 20 W
• Total Power: 24 W
• E-Mark Approved: YES
• IP Rating: IP67
• EMC (Reduction in radio noise): YES
• RoHS Compliant: YES
• Warranty: 1 Yrs
